Chapter 13 Built-in Analog Function
13.7 Operation Parameter Setting
Built-in analog conversion module’s operation parameters can be specified through XG5000’s [I/O parameters].
(1) Settings
For the user’s convenience of D/A conversion module, XG5000 provides GUI (Graphical User Interface)
for parameters setting of D/A conversion module. Setting items available through [I/O parameters] on the
XG5000 project window are as described below in the table.
[I/O
parameter]
(a) Input parameter setting
Specify the following setting items necessary for the module operation.
1) Channel Enable/Disable setting
2) Input voltage (current) range
3) Output data format setting
4) Filter constant setting
5) Average processing method setting
6) Average value setting
7) Hold last value setting
(b) Output parameter setting
Specify the following setting items necessary for the module operation.
1) Channel Enable/Disable setting
2) Output (voltage∙ current) range
3) Input data format setting
4) Channel output status setting
5) Interpolation method setting
6) Interpolation time
(c) When the parameters set by user in XG5000 is downloaded, that data is saved in flash
memory of motion controller.
(2) [I/O Parameter] Using method
(a) Run XG5000 to create a project.
(Refer to XG5000 program manual for details on how to create the project)

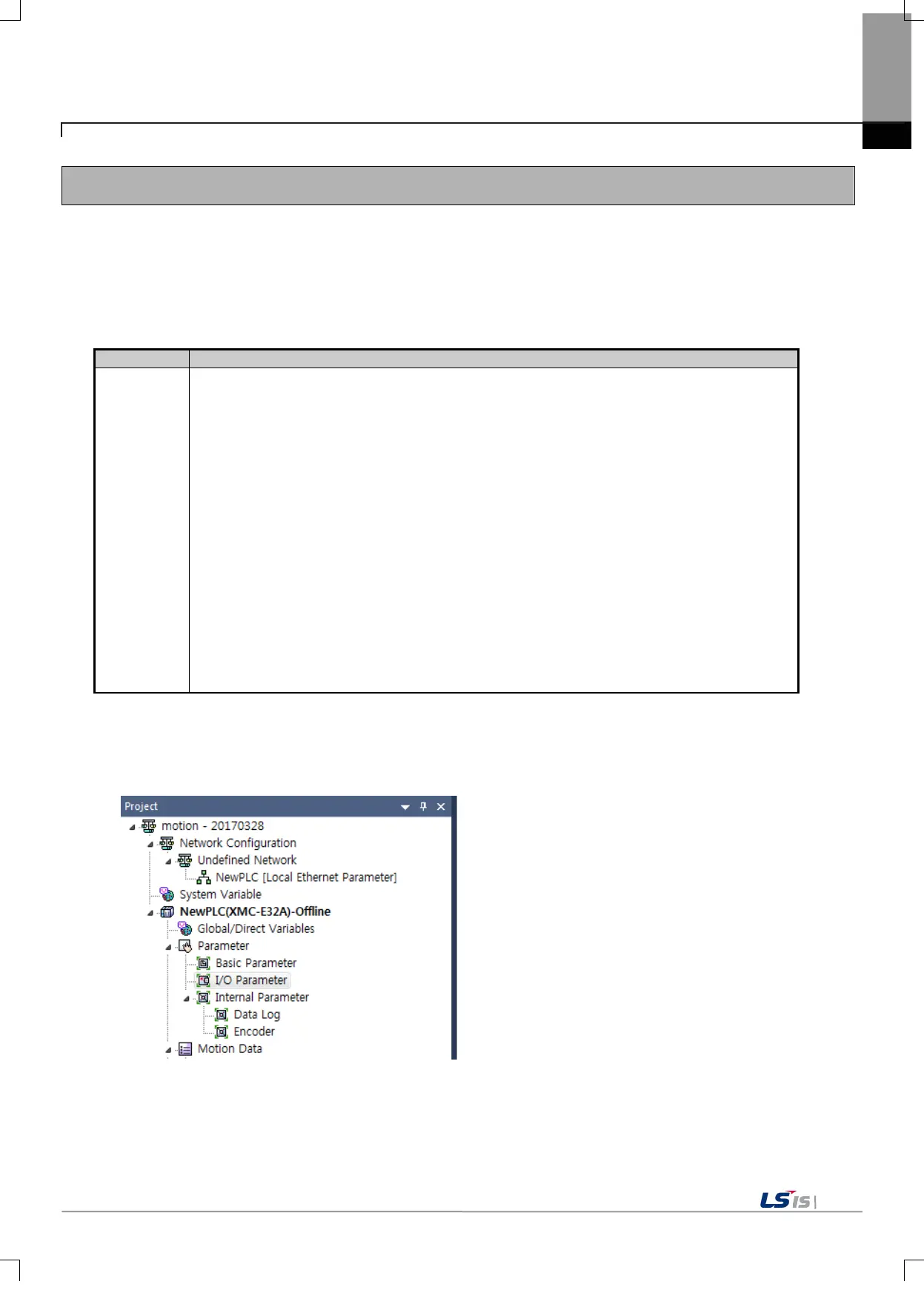

(b) Double-click [I/O parameters] on the project window.
To Next Page
