Chapter 11 Datalog Function
11.1.2 Part Names

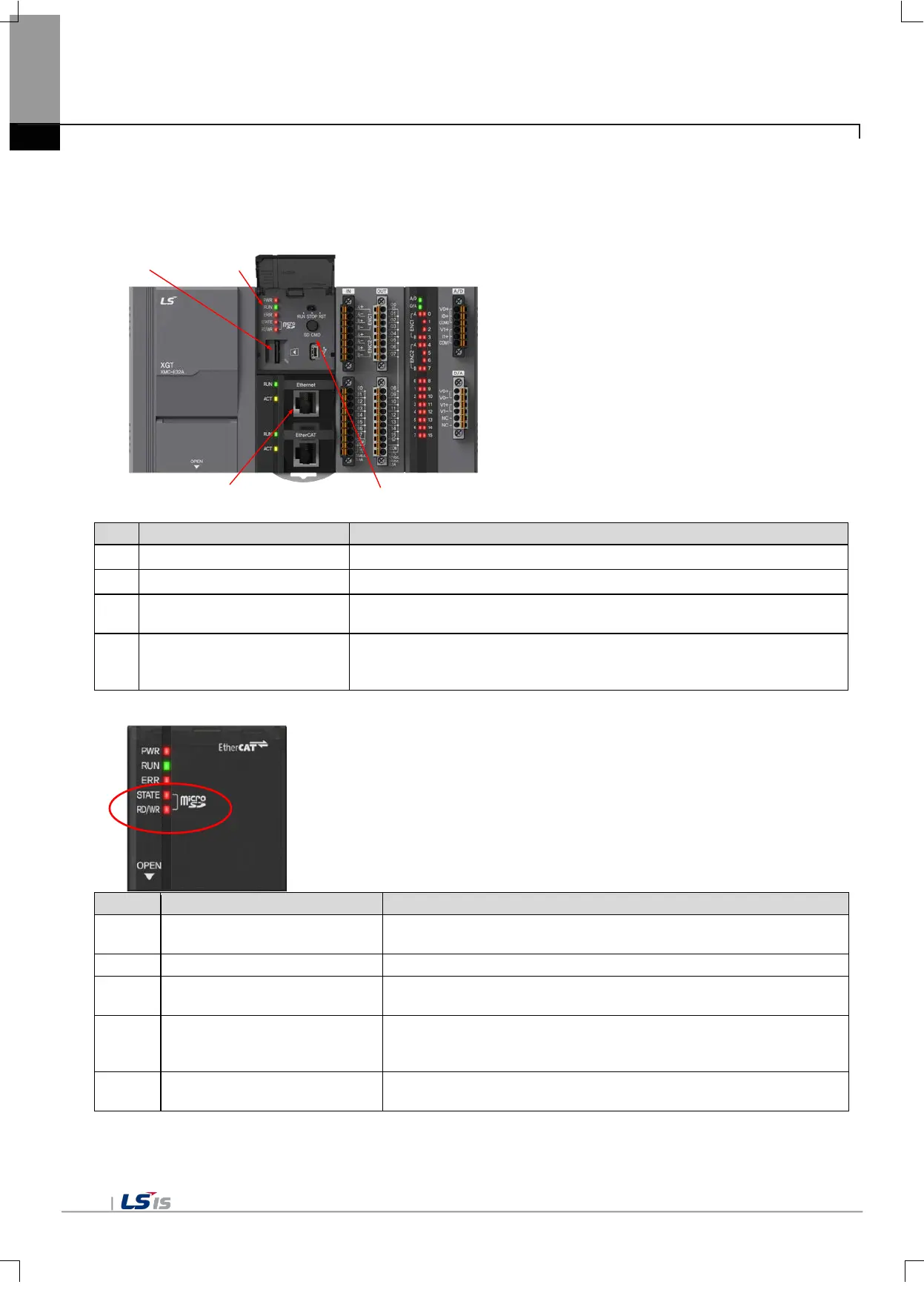

The names of pars related to datalog function are as follows.
(1) Part names
â‘
Indicates run status of SD memory and datalog.
â‘¡
A slot where SD memory is mounted.
â‘¢
Internal Ethernet Port
The port is used when transmitting files using the FTP function of the
internal Ethernet.
â‘£
SD CMD Button
It is used for SD PWR ON, OFF or SD additional functions
• Push the button for 0.7[sec] ~ 3[sec] : SD additional function
• Push the button above 3[sec] : SD PWR ON, OFF
(2) LED Indications
PWR
Indicates motion controller
power supply status
Turns on during power ON.
Indicates motion controller run
Turns on during RUN, and turns off at STOP, ERR.
ERR
Indicates motion controller
error status
Flashes when error occurs
STATE
Indicates the status of SD
memory mounted.
Turns on : SD card mounted, status normal
Flashes : SD card mounted, error occurred (flashes at 2s interval)
Turns off: SD card removed
RD/WR
Indicates SD card control
status
Flashes : Reading or writing SD card (flashes at 100ms interval)
Turns off : Access to SD card terminated
