7.4.4 CAM Operation

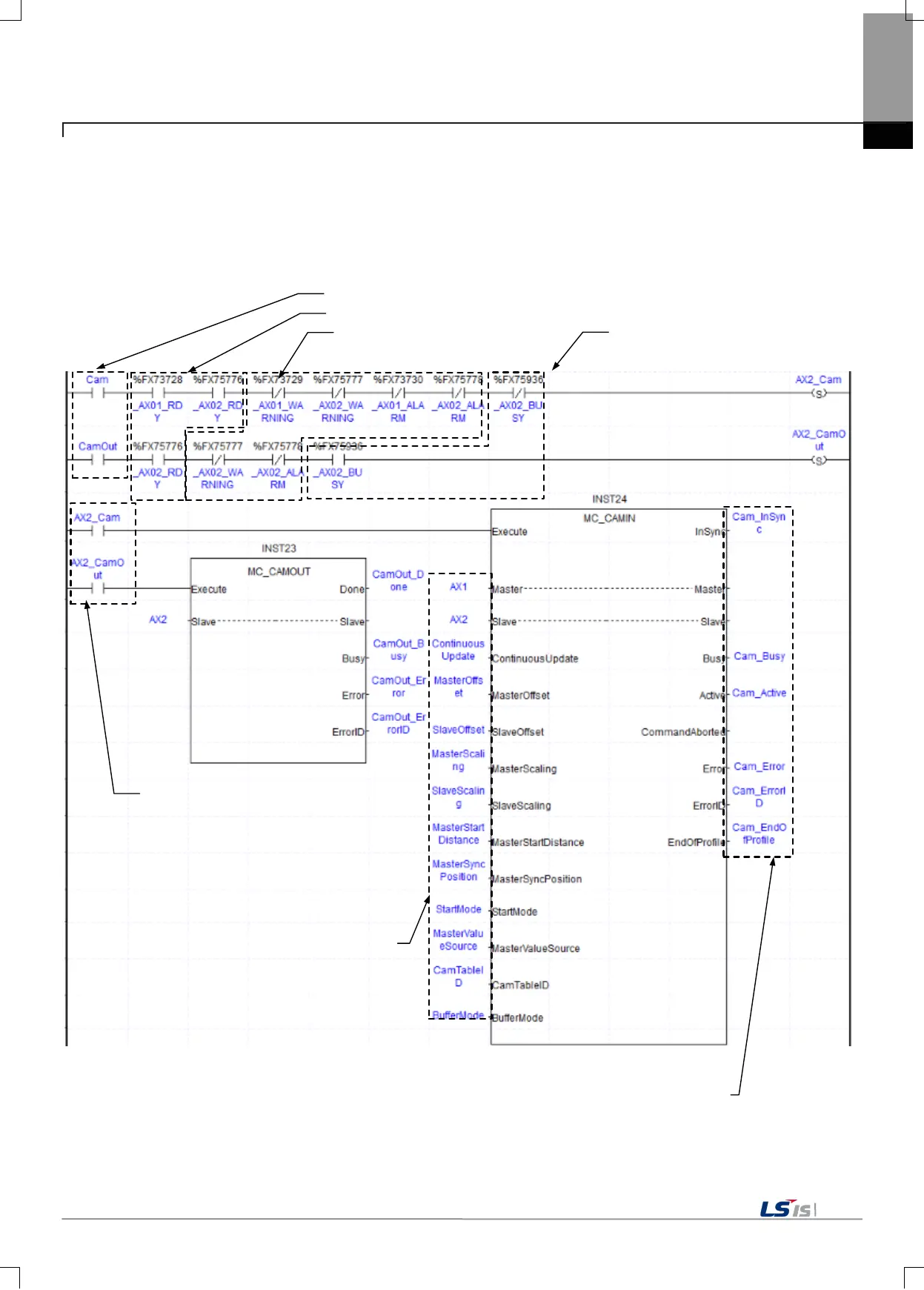

It is an example program on the cam operation that moves in synchronization based on cam (CAM) profile in which serve axis is set.
(1) Command condition
(2) Axis connection status
(4) Axis operation status
(5) 2 axis cam operation/
Cam operation cancellation commands
(6) Cam operation command input variables
- Main axis
- Slave axis
- Changes in parameter during operation
- Main axis offset
- Slave axis offset
- Main axis magnification
- Slave axis magnification
- Cam operation starting point
- Distance of main axis
for starting cam operation
- Main axis data selection for cam operation
- Cam table number
- Buffer mode
(7) Cam operation command output variables
- Cam operation
- Function block in execution
- The axis group being controlled by function block
- Error occurrence state
- Error number
(3) Axis error/warning status
