Chapter 11 Datalog Function
11-32

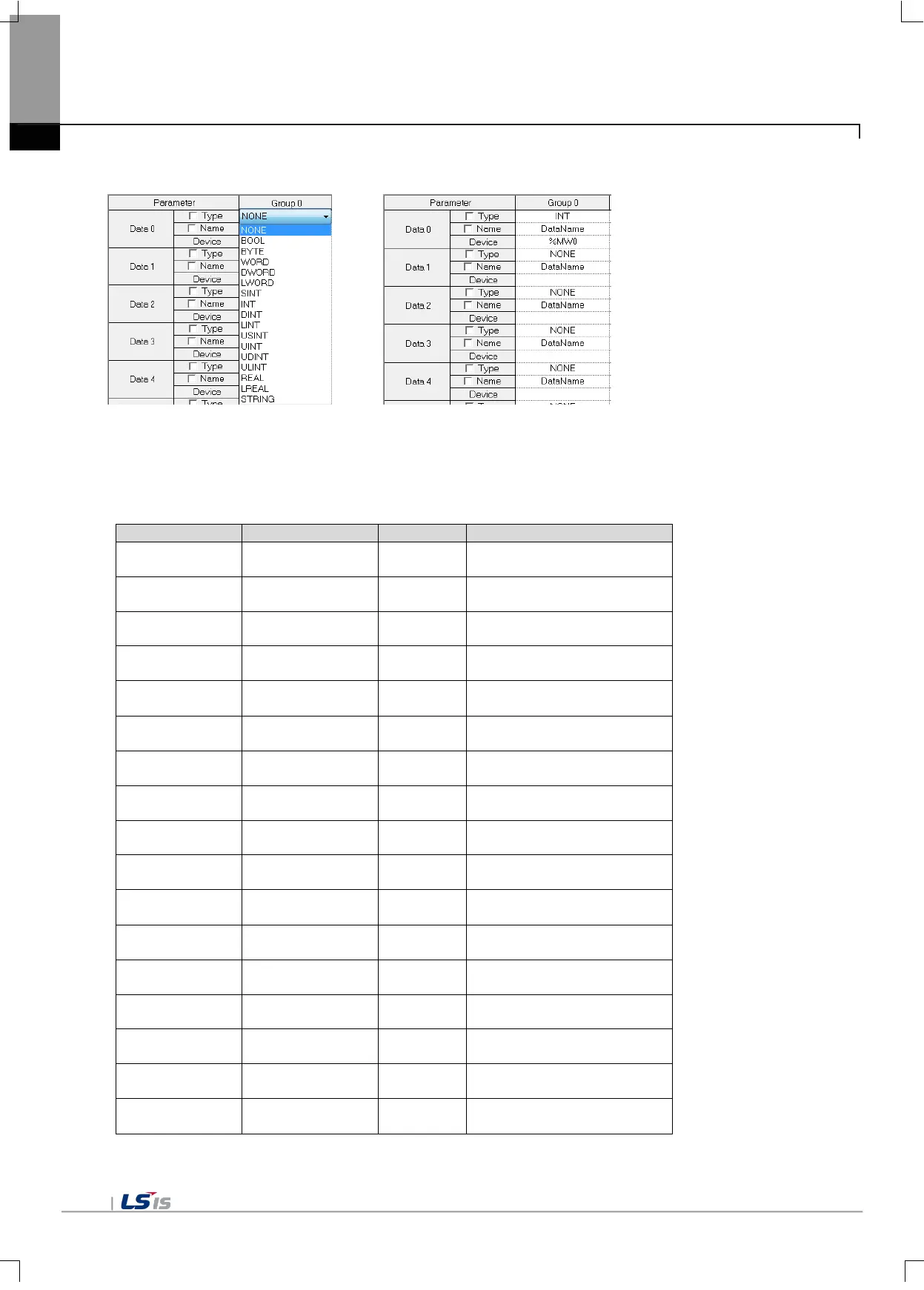

(e) Set the data conversion type, storage device and name
(f) Connect the SD memory card, and turn on the Datalog Enable Flag (%KW8224) when the _DL_Rdy(%KX8800)
Flag is On to activate the function. Datalog will not be activated if the Enable Flag is ON while _DL_Rdy(%KX8800)
Flag is OFF.
The following are Enable Flags for each datalog group
Item
Memory allocation
Type
Description
- %KW514 WORD Datalog Enable Flags
_DL00_Enable %KX8224 BOOL
Group 00 Enable Flag
1: Operation, 0: Stop
_DL01_Enable %KX8225 BOOL
Group 01 Enable Flag
1: Operation, 0: Stop
_DL02_Enable %KX8226 BOOL
Group 02 Enable Flag
1: Operation, 0: Stop
_DL03_Enable %KX8227 BOOL
Group 03 Enable Flag
1: Operation, 0: Stop
_DL04_Enable %KX8228 BOOL
Group 04 Enable Flag
1: Operation, 0: Stop
_DL05_Enable %KX8229 BOOL
Group 05 Enable Flag
1: Operation, 0: Stop
_DL06_Enable %KX8230 BOOL
Group 06 Enable Flag
1: Operation, 0: Stop
_DL07_Enable %KX8231 BOOL
Group 07 Enable Flag
1: Operation, 0: Stop
_DL08_Enable %KX8232 BOOL
Group 08 Enable Flag
1: Operation, 0: Stop
_DL09_Enable %KX8233 BOOL
Group 09 Enable Flag
1: Operation, 0: Stop
_DL10_Enable %KX8234 BOOL
Group 10 Enable Flag
1: Operation, 0: Stop
_DL11_Enable %KX8235 BOOL
Group 11 Enable Flag
1: Operation, 0: Stop
_DL12_Enable %KX8236 BOOL
Group 12 Enable Flag
1: Operation, 0: Stop
_DL13_Enable %KX8237 BOOL
Group 13 Enable Flag
1: Operation, 0: Stop
_DL14_Enable %KX8238 BOOL
Group 14 Enable Flag
1: Operation, 0: Stop
_DL15_Enable %KX8239 BOOL
Group 15 Enable Flag
1: Operation, 0: Stop
