LSIS XGT Series User Manual

Chapter 11 Datalog Function
11-91

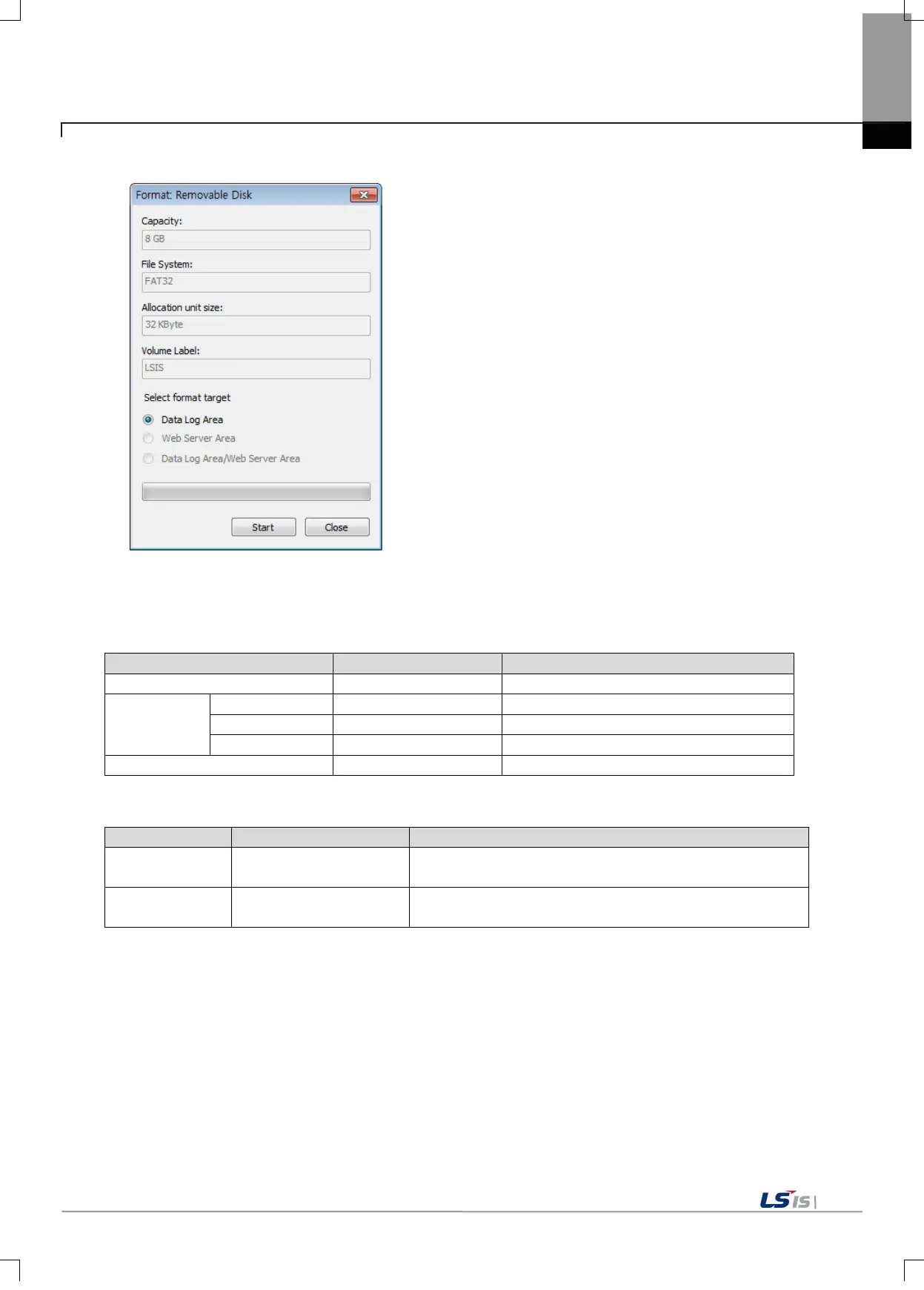

Ex) When a 8G memory is connected
(3) Formatting Complete and Error Codes
(a) Status Information
F Area Address
Flag Name
Description
%FW523
_SD_FmtInfo
SD memory formatting information
BOOL
%FX8368
_SD_FmtRun
SD memory formatting in progress
%FX8369
_SD_FmtDone
SD memory formatting complete
%FX8370
_SD_FmtNg
SD memory formatting failed
%FW524
_SD_FmtEcode
SD memory formatting error codes
(b) Error Code
Error Code
Error Name
Error Description
0x0001 SD Detachment
When the SD memory card is forcibly removed during SD
memory formatting
0x0002 File System Damage
When the file system is damaged during SD memory
formatting
