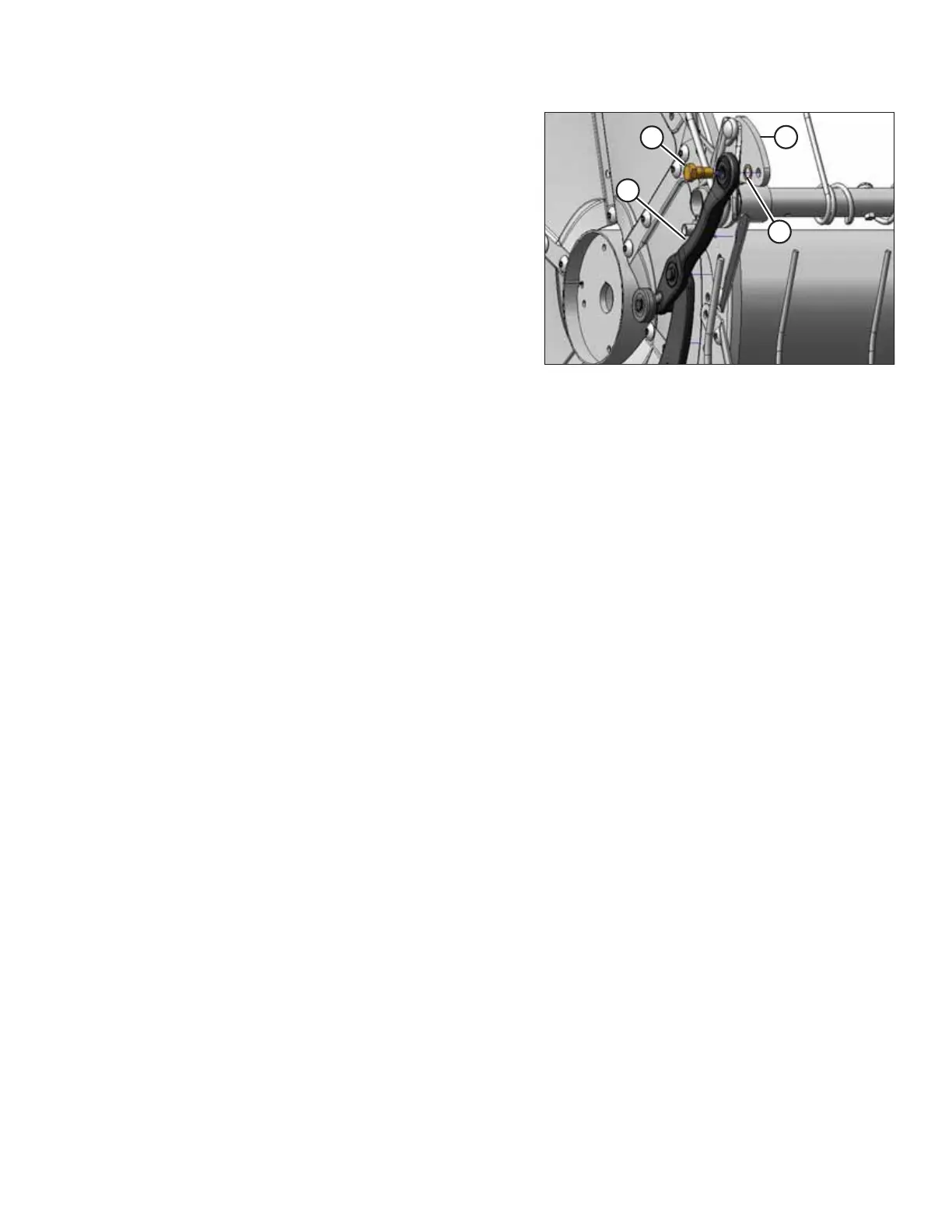

Figure 3.262: Link
5. Attach link (A) to tine bar crank (D) with shoulder bolt (B)
and shim (C). Place shim between link and tine bar crank.
Torque bolt to 165 Nm (120 lbf·ft).
