MacDon D1 Series - 7.1 AGCO (Challenger, Gleaner, and Massey Ferguson) Combines; 7.1.1 Attaching Header to an AGCO (Challenger, Gleaner, or Massey Ferguson) Combine

215184 205 Revision A
Chapter 7: Attaching Header to Combine
The procedures for attaching the header to a combine vary depending on the combine model. Refer to the following table
for the appropriate procedure:
Table 7.1 Combine Model Header Attachment Procedures
Combine
Refer to
AGCO Gleaner R and S Series;
Challenger 660, 670, 680B, 540C, and 560C;
Massey Ferguson 9690, 9790, 9895, 9520, 9540, and 9560
7.1 AGCO (Challenger, Gleaner, and Massey
Ferguson) Combines, page 205
AGCO IDEAL
™
7.2 AGCO IDEAL
™
Series Combines, page 213
Case IH 7010, 8010, 7120, 8120, 9120, 5088, 6088, 7088, 5130, 6130,
7130, 7230, 8230, and 9230
7.3 Case IH Combines, page 218
CLAAS 500, 600, and 700 (R Series)
7.4 CLAAS Combines, page 224
John Deere 60, 70, S, and T Series 7.5 John Deere Combines, page 229
New Holland CR and CX 7.6 New Holland Combines, page 244
IMPORTANT:
Ensure applicable functions (automatic header height control [AHHC], Draper Header Option, Hydraulic Center-Link Option,
Hydraulic Reel Drive, etc.) are enabled on the combine and in the combine computer. Failure to do so may result in
improper header operation.
7.1 AGCO (Challenger, Gleaner, and Massey Ferguson) Combines
7.1.1 Attaching Header to an AGCO (Challenger, Gleaner, or Massey Ferguson)
Combine
WARNING
To avoid injury or death from unexpected start-up of machine, always stop the engine and remove the key from the
ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
1001486
B
A

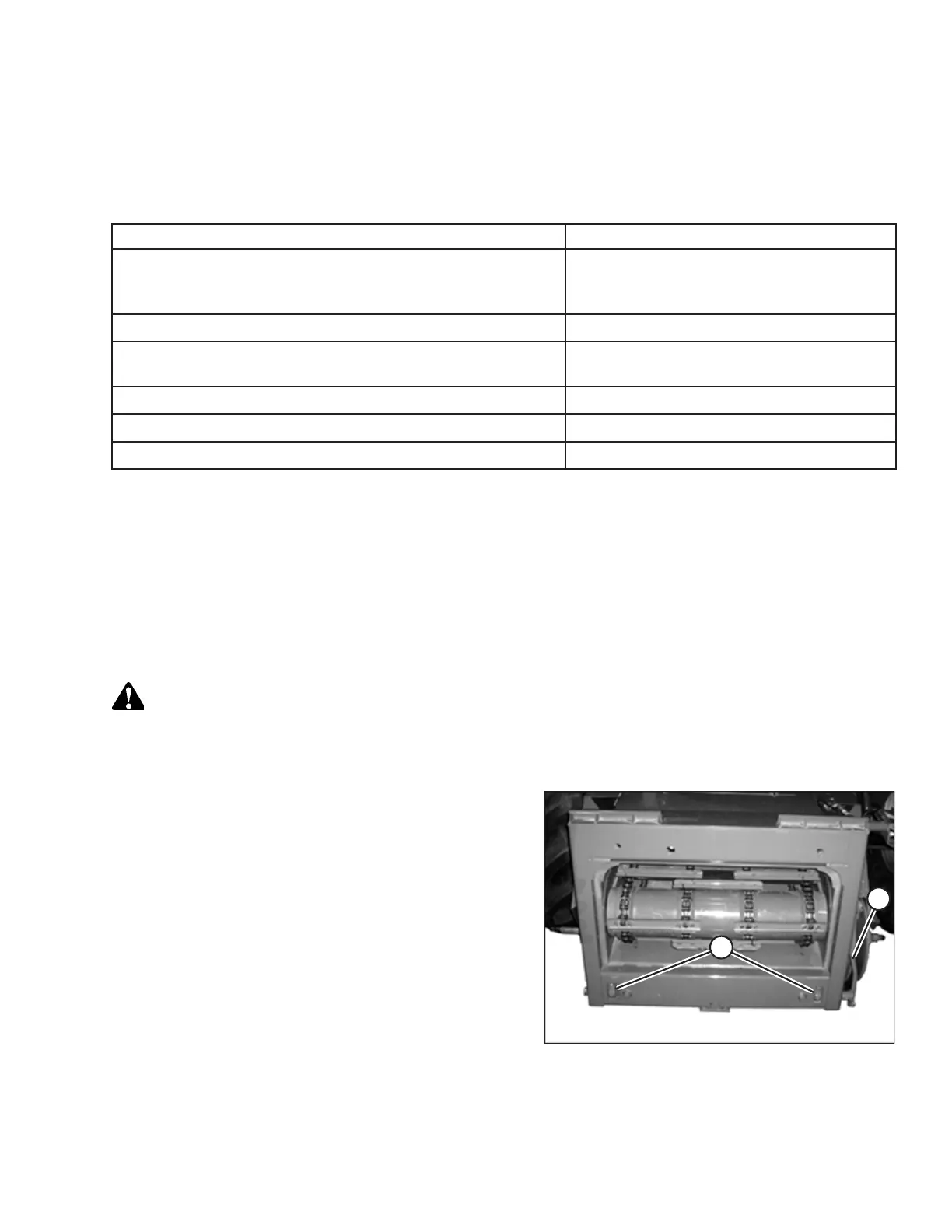

Figure 7.1: AGCO Group Feeder House
2. Use lock handle (B) to retract lugs (A) at the base of the
feeder house.
