5.3 Unloading with Two Forklifts
WARNING
Equipment used for loading and unloading must meet or exceed the minimum specified requirements. Using
inadequate equipment may result in vehicle tipping, machine damage, or chain breakage.
For minimum lifting equipment requirements, refer to 12.3 Lifting Equipment Requirements, page 515.

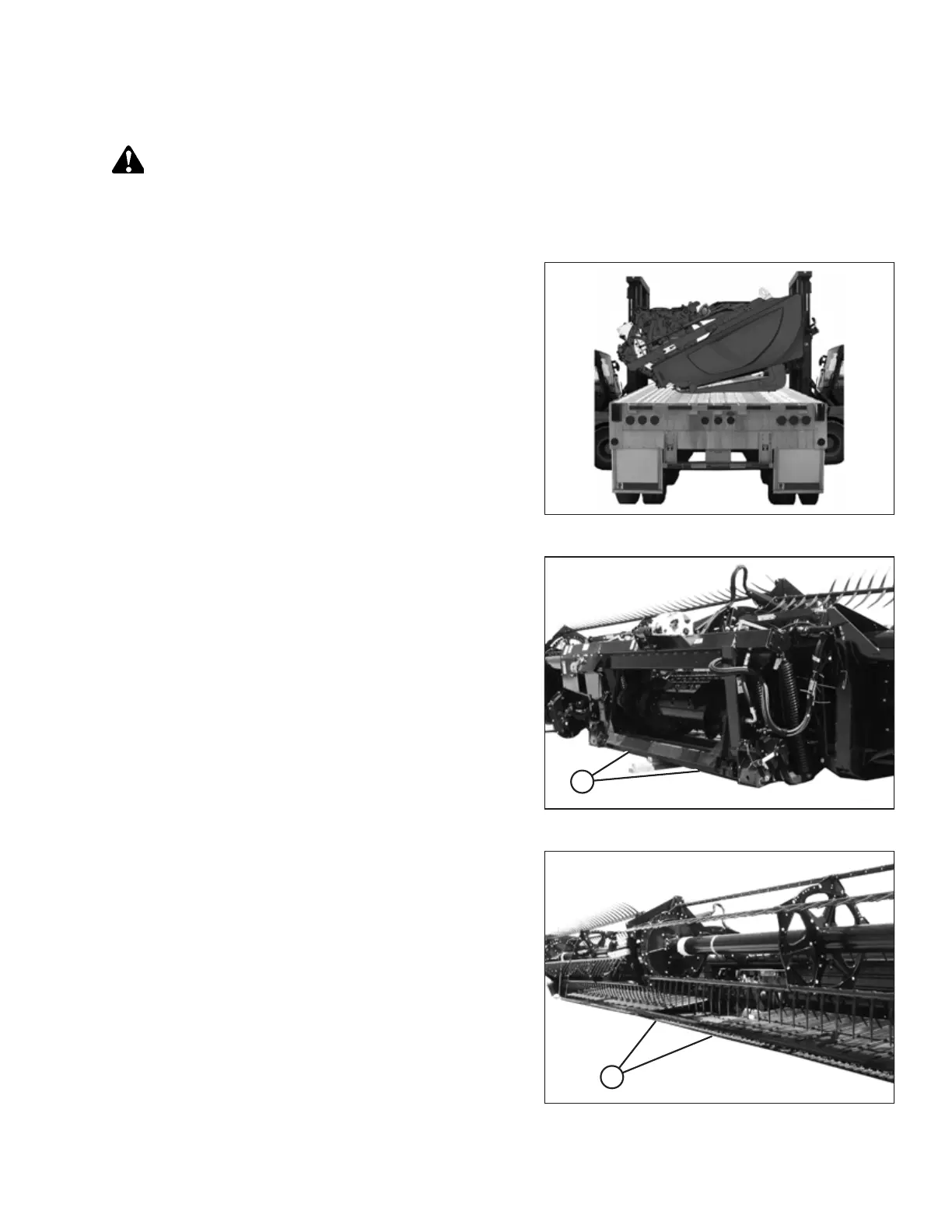

Figure 5.10: Two Forklifts
1. Position trailer to provide access by forklifts on both sides.
2. Approach header from both sides.
Figure 5.11: Forks under Float Module
3. With one forklift, position forks underneath float module’s
lower beam structure (A).
Figure 5.12: Forks under Cutterbar
4. With the second forklift, position forks under cutterbar (A).
UNLOADING HEADER AT DEALER
