3.2 Assembling 12.2 m (40 ft) Header (Split Frame)
Perform all procedures in this section in the order in which they are listed.
Continued from 2.4 Lowering Header, page 16.
3.2.1 Unpacking Header
1016746
B
A

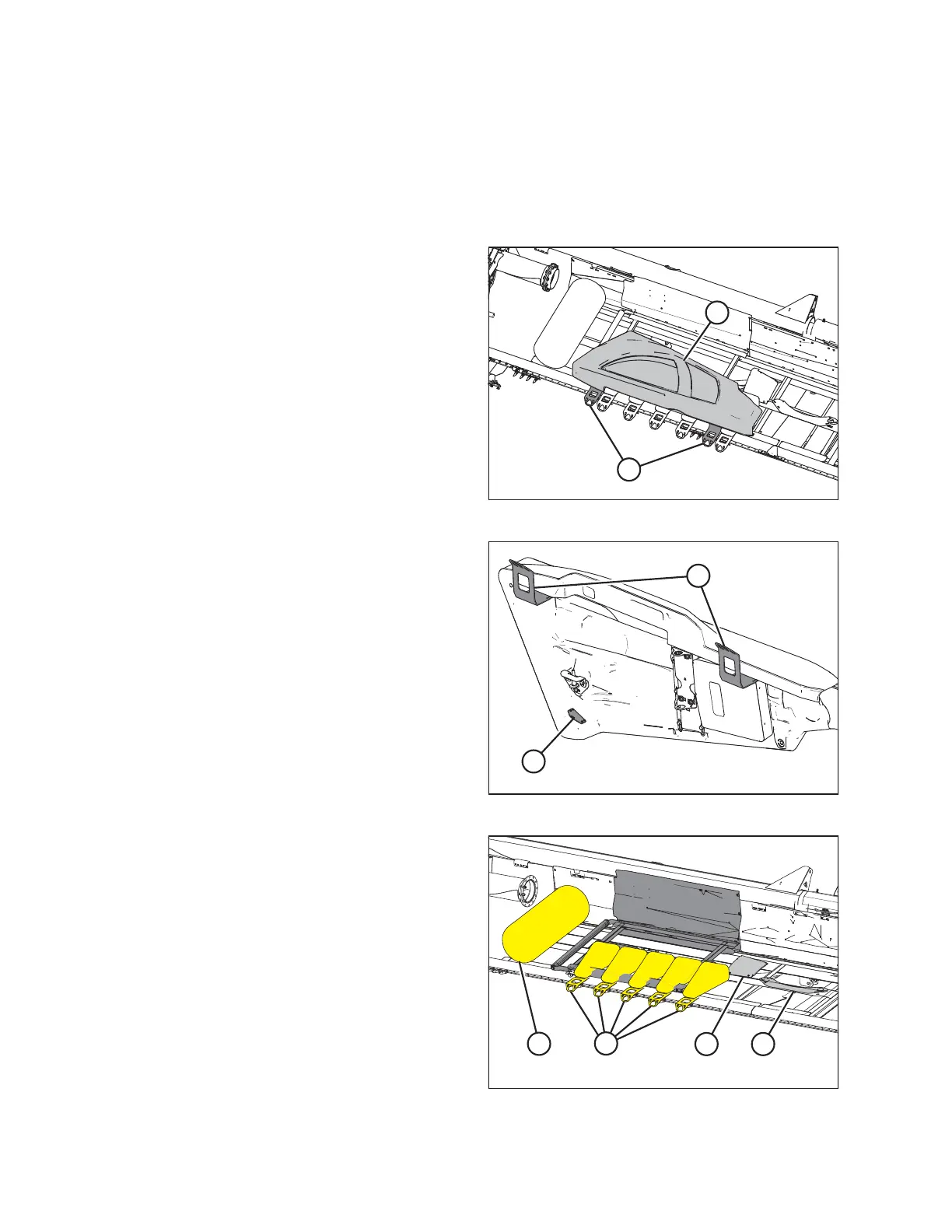

Figure 3.48: Endshield Shipping Location
1. Remove shipping wire securing left endshield (A) to frame.
2. Remove left endshield and brackets (B) from cutterbar.
1016756
A
A
Figure 3.49: Endshield Shipping Brackets
3. Remove hardware securing the shipping brackets (A) to the
inside of left endshield and discard brackets.
1008984
A
B
C
D
Figure 3.50: Loose Parts
4. Remove shipping wire securing hardware bags to cutterbar
guards (A) and remove bags. Remove clips from bags and
discard clips.
NOTE:
Do NOT install hardware or parts from bags until instructed
to do so. Refer to 12.1 Parts List, page 499 for bag
contents.
5. Remove shipping wire or strapping from draper bag (B), and
set aside for installation.
6. Remove right outboard skid shoe (C) and set aside for
installation.
7. Remove reel endshields (D) from deck and set aside for
installation.
