215184 162 Revision A
5.5 Unloading with a Combine
Use this procedure to unload a header, shipped in the lowered position, with a combine.
This method assumes that the header was shipped with a fully-assembled float module and the shipping stands and
materials have been removed. For instructions, refer to 3 Assembling the Header and Float Module, page 21.
Ensure the correct combine float module configuration is installed and the appropriate combine is used to pick up the
header.
NOTE:

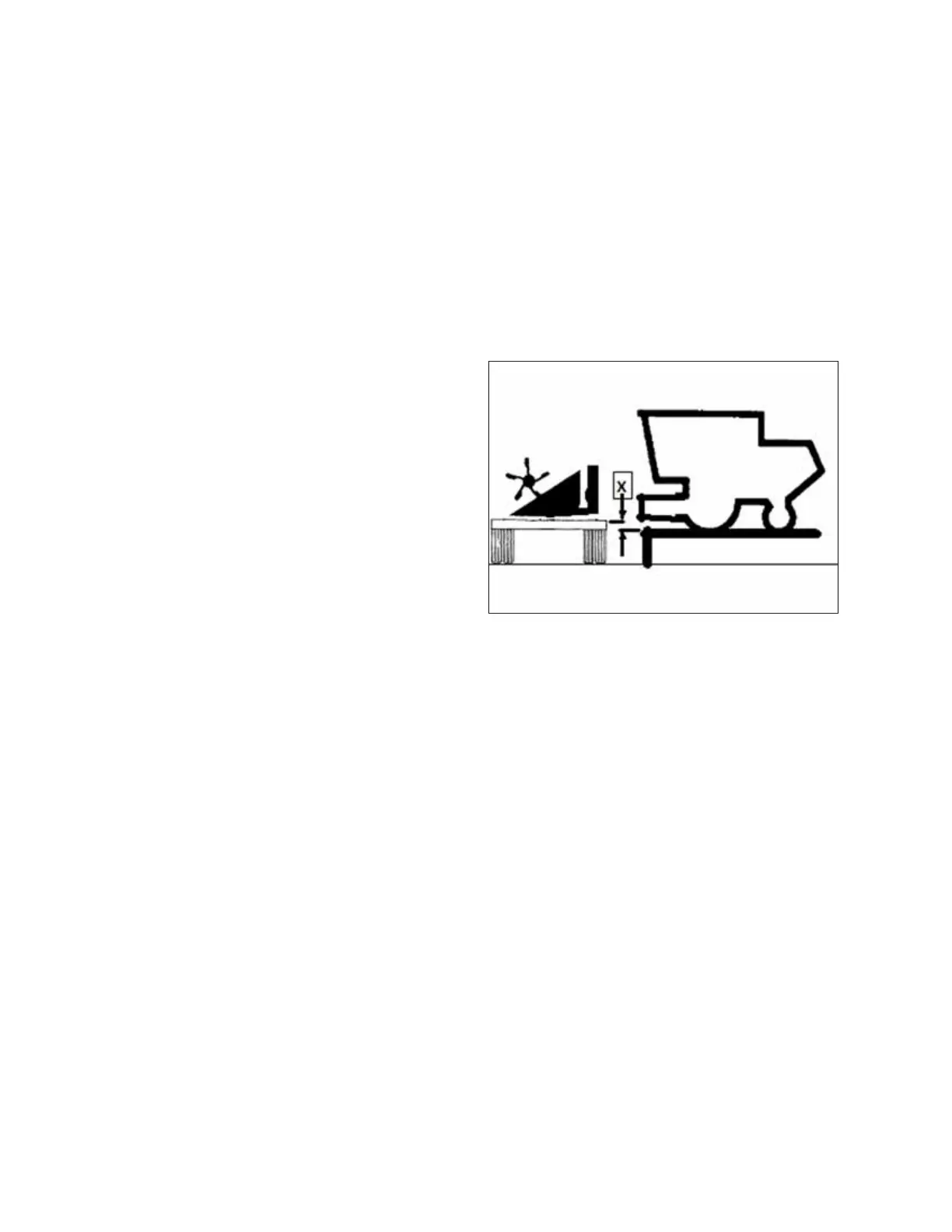

A maximum difference of 914 mm (36 in.) (dimension [X] in illustration below) in elevation between a standard or drop-
deck truck flatbed and the combine is required for the combine to lift the header off the truck (i.e., using a loading ramp).
This may vary with combine make and model.
Figure 5.16: Combine
1. Park truck next to, and at 90° to, the ramp, and with rear of
header on the ramp side. Align header pickup points with
center of ramp.
2. Lower trailer storage stands.
3. Remove hauler’s tie-down straps and chains.
4. Drive combine onto ramp and approach header.
NOTE:
If a suitable ramp is not available, a ditch or other ground
contour can provide the required difference in elevation.
5. Pick up header. For instructions, refer to 7 Attaching
Header to Combine, page 205.
NOTE:
The hydraulic, electrical, and driveline connections are not
required to unload the header.
6. Raise header off the flat deck and back combine away.
7. Take machine to storage or setup area.
8. Place 150 mm (6 in.) blocks under each end of cutterbar.
9. Lower header onto blocks.
10. Detach header from combine. For instructions, refer to the combine operator’s manual.
11. Check for shipping damage and missing parts.
12. Proceed to 5.6 Removing the Remaining Shipping Supports, page 163 .
UNLOADING HEADER AT DEALER
