2.4 Lowering Header
Reposition header in preparation for assembly and setup as follows:

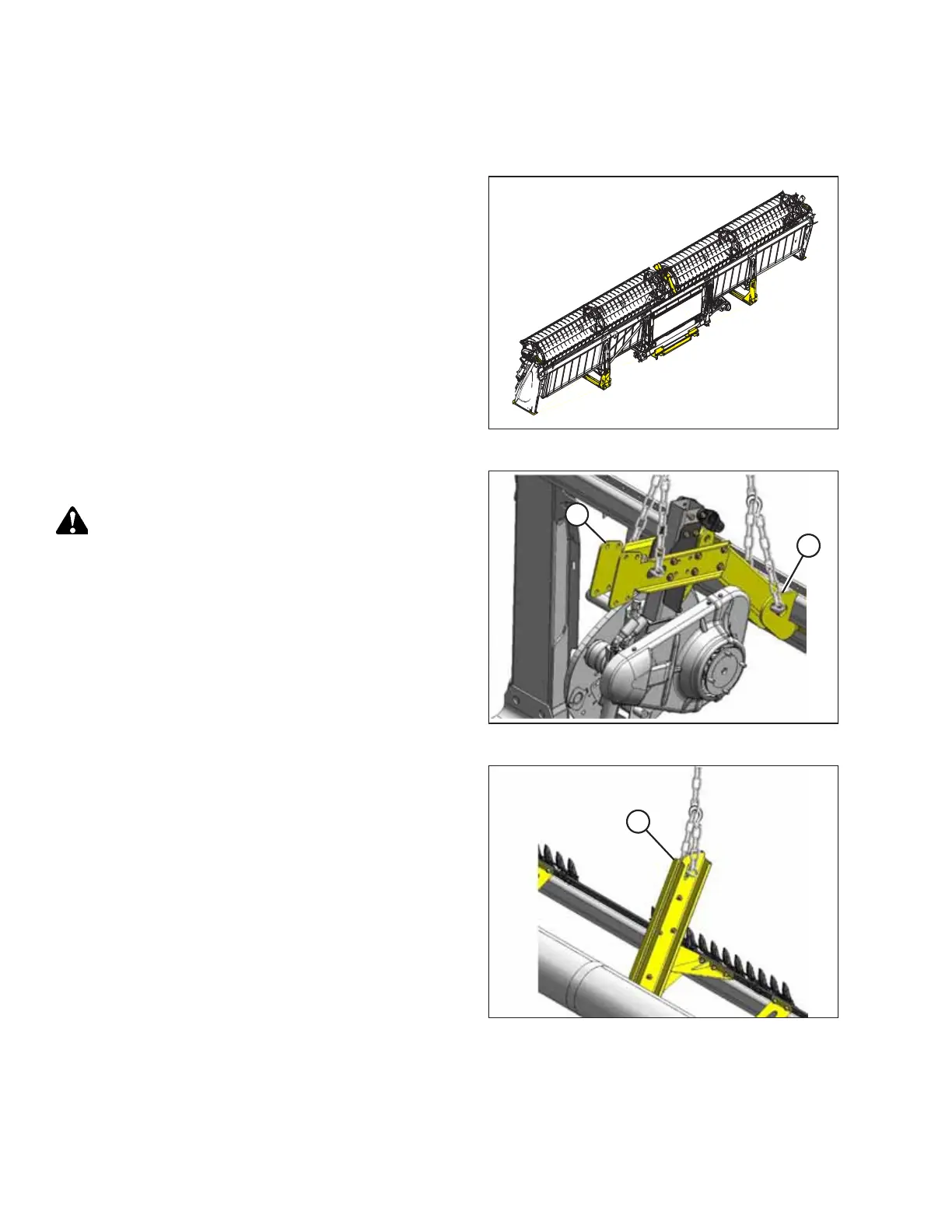

Figure 2.22: Underside of Header
1. Choose an area with level ground.
2. Drive lifting vehicle to approach header from its underside.
IMPORTANT:
Do NOT attempt to lift at cutterbar when unloading from
trailer. This procedure is ONLY for laying the machine over
into working position.
Figure 2.23: Double-Reel Header
Figure 2.24: Single-Reel Header
3. Attach chain to shipping support (A).
CAUTION
Stand clear of header when lowering. Machine may swing.
UNLOADING THE HEADER
