3.2.6 Assembling Draper

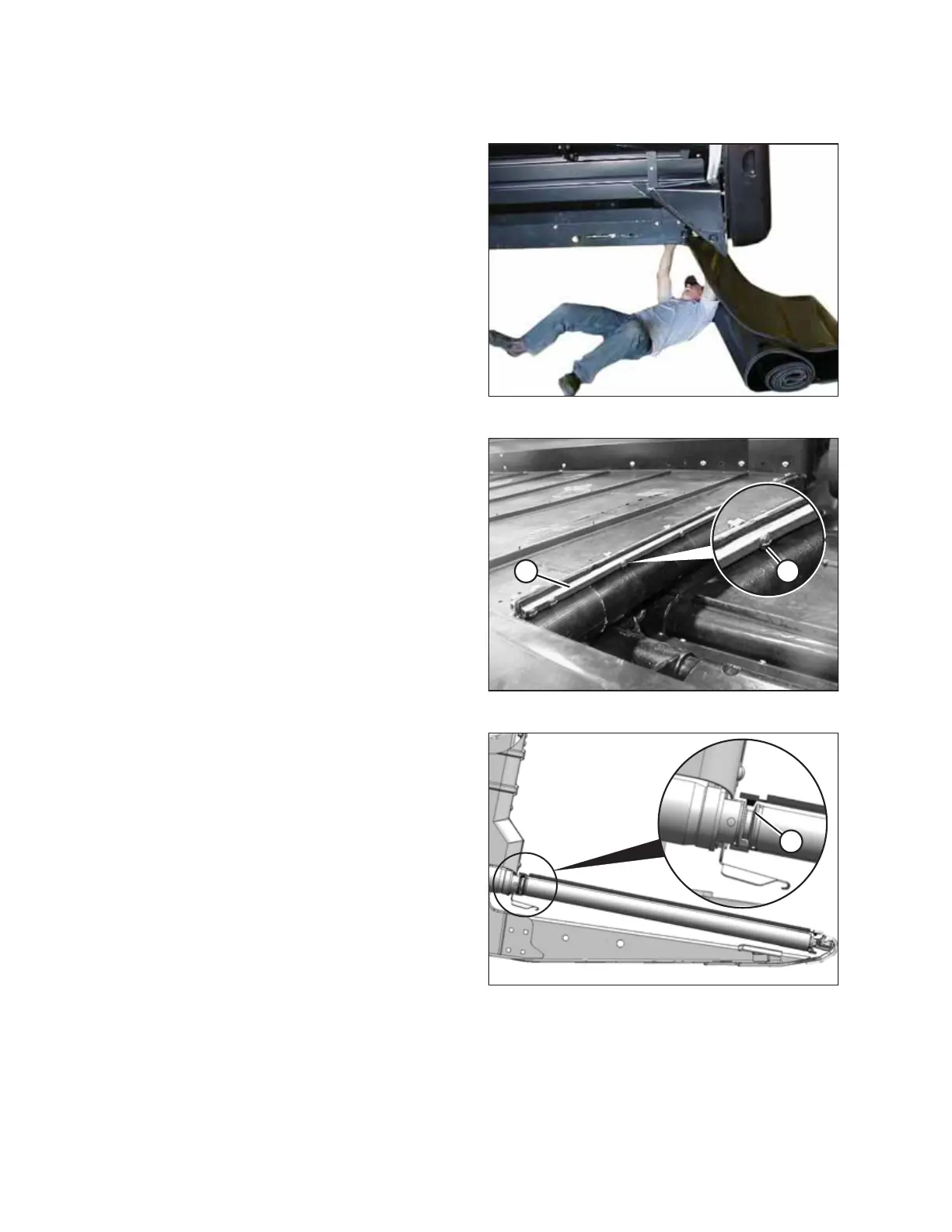

Figure 3.83: Draper Installation
1. Retrieve drapers from bag.
2. Insert draper into deck at outboard end under the rollers.
Pull draper into deck while feeding it at the end.
3. Feed in the draper until it can be wrapped around the drive
roller.
4. Insert opposite end of draper into deck over the rollers. Pull
draper fully into the deck.
Figure 3.84: Draper Connector
5. Attach the ends of the draper with connector (A) (provided)
using the row of holes closest to the end of the draper.
Install screw heads (B) so they lead in the same direction as
the crop flow.
Figure 3.85: Drive Roller
6. Check that draper guide (rubber track on underside of
draper) is properly engaged in groove of drive roller (A).
ASSEMBLING THE HEADER AND FLOAT MODULE
