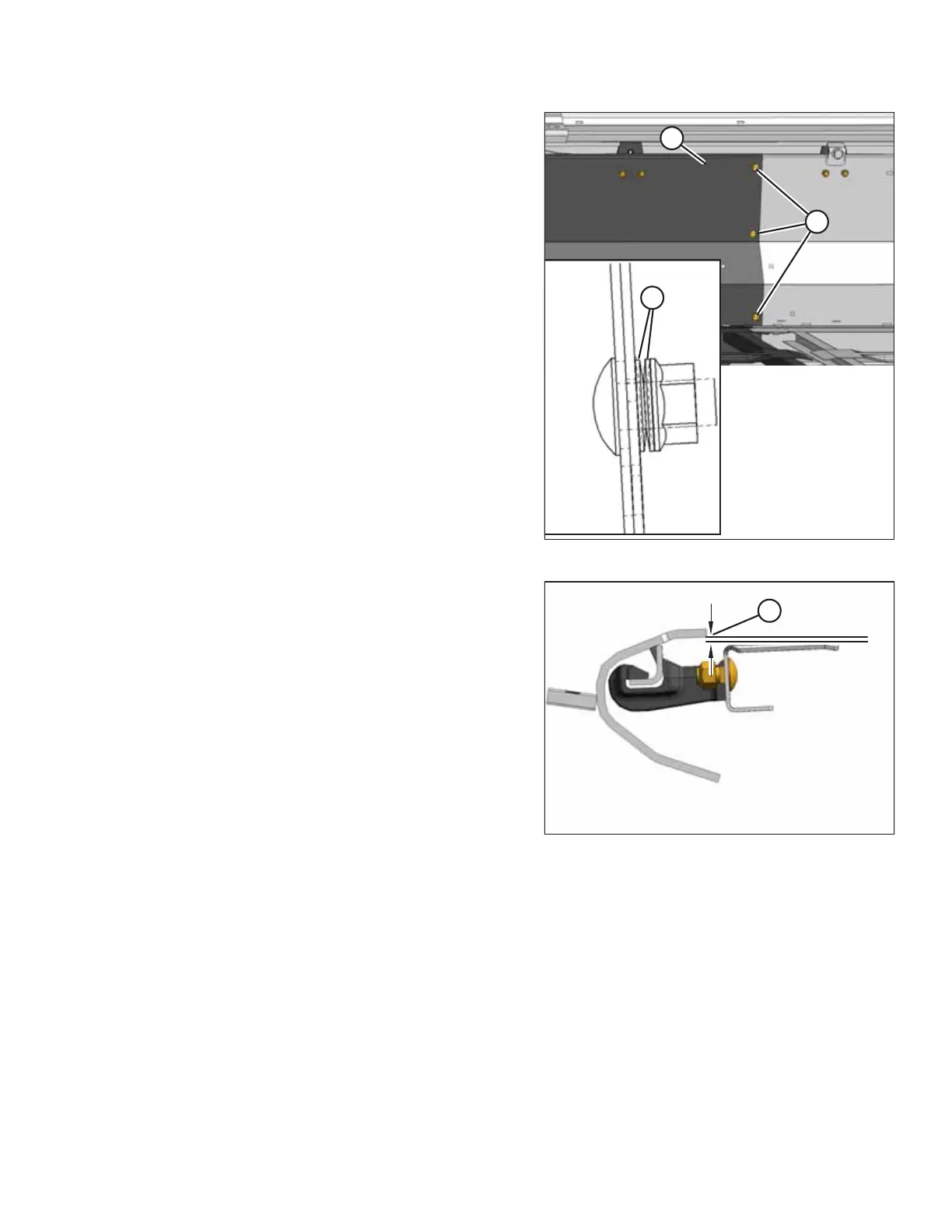

Figure 3.81: Deck Extension Backsheet
11. Attach deck extension backsheet (A) to the existing
backsheet with existing hardware (B) retained from Step 1,
page 50. Ensure Belleville washers (C) are installed
as shown.
Figure 3.82: Deck Clearance to Cutterbar
12. Adjust deck height to obtain clearance (A) of 7–11 mm
(1/8–7/16 in.) between top of deck and inside cutterbar
(i.e., the thickness of the draper plus 3 mm).
13. Tighten all hardware.
