215184 30 Revision A

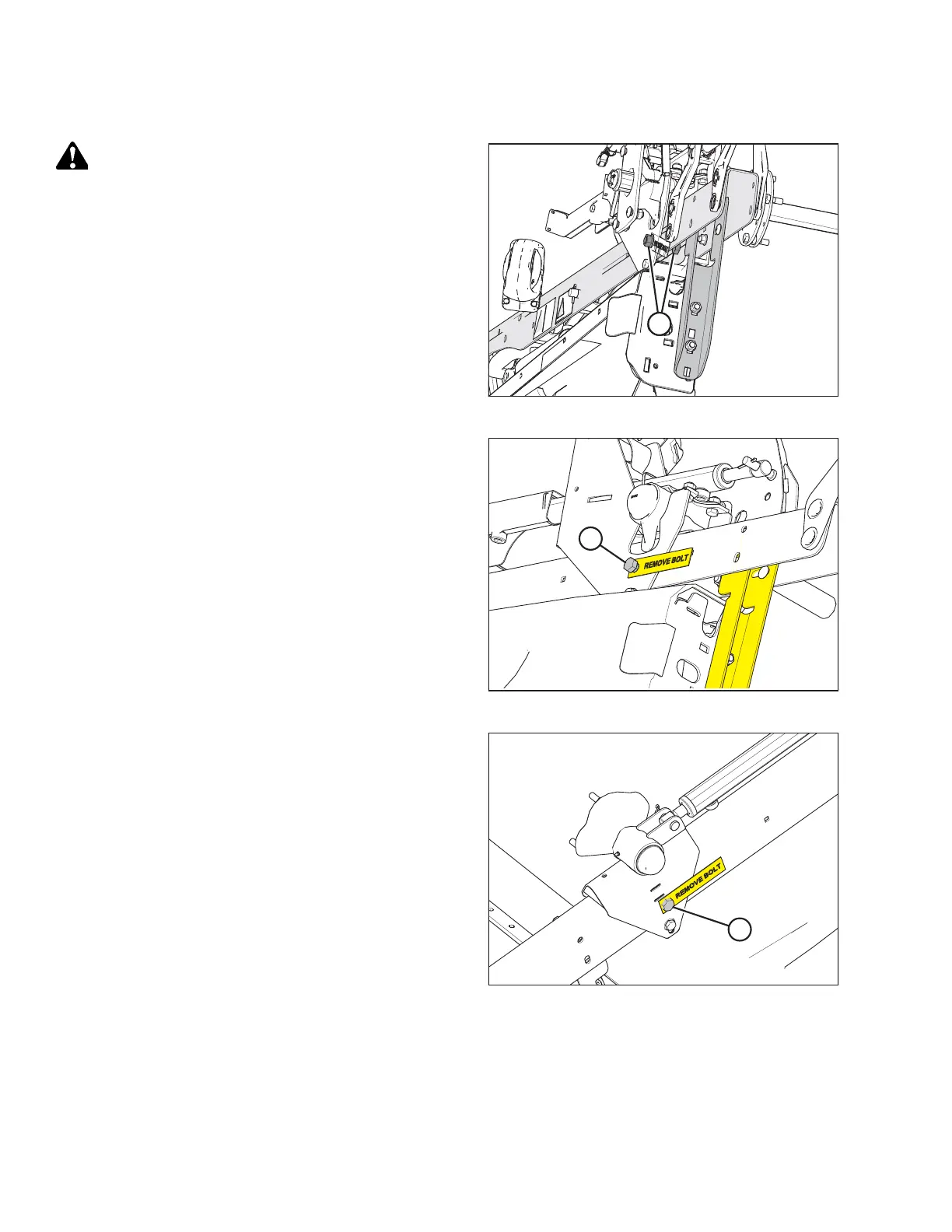

3.1.3 Attaching Reel Lift Cylinders
Figure 3.23: Reel Right Arm – Single Reel
Figure 3.24: Reel Right Arm – Double Reel
CAUTION
Tagged bolts (A) on reel arms keep the reel from sliding
forward. Ensure fore-aft cylinders are attached BEFORE
removing bolts.
NOTE:
Reel, draper, and cutterbar parts removed from illustration for
clarity.
Figure 3.25: Reel Left Arm
ASSEMBLING THE HEADER AND FLOAT MODULE
