MacDon D1 Series - Page 55

215184 31 Revision A
1006382
A

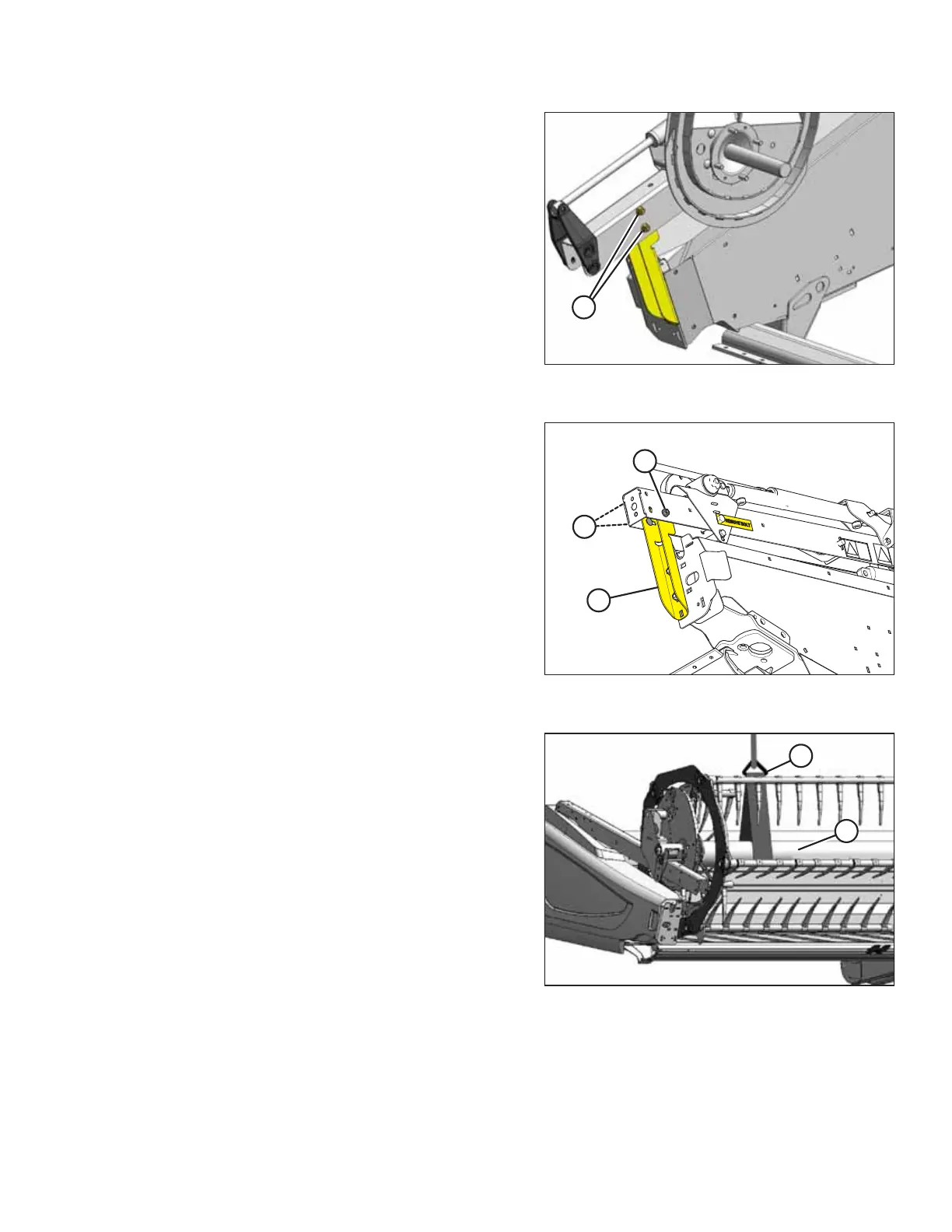

Figure 3.26: Reel Arm Shipping Support – Standard
Reel Arms
1. Standard reel arms: Remove two top bolts (A) on outboard
reel arm support. Repeat for opposite side.
1024876
A
B
A
Figure 3.27: Reel Arm Shipping Support – Short
Reel Arms
Short reel arms: Remove bolts (A) on left reel arm
support (B). Repeat for opposite side.
NOTE:
Reel parts removed from illustration for clarity.
1008126
A
B
Figure 3.28: Reel Right End
2. Position sling (A) around reel tube (B) close to the outboard
end of reel and attach sling to a forklift (or equivalent).
3. Remove shipping wire/banding from the reel lift cylinder
that is secured to the reel right arm.
ASSEMBLING THE HEADER AND FLOAT MODULE
