8.12 Adjusting Auger to Pan Clearance
WARNING
To avoid injury or death from unexpected start-up of machine, always stop the engine and remove the key from the
ignition before leaving the operator’s seat for any reason.
IMPORTANT:
Maintain an appropriate distance between the auger and the auger pan. Too little clearance may result in the fingers or
flighting contacting and damaging the feed draper or pan when operating the header at certain angles. Look for evidence
of contact when greasing the float module.
1. Extend the center-link to the steepest header angle, and position the header 150–254 mm (6–10 in.) off the ground.
2. Shut down the engine, and remove the key from the ignition.
1013274
A

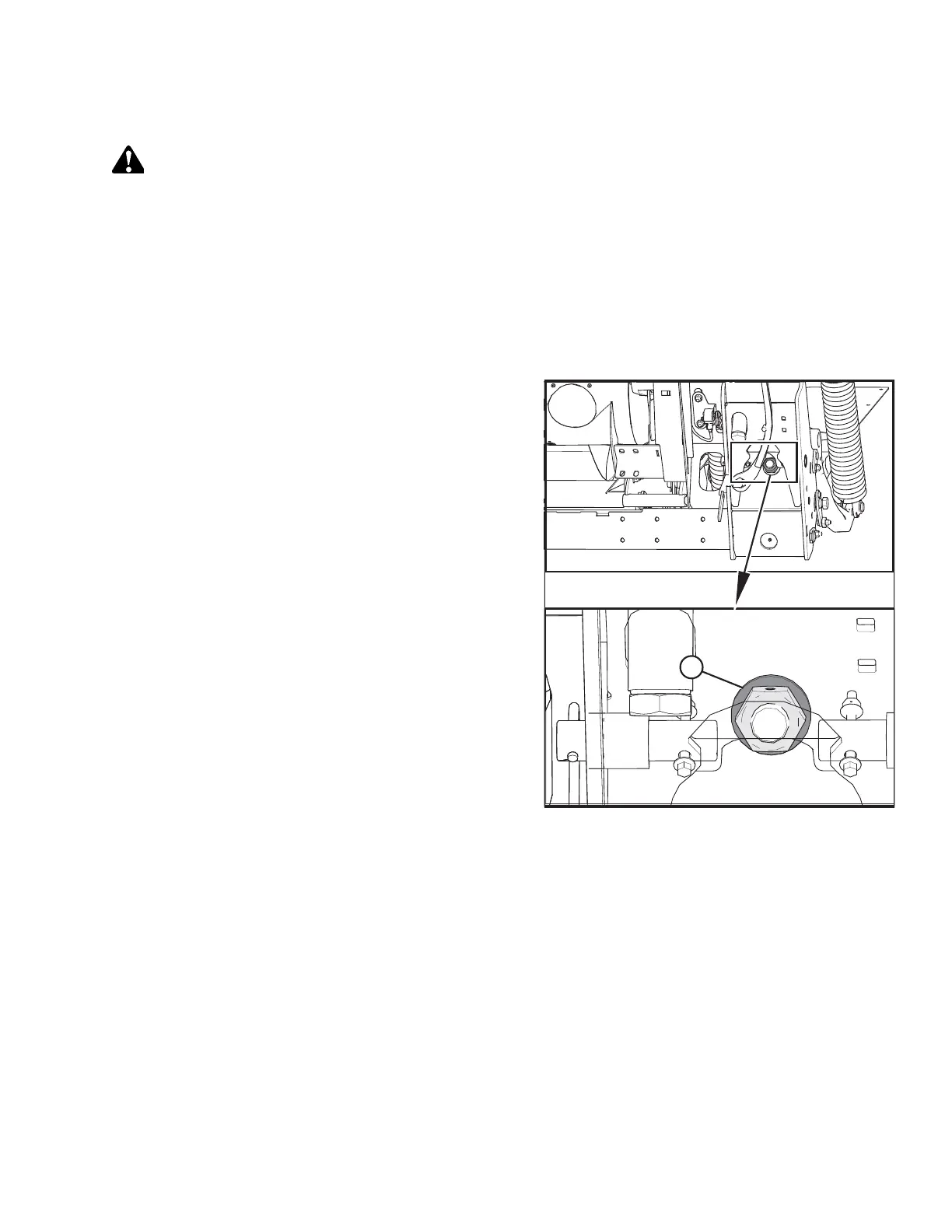

Figure 8.38: Float Lock
3. Ensure the float lock linkage is on the down stops
(washer [A] cannot be moved) at both locations.
PERFORMING PREDELIVERY CHECKS
