MacDon D1 Series - Adjusting Draper Tracking

215184 496 Revision A
11.1.1 Adjusting Draper Tracking
If necessary, adjust tracking as follows:
1008637
X
Y

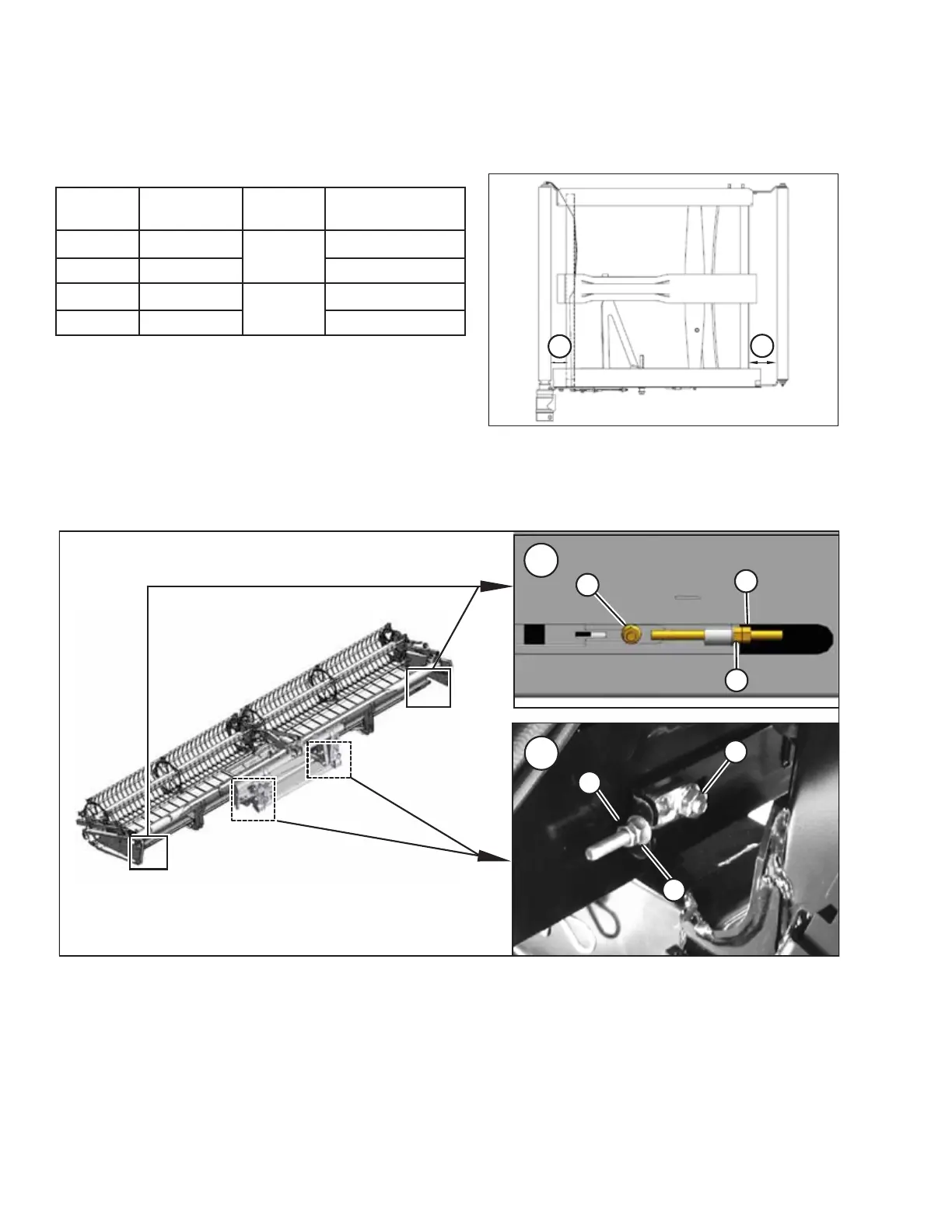

Figure 11.9: Adjustment Locations
X - Drive Roller Y - Idler Roller
Table 11.2 Draper Tracking Adjustment
Tracking Adjustment
At
Location
Method
Backward
Increase X
Drive
Roller
Tighten Nut C
Forward
Decrease X Loosen Nut C
Backward
Increase Y
Idler
Roller
Tighten Nut F
Forward
Decrease Y Loosen Nut F
Example: If draper is tracking towards back of deck, increase (X)
or (Y) to move draper forward.
Figure 11.10: Drive and Idler Roller Adjustment Locations
1008636
E
F
D
A
B
C
X
Y
X - Drive Rollers Adjustment A - Nut B - Jam Nut on Adjuster Rod C - Adjusting Nut
Y - Idler Rollers Adjustment D - Nut E - Jam Nut on Adjuster Rod F - Adjusting Nut
RUNNING UP HEADER
