5.7 Repositioning Gearbox

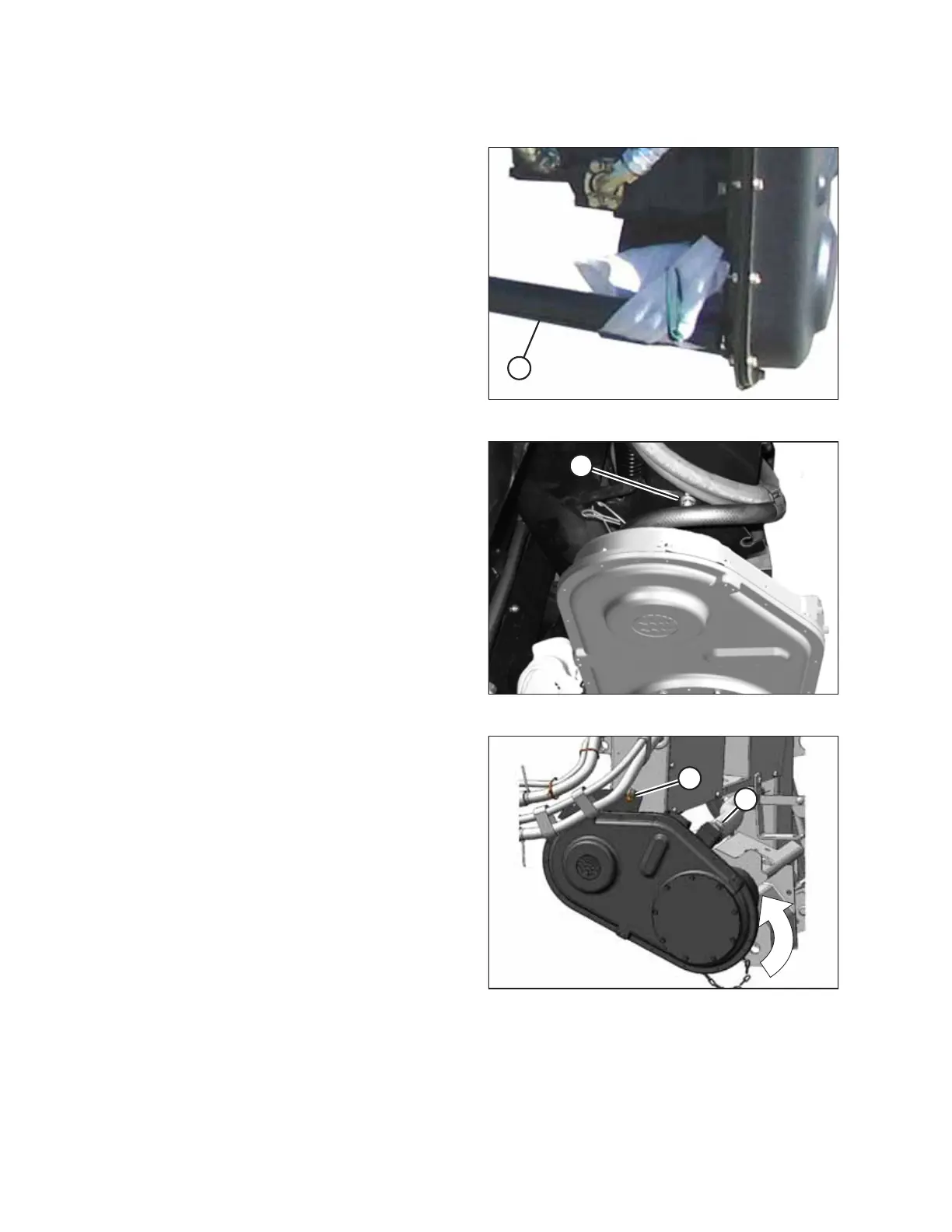

Figure 5.32: Shipping Wire and Brace
1. Remove shipping wire and wrapping on brace (A) and swing
the brace clear of gearbox.
Figure 5.33: Shipping Position
2. Loosen nut (A) and move bolt out of shipping position slot.
Figure 5.34: Working Position
3. Rotate gearbox and insert bolt into working position
slot (A). Tighten nut.
4. Tighten suction hose clamp (B) to 6.4–7.0 Nm
(57–62 lbf·in).
NOTE:
Hose clamps should be readjusted after running with
hot oil.
5. Remove bolt and nut from bracket on gearbox.
