MacDon D1 Series - Setting Header Controls - Case IH 8010

215184 344 Revision A
1003679
A

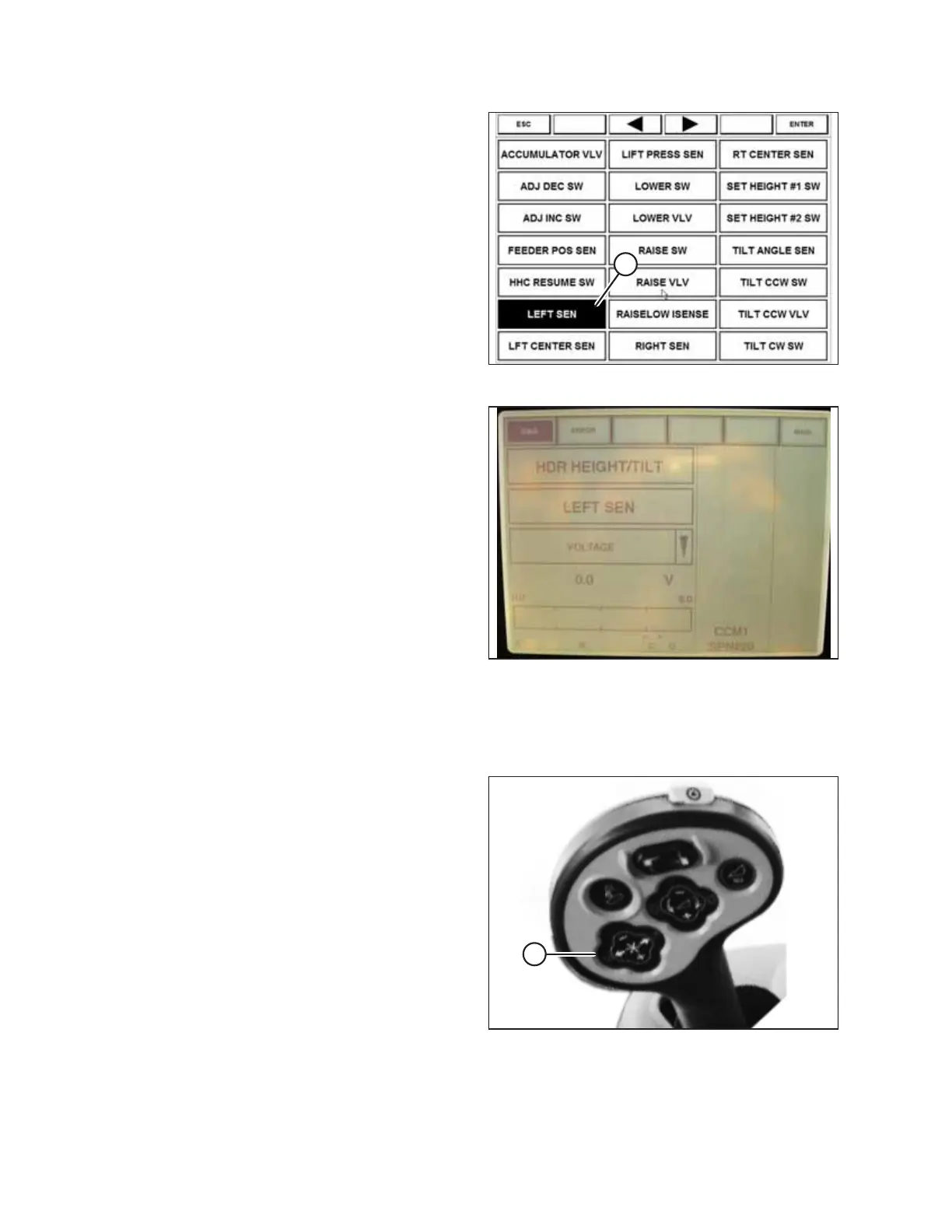

Figure 9.84: Case 8010 Combine Display
8. Select LEFT SEN (A). The exact voltage is displayed. Raise
and lower the header to see the full range of
voltage readings.
1003680
Figure 9.85: Case 8010 Combine Display
9. If the sensor voltage is not within the low and high limits,
or if the range between the low and high limits is
insufficient, adjust the voltage limits. For instructions, refer
to Adjusting Voltage Limits – One-Sensor System, page 314.
Setting Header Controls – Case IH 8010
The following procedure applies to Case IH 8010 combines without a shift button on the control handle.
1023783
A
Figure 9.86: Case Combine Controls
The REEL FORE-AFT switches (A) also control header fore-aft tilt
if header is equipped with the fore-aft tilt option. The switches
can be configured to allow the Operator to swap between reel
fore-aft and header fore-aft tilt.
To set the header controls, follow these steps:
SETTING UP AUTO HEADER HEIGHT CONTROL
