MacDon D1 Series - Calibrating Reel Height Sensor - CLAAS 600 and 700 Series

215184 380 Revision A
1003741
A

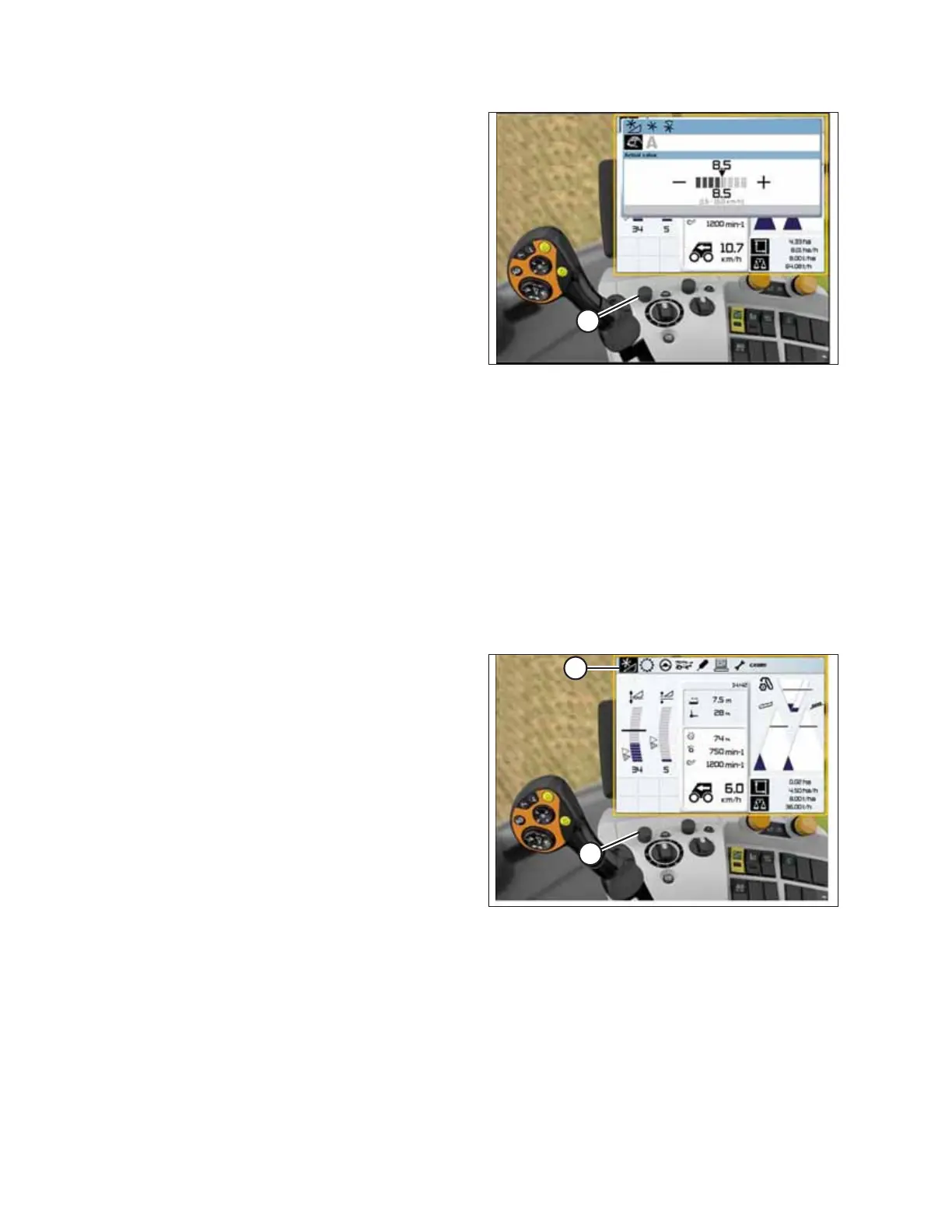

Figure 9.169: CLAAS Combine Display, Console, and
Control Handle
4. Use control knob (A) to raise or lower the reel speed.
NOTE:
This option is only available at full throttle.
Calibrating Reel Height Sensor – CLAAS 600 and 700 Series
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
To calibrate reel height, follow these steps:
1. Place header off the ground 15–25 cm (6–10 in.).
IMPORTANT:
Do NOT turn off the engine. The combine has to be at full idle for the sensors to calibrate properly.
1003686
A
B
Figure 9.170: CLAAS Combine Display, Console, and
Control Handle
2. Use control knob (A) to highlight FRONT ATTACHMENT
icon (B) and press control knob (A) to select it.
SETTING UP AUTO HEADER HEIGHT CONTROL
