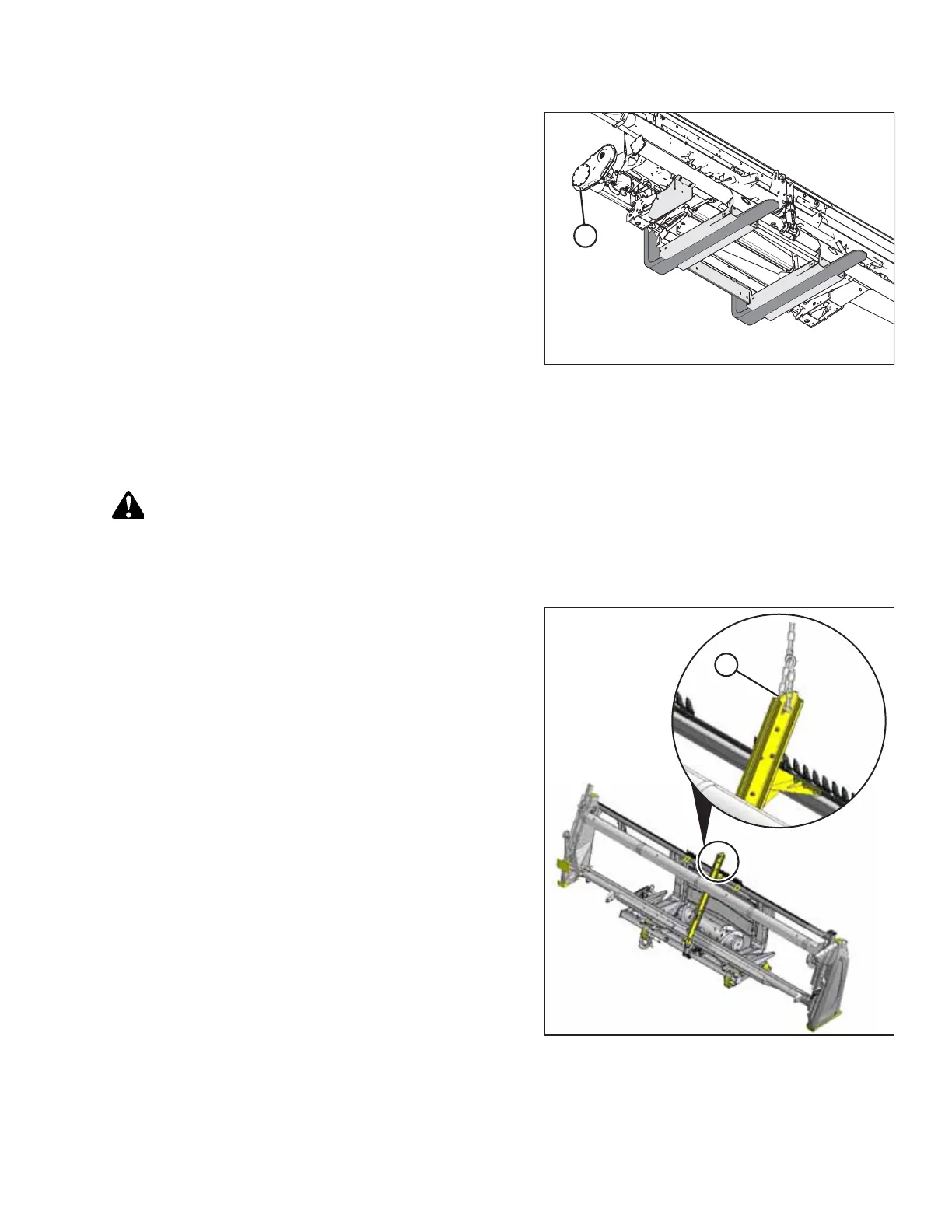

Figure 2.16: View from below Header
IMPORTANT:
Avoid damage to gearbox (A) when unloading and
grounding unit.
4. Lift second header off platform using the above procedure.
5. Check for shipping damage and missing parts.
2.3.2 Crane Method
Lifting Single Header
WARNING
Equipment used for loading and unloading must meet or exceed the minimum specified requirements. Using
inadequate equipment may result in vehicle tipping, machine damage, or chain breakage.
For minimum lifting equipment requirements, refer to 12.3 Lifting Equipment Requirements, page 515.
Figure 2.17: Single-Reel Header
1. Attach chains to crane hook.
IMPORTANT:
Refer to Figure 2.19, page 14 for chain length
recommendations.
2. Attach chains to header at attachment points (A).
3. Remove hauler’s tie-down straps and chains.
4. Lift the header off the truck and set it on the ground. If
ground is too soft, use blocks under the stands.
5. Unhook chains.
UNLOADING THE HEADER
