MacDon D1 Series - 7.3 Case IH Combines; 7.3.1 Attaching Header to Case IH Combine

215184 218 Revision A
7.3 Case IH Combines
7.3.1 Attaching Header to Case IH Combine
WARNING
To avoid injury or death from unexpected start-up of machine, always stop the engine and remove the key from the
ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from
the ignition.
1004504
A
B

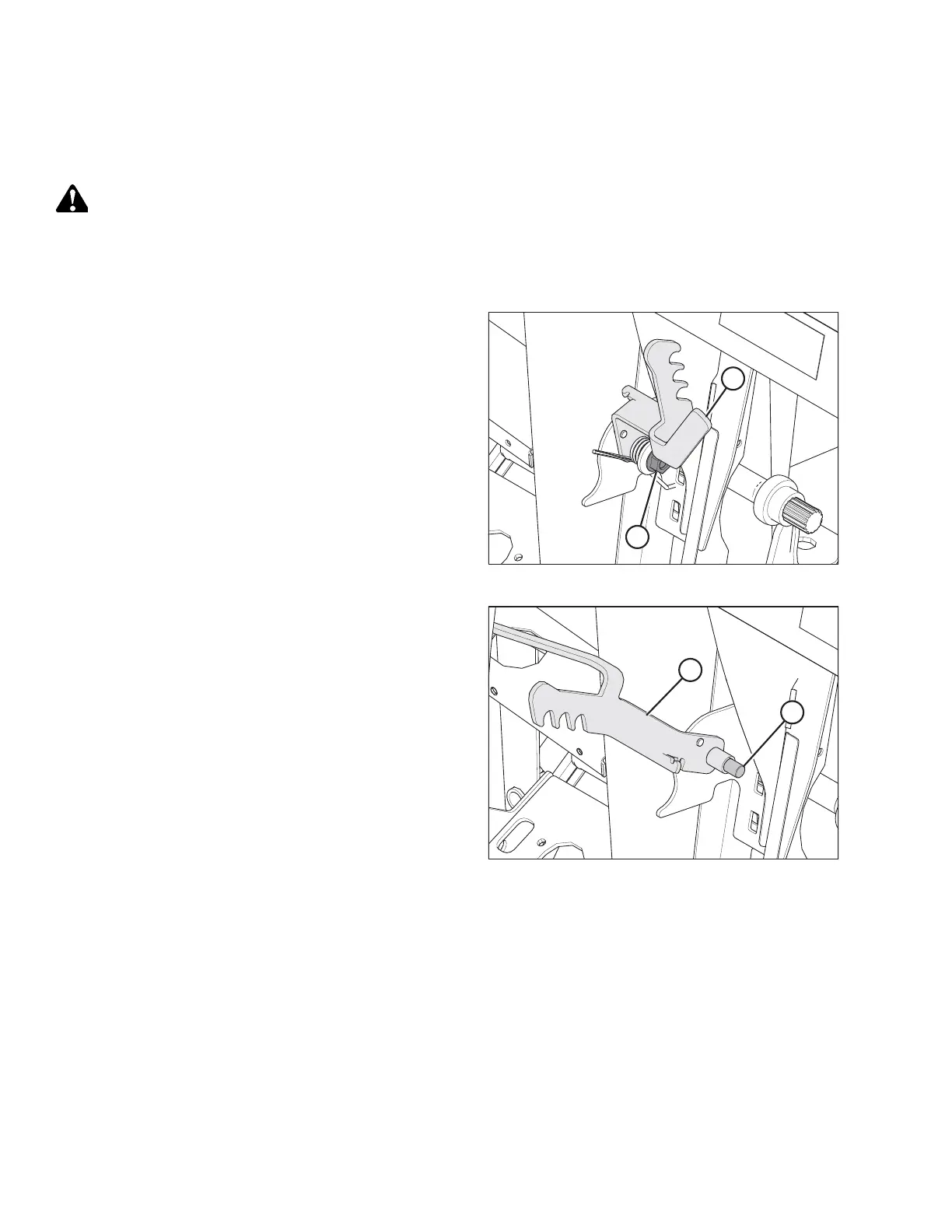

Figure 7.31: Combine Float Module Upper Left Side
2. On the upper left side of the combine float module, remove
nut (A), washer, spring, and lever (B).
1014367
A
B
Figure 7.32: Combine Float Module Upper Left Side
3. Position lever (A) onto stud (B).
ATTACHING HEADER TO COMBINE
