MacDon D1 Series - Adjusting Auto Reel Height - CLAAS 600 and 700 Series

215184 382 Revision A
1003690
A

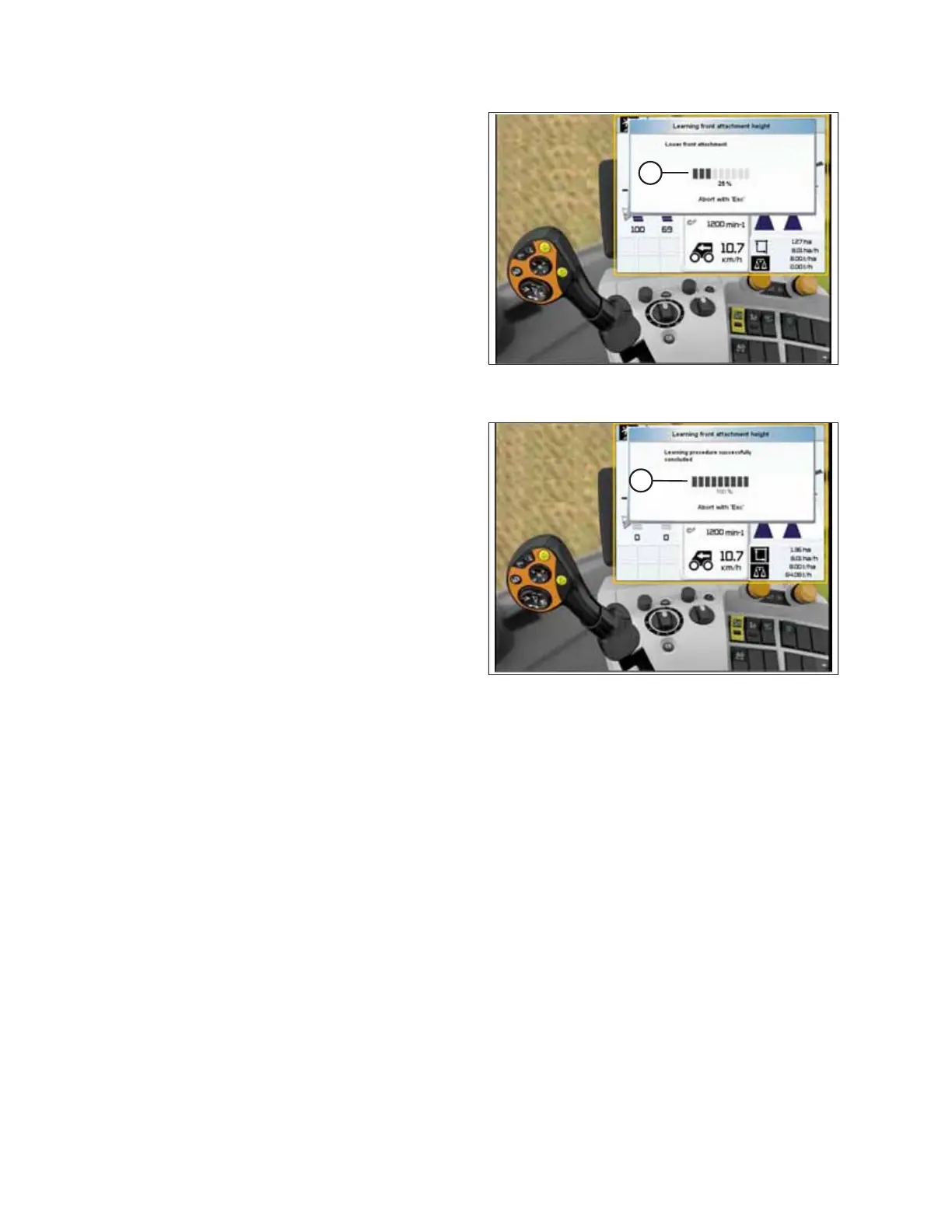

Figure 9.174: CLAAS Combine Display, Console, and
Control Handle
7. Press control knob and a progress bar chart (A) will appear.
8. Follow the prompts on the screen to raise the reel.
9. Follow the prompts on the screen to lower the reel.
1003691
A
Figure 9.175: CLAAS Combine Display, Console, and
Control Handle
10. Ensure progress bar chart displays 100% (A). The calibration
procedure is now complete.
Adjusting Auto Reel Height – CLAAS 600 and 700 Series
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
To adjust the auto reel height, follow these steps:
SETTING UP AUTO HEADER HEIGHT CONTROL
