MacDon D1 Series - Installing Tine Tubes

215184 117 Revision A
1008495
A
B
C

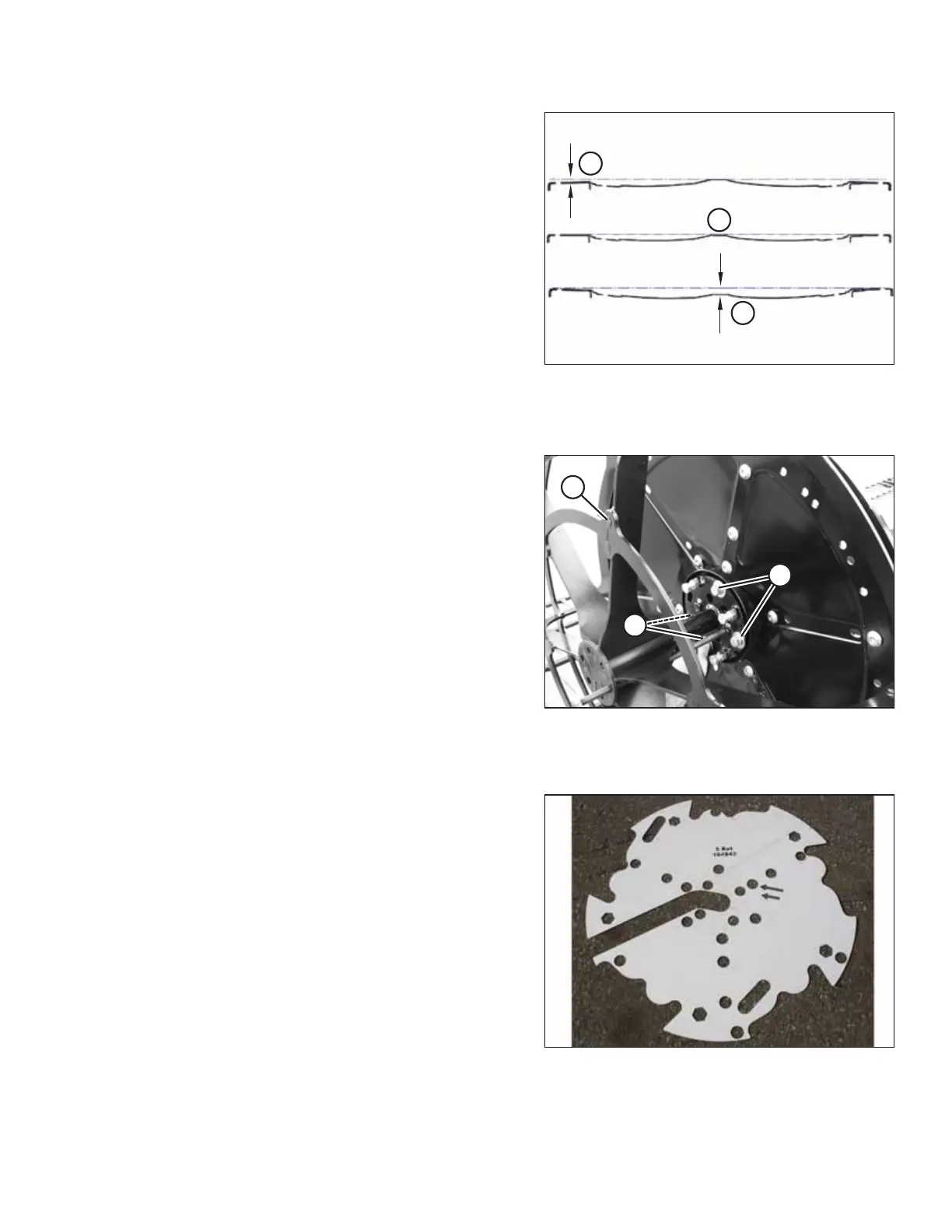

Figure 3.246: Disc Contour Dimensions
A - Condition 1: 3 mm (1/8 in.)
B - Condition 2: 3 mm (1/8 in.)
C - Normal
11. If necessary, adjust contour as follows:
a. Condition 1: Increase protrusion of adjusting screws.
Refer to Step 1, page 113.
b. Condition 2: Decrease protrusion of adjusting screws.
Refer to Step 1, page 113.
c. Loosen all bolts on disc and repeat Step 5, page 115 to
Step 10, page 116.
1008491
A
B
B
Figure 3.247: Jig Removal
12. Remove four bolts (B) securing jig (A) to reel tube.
13. Remove jig. Use jacking bolt if necessary to remove the jig
from the disc.
Installing Tine Tubes
1008499
Figure 3.248: Template
NOTE:
A template is required to attach tine tubes to reel discs. The
template is included with first shipment of headers to each setup
location.
ASSEMBLING THE HEADER AND FLOAT MODULE
