215184 163 Revision A
5.6 Removing the Remaining Shipping Supports
If the header was transported to a Dealer after assembly, follow this procedure from the beginning and remove the fork
slider channels, shipping guards, and stands. If these shipping materials were already removed, proceed to Step 13, page
166.

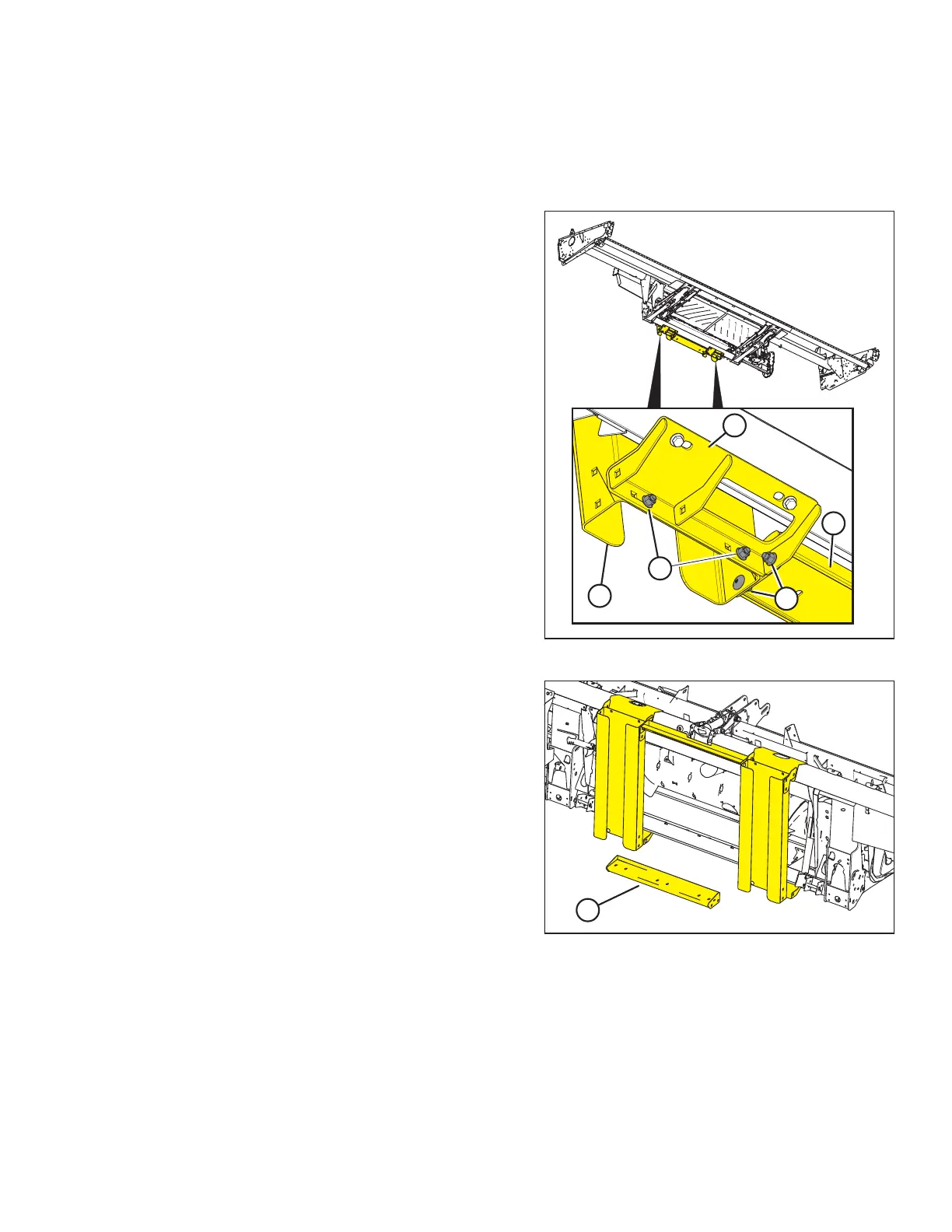

Figure 5.17: Shipping Stands and Lower Brace
1. Remove two bolts (A) securing right fork channel (B) to
shipping stand (C).
NOTE:
To access the bolts at the lower stand support, the header
must be supported on 150 mm (6 in.) blocks, as directed in
Step 5, page 18.
2. Remove two bolts (D) securing fork channel (B) to lower
brace (E).
3. Repeat the steps above for the left side.
Figure 5.18: Lower Brace Removal
4. Remove lower brace (A).
UNLOADING HEADER AT DEALER
