215184 166 Revision A

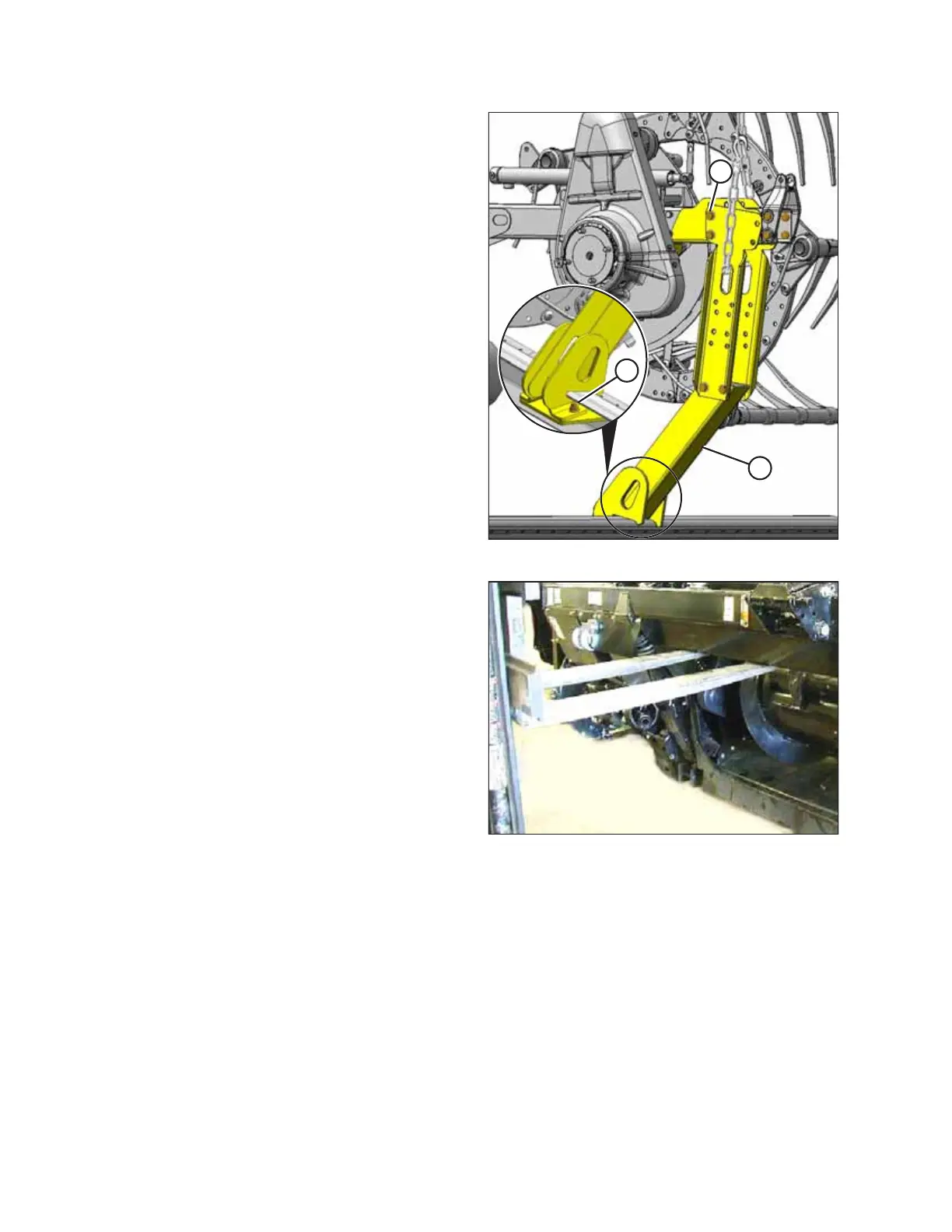

Figure 5.24: Center Reel Arm Shipping Support
13. Remove two bolts (A) at the base of center reel arm
shipping support (B) so that plate drops free.
14. Remove bolt (C) at the top of support and slide lower
support off cutterbar. Do NOT remove brace on reel arm.
Figure 5.25: Float Module and Forklift
15. Support float module with forklift.
UNLOADING HEADER AT DEALER
