MacDon D1 Series - CLAAS 500 Series Combines; Calibrating the Auto Header Height Control - CLAAS 500 Series

215184 366 Revision A
9.1.9 CLAAS 500 Series Combines
Calibrating the Auto Header Height Control – CLAAS 500 Series
For best performance of the auto header height control (AHHC), perform these procedures with the center-link set to D.
When setup and calibration are complete, adjust the center-link back to desired header angle. For instructions, refer to
Header Angle in the header operator’s manual for instructions.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
NOTE:
If header float is set too light, it can prevent calibration of AHHC. You may need to set the float heavier for calibration
procedure so header doesn’t separate from the float module.
1. Ensure center-link is set to D.
1010067
A
B
C

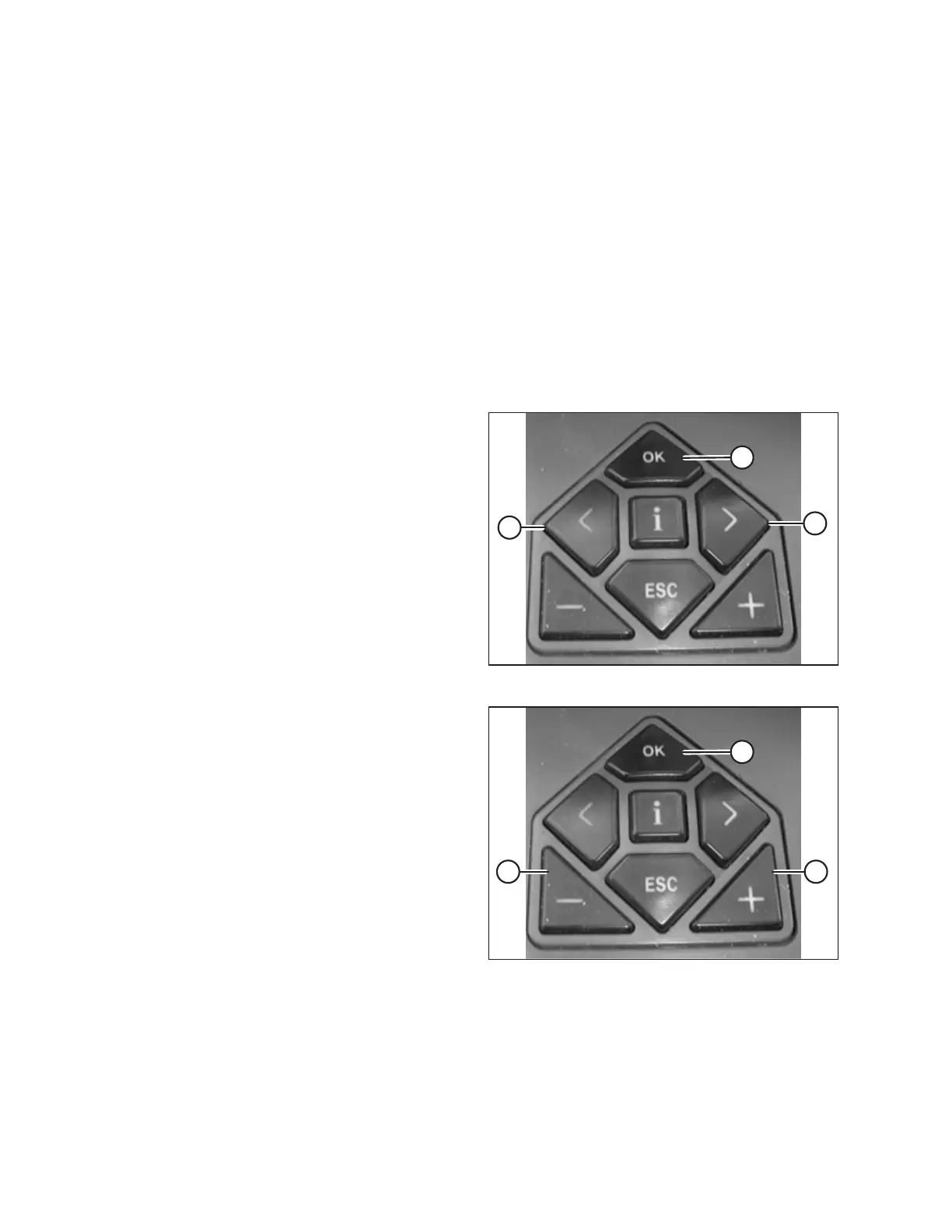

Figure 9.136: CLAAS Combine Controls
2. Use < key (A) or > key (B) to select AUTO HEADER, and
press OK key (C). The E5 screen displays whether the
automatic header height is on or off.
1003749
A B
C
Figure 9.137: CLAAS Combine Controls
3. Use – key (A) or + key (B) to turn the AHHC on, and press
OK key (C).
4. Engage the threshing mechanism and the header.
SETTING UP AUTO HEADER HEIGHT CONTROL
