MacDon D1 Series - Reviewing Header In-Field Settings - Gleaner S9 Series

215184 415 Revision A
1018467
A

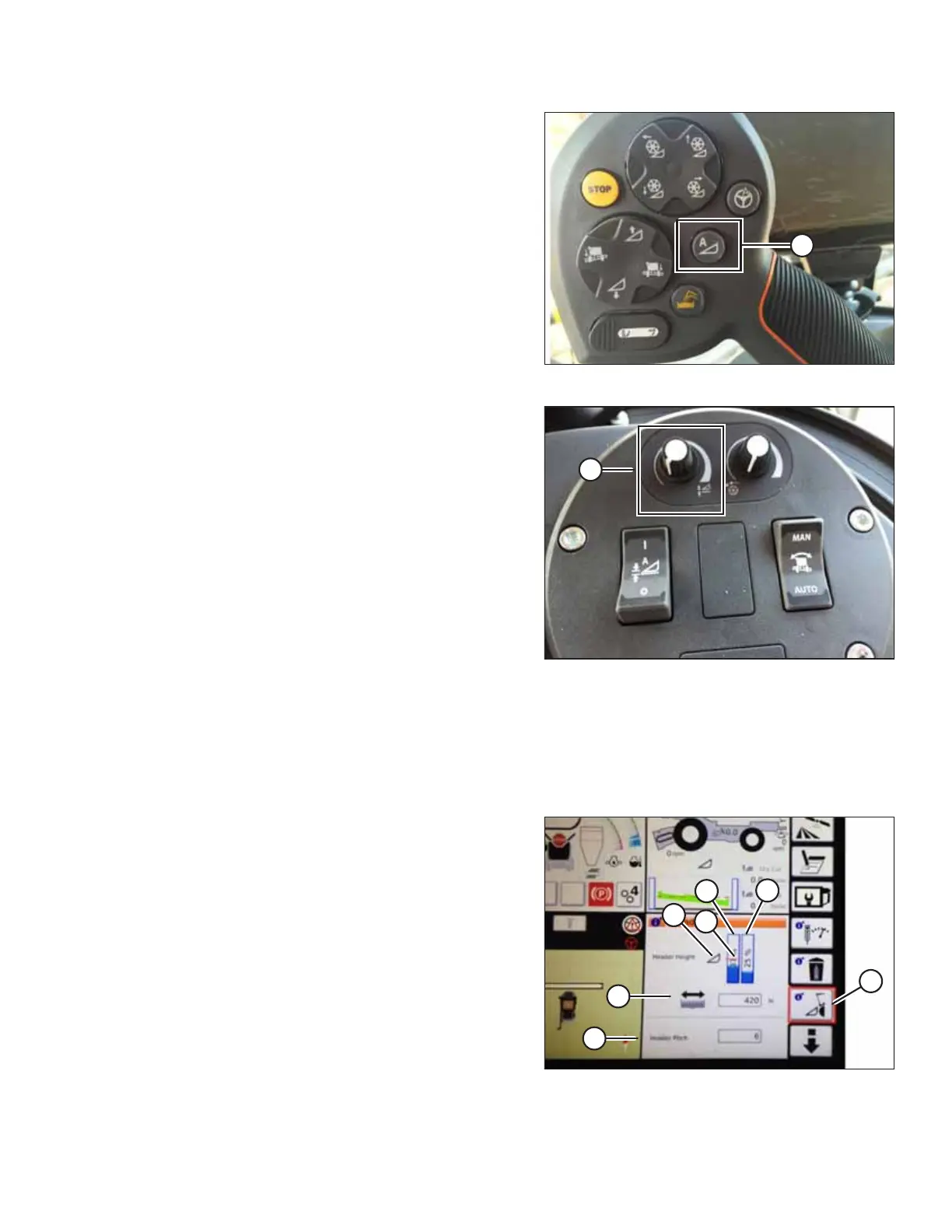

Figure 9.243: AHHC on Control Handle
3. Press AHHC control switch (A) on the control handle to
engage the AHHC. The header moves to the current
setpoint position.
1018469
A
Figure 9.244: Header Control Cluster
4. Use HEADER HEIGHT SETPOINT control dial (A) as necessary
to fine-tune the position.
Reviewing Header In-Field Settings – Gleaner S9 Series
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
1018435
A
B
C
D
E
F
G
Figure 9.245: Header Groups
1. To view header group settings, touch HEADER icon (A) on
the right side of the home page.
2. The following information is displayed:
• CURRENT POSITION of header (B).
• SETPOINT cut-off position (C) (indicated by red line)
• HEADER symbol (D) – touch to adjust the setpoint cut-
off position using the scroll wheel on the right side of
the Tyton terminal.
• CUT HEIGHT for AHHC (E) – fine-tune with the header
height setpoint control dial on the header control
cluster.
• HEADER WORKING WIDTH (F)
• HEADER PITCH (G)
SETTING UP AUTO HEADER HEIGHT CONTROL
