MacDon D1 Series - Lifting Two Headers

215184 15 Revision A
Lifting Two Headers
WARNING
Equipment used for loading and unloading must meet or exceed the minimum specified requirements. Using
inadequate equipment may result in vehicle tipping, machine damage, or chain breakage.
For minimum lifting equipment requirements, refer to 12.3 Lifting Equipment Requirements, page 515.
1024874
A
B
A

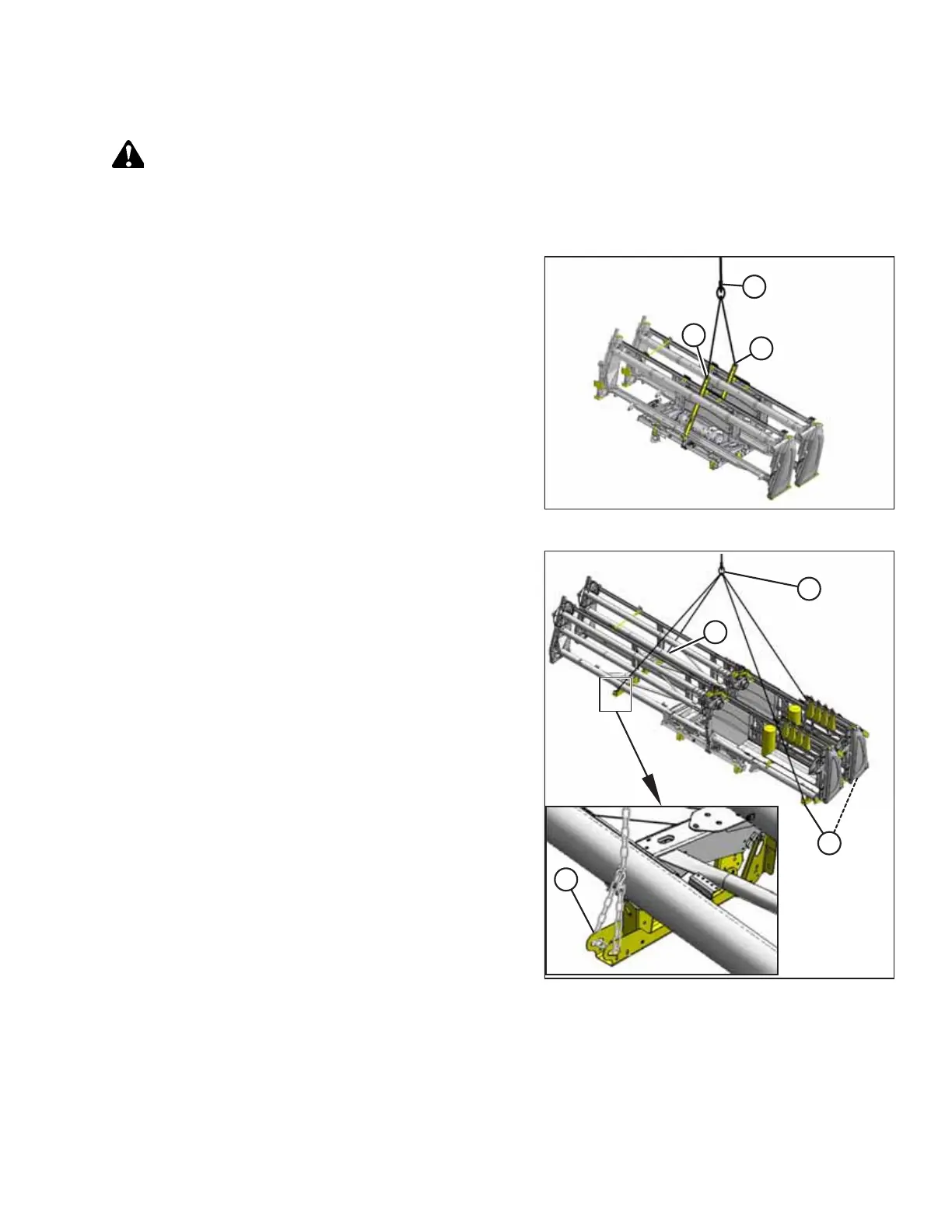

Figure 2.20: Single-Reel Header 6.1–7.6 m (20–25 ft.)
IMPORTANT:
For single-reel headers, the recommended length of each
chain (A) is 2000 mm (79 in.).
1. Attach chains to crane hook (B).
2. Attach chains to header at locations (A) as shown.
3. Remove hauler’s tie-down straps and chains.
4. Lift header off truck and set it on the ground. If ground is
too soft, use blocks under the stands.
5. Unhook chains.
1008295
B
B
B
A
Figure 2.21: Double-Reel Header 9.1–13.7 m (30–45
ft.)
UNLOADING THE HEADER
