MacDon D1 Series - Adjusting Reel Clearance

215184 279 Revision A
1001595
A

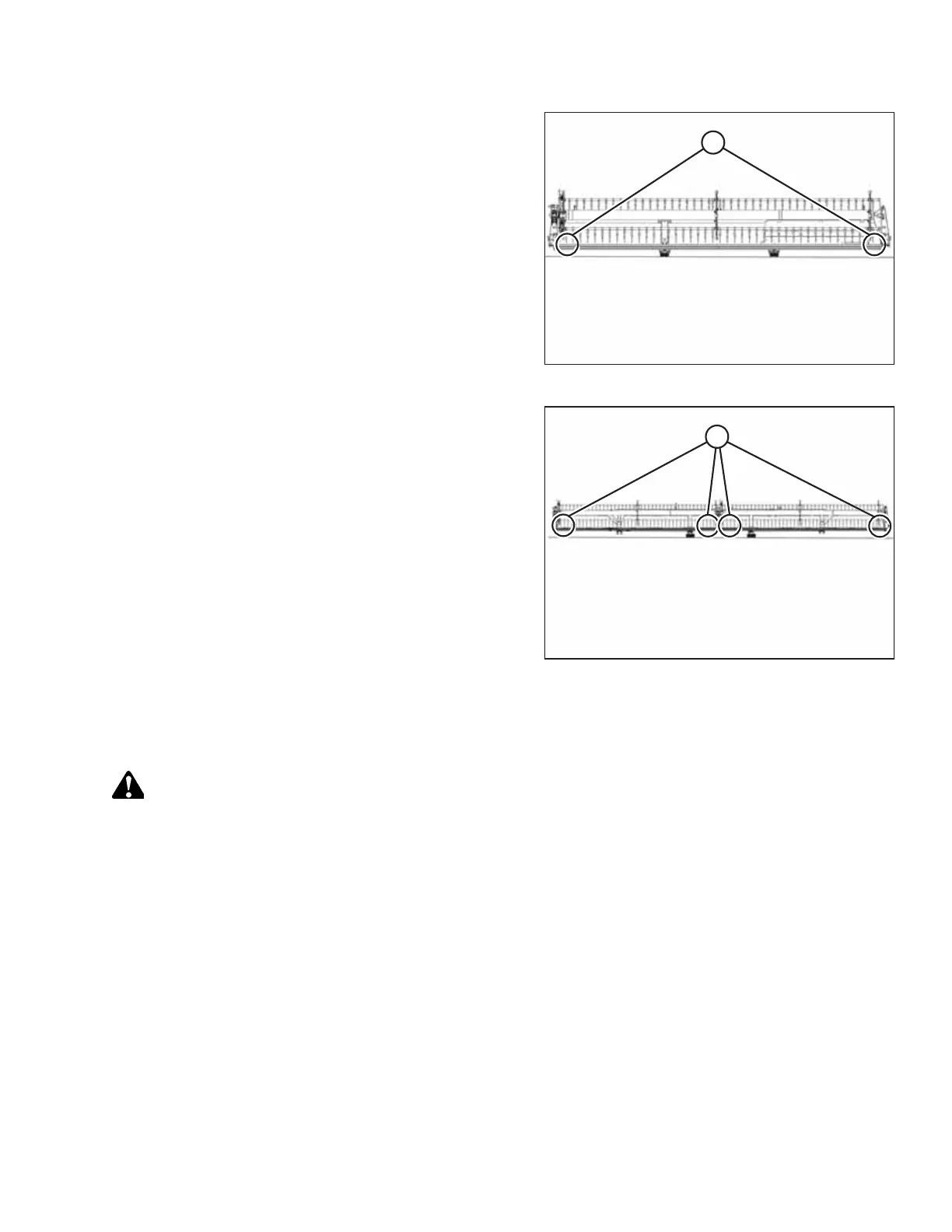

Figure 8.34: Single-Reel Measurement Locations
Measurement location (A): Outer ends of the reel (two places).
1001596
A
Figure 8.35: Double-Reel Measurement Locations
Measurement location (A): Both ends of both reels
(four places).
7. Adjust the reel clearance, if required. For instructions, refer to 8.11.2 Adjusting Reel Clearance, page 279.
8.11.2 Adjusting Reel Clearance
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine, remove key, and
engage safety props before going under header for any reason.
1. Raise the reel fully.
2. Engage the header safety props.
3. Shut down the engine, and remove the key from the ignition.
PERFORMING PREDELIVERY CHECKS
