3.2.10 Installing Right Outboard Skid Shoe
1. Remove right endshield.

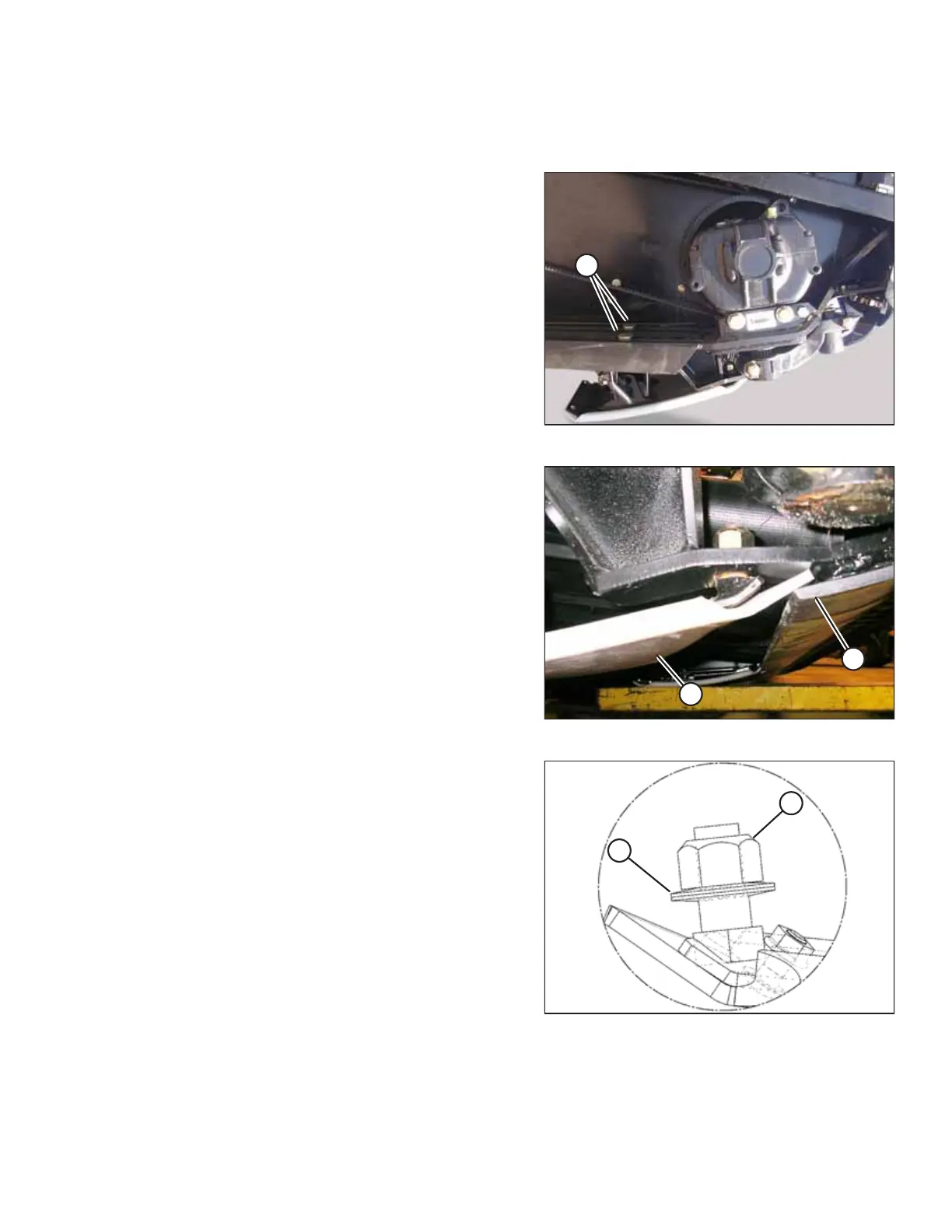

Figure 3.110: Skid Shoe at Endsheet
2. Mount outer skid shoe support to endsheet using
hardware (A) provided. Do NOT tighten.
Figure 3.111: Skid Shoe behind Cutterbar
NOTE:
Ensure skid shoe (A) is tucked up behind cutterbar (B).
Figure 3.112: Skid Shoe Hardware
3. Attach shoe to frame bracket using two Belleville coned
washers (A) and one hex nut (B), as follows:
a. Position coned washers so the coned surfaces are away
from each other as shown at (A).
b. Tighten until nut touches top washer and bolt head
touches bottom of frame bracket.
c. Ensure there is at least one thread showing at end
of bolt.
