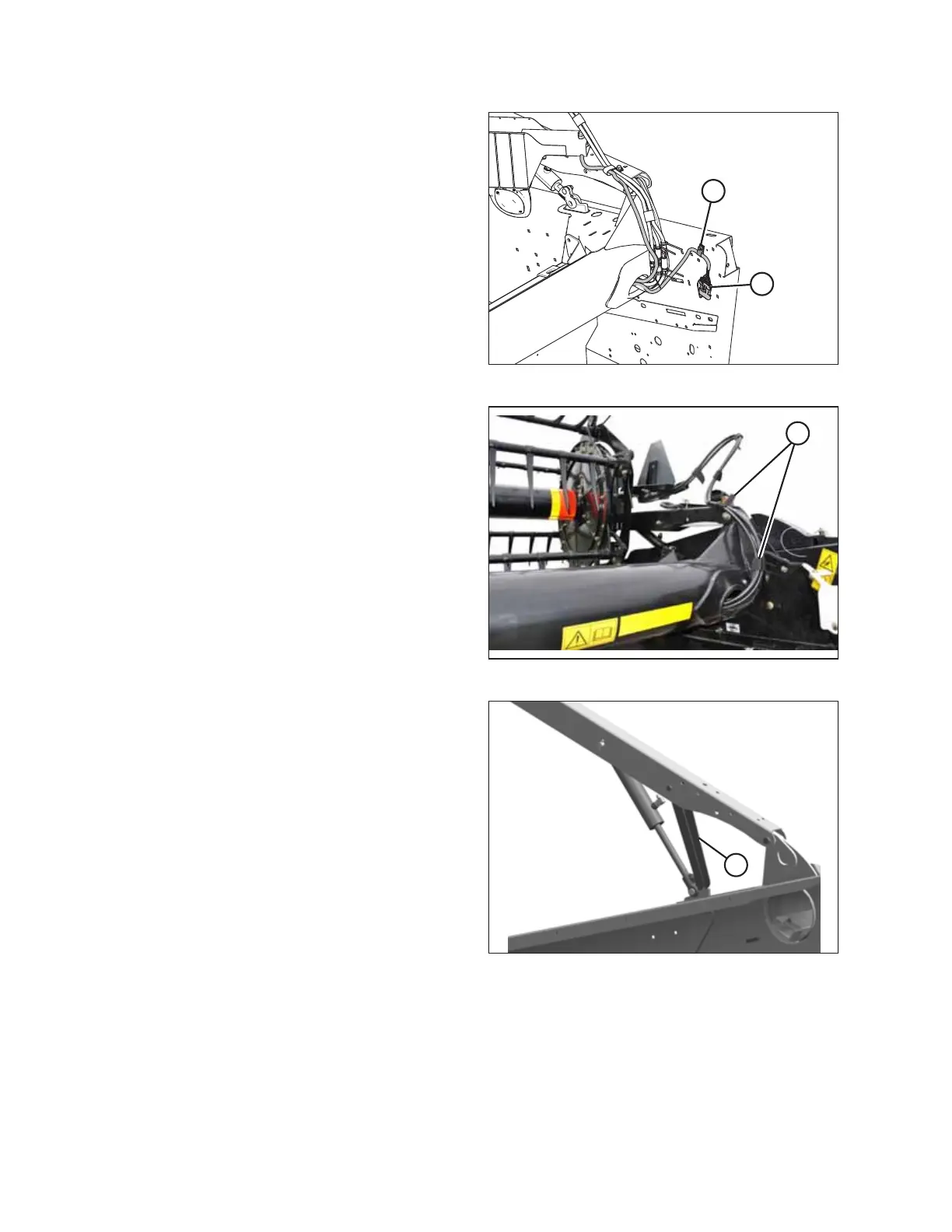

Figure 3.107: Transport Wiring Harness
23. Attach transport wiring harness (A) to the right endsheet
with clamp (B) (unless transport option is installed).
Figure 3.108: Cinch Straps
24. Install cinch straps (A) to secure harness and reel lift/fore-
aft hoses.
Figure 3.109: Reel Arm Safety Prop
25. Install reel arm safety prop (A) inside reel, and secure with
existing hardware.
NOTE:
Tighten reel arm safety prop just enough so it can still be
moved by hand.
ASSEMBLING THE HEADER AND FLOAT MODULE
To Next Page
