MacDon D1 Series - Bag B - Disc Assembly Parts; 105136 Screw - Machine; 50186 Nut - Flange Lock SM Face DT 0.500-13 UNC GR5

215184 502 Revision A

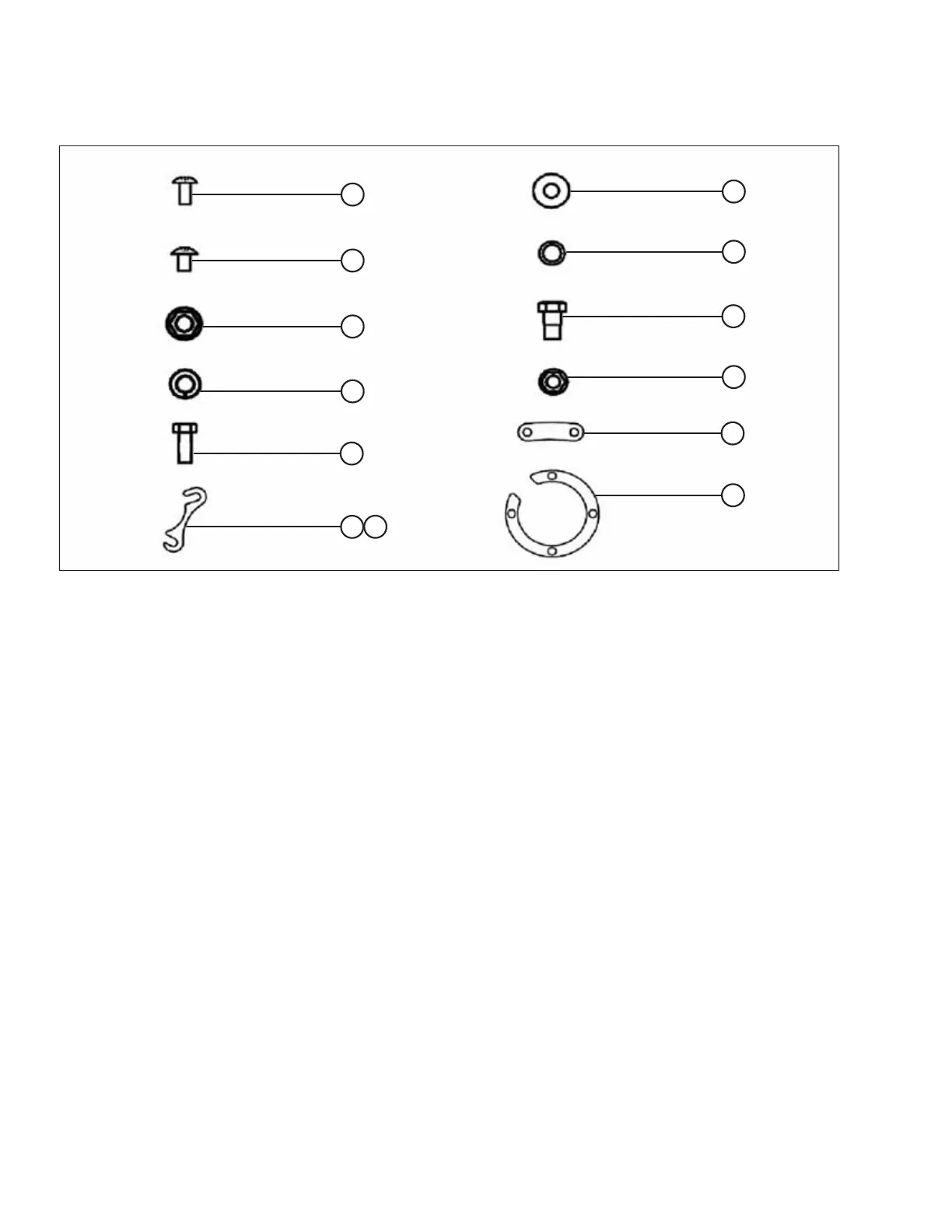

Figure 12.2: Bag B - Disc Assembly Parts
1009802
A
B
C
D
E
F
G
H
J
K
L
M
N
A - 105136 – Screw - Machine B - 105135 – Screw - Machine
C - 50186 – Nut - Flange Lock SM Face DT 0.500-13 UNC GR5 D - 18638 – Washer - REG Lock 1/2 IN NOM ID ZP
E - 21491 – Bolt - HH 1/2 NC X 1.25 LG GR 5 ZP F - 164061 – Shim - Hub to Cam
G - 137699 – USS Hardened Flat Washer - 1/2 NOM. ID H - 137529 – Shim - Crank Bearing
J - 105141 – Bolt - Locking Shoulder K - 50186 – Nut - Flange Lock SM Face DT 0.500-13 UNC GR5
L - 220025 – Strap Link Pin 5–Bat M - 137753 – Shim Ring - 4 Bolt Flange
N – 245199 – Shim - Hub to Cam
REFERENCE
