MacDon D1 Series - Page 527

215184 503 Revision A

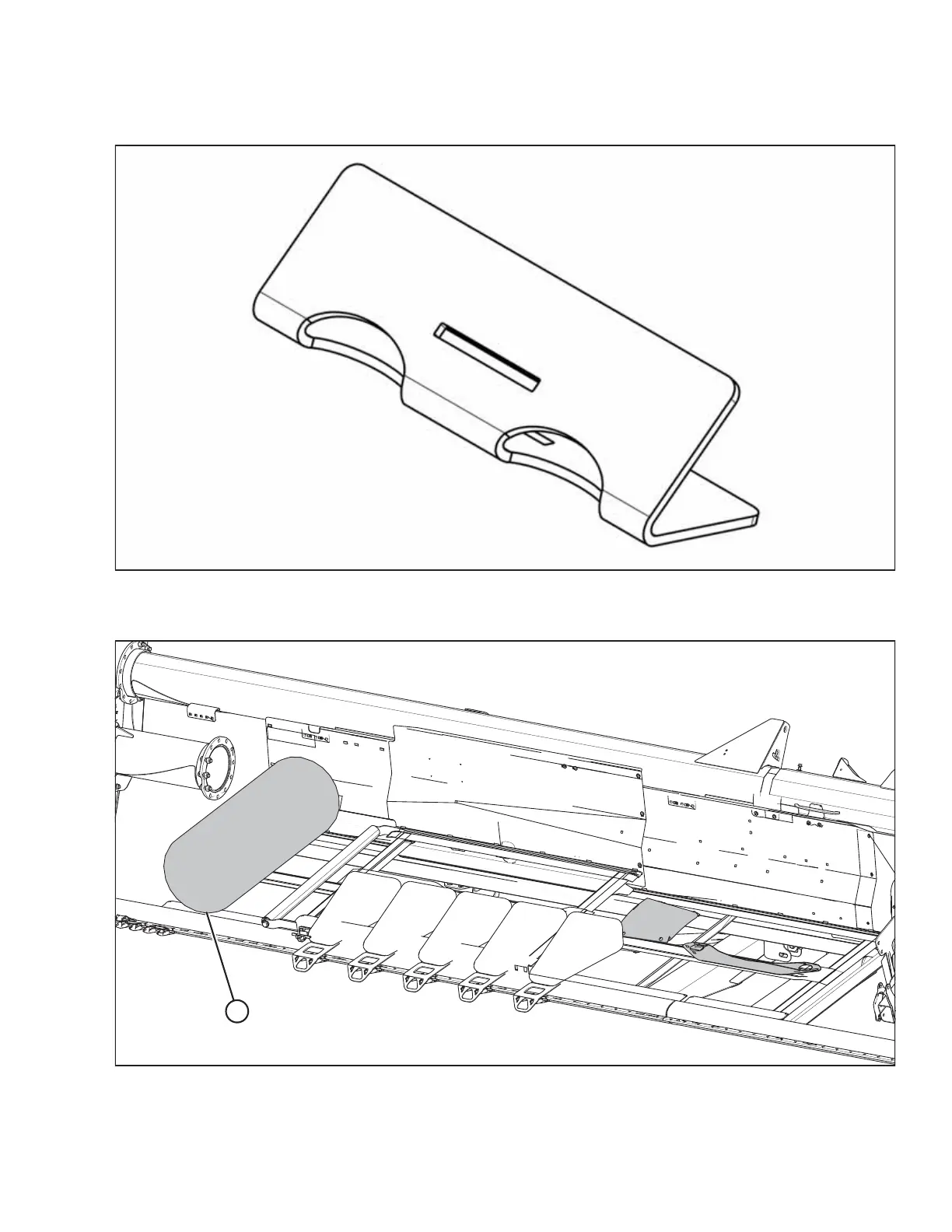

Figure 12.3: Bag B - Transport Parts
1009805
A - 172535 – Angle - Guard Tip Shipping
Figure 12.4: Bag C - Draper
1009807
A
A - 220639 – Draper - 12.2 m (40 ft.) WCCO A - 172197 – Draper - 12.2 m (40 ft.) LEGG
A - 220640 – Draper - 13.7 m (45 ft.) WCCO A - 172198 – Draper - 13.7 m (45 ft.) LEGG
REFERENCE
