MacDon D1 Series - AGCO IDEAL Series Combines; Attaching Header to an AGCO IDEAL Series Combine

215184 213 Revision A
7.2 AGCO IDEAL
™™
Series Combines
7.2.1 Attaching Header to an AGCO IDEAL
™™
Series Combine
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1029522
A
B

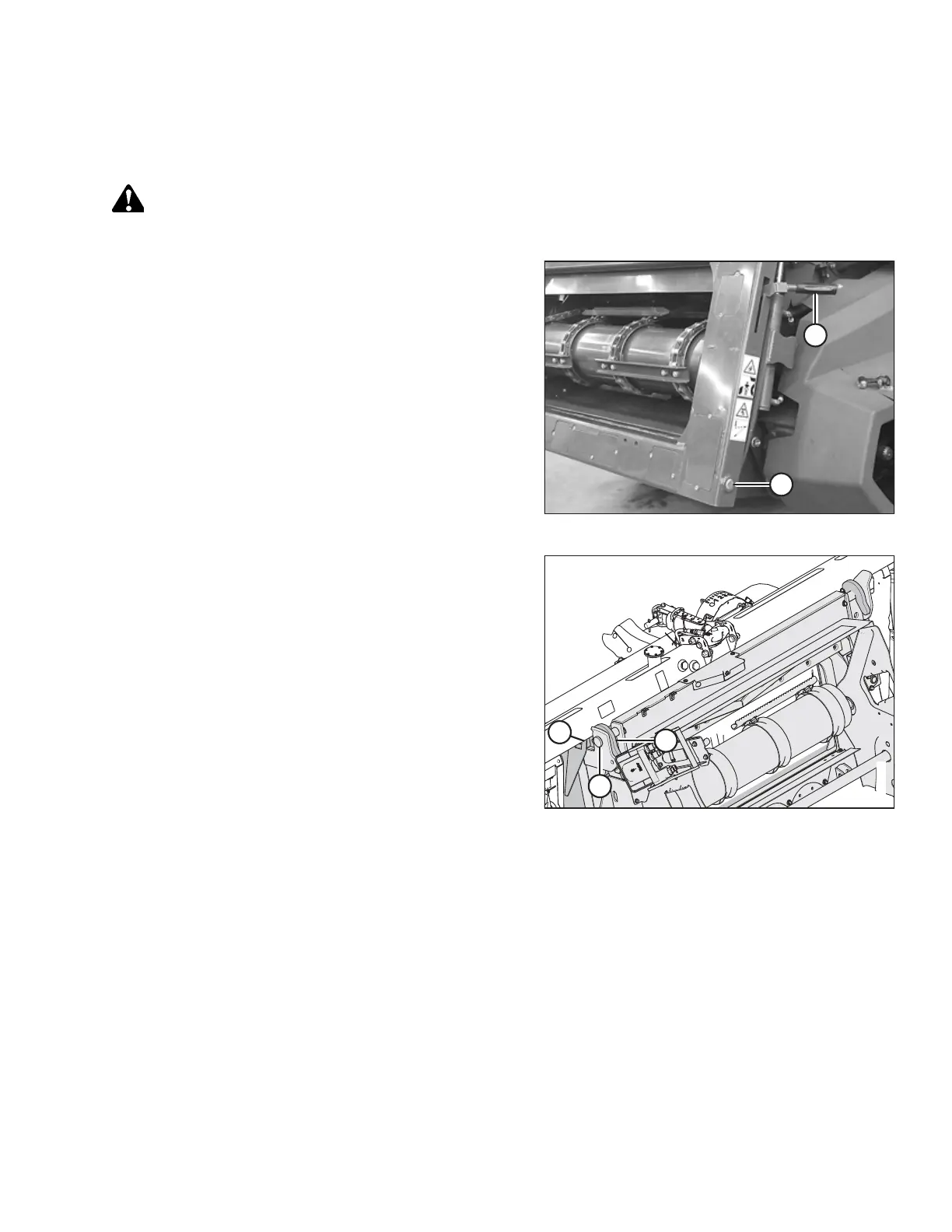

Figure 7.19: Feeder House
1. Pull lever (A) up to retract pins (B) at the bottom left and
right sides of the feeder house.
1029540
A
B
C
Figure 7.20: Feeder House
2. Drive the combine slowly up to the header until the feeder
house is directly under top beam (A), and pins (B) are under
hooks (C) on the transition frame.
ATTACHING HEADER TO COMBINE
