Setting up Header – John Deere S7 Series
NOTE:
Changes may have been made to combine controls or display since this document was published. Refer to combine
operator’s manual for updates.
1022757
A

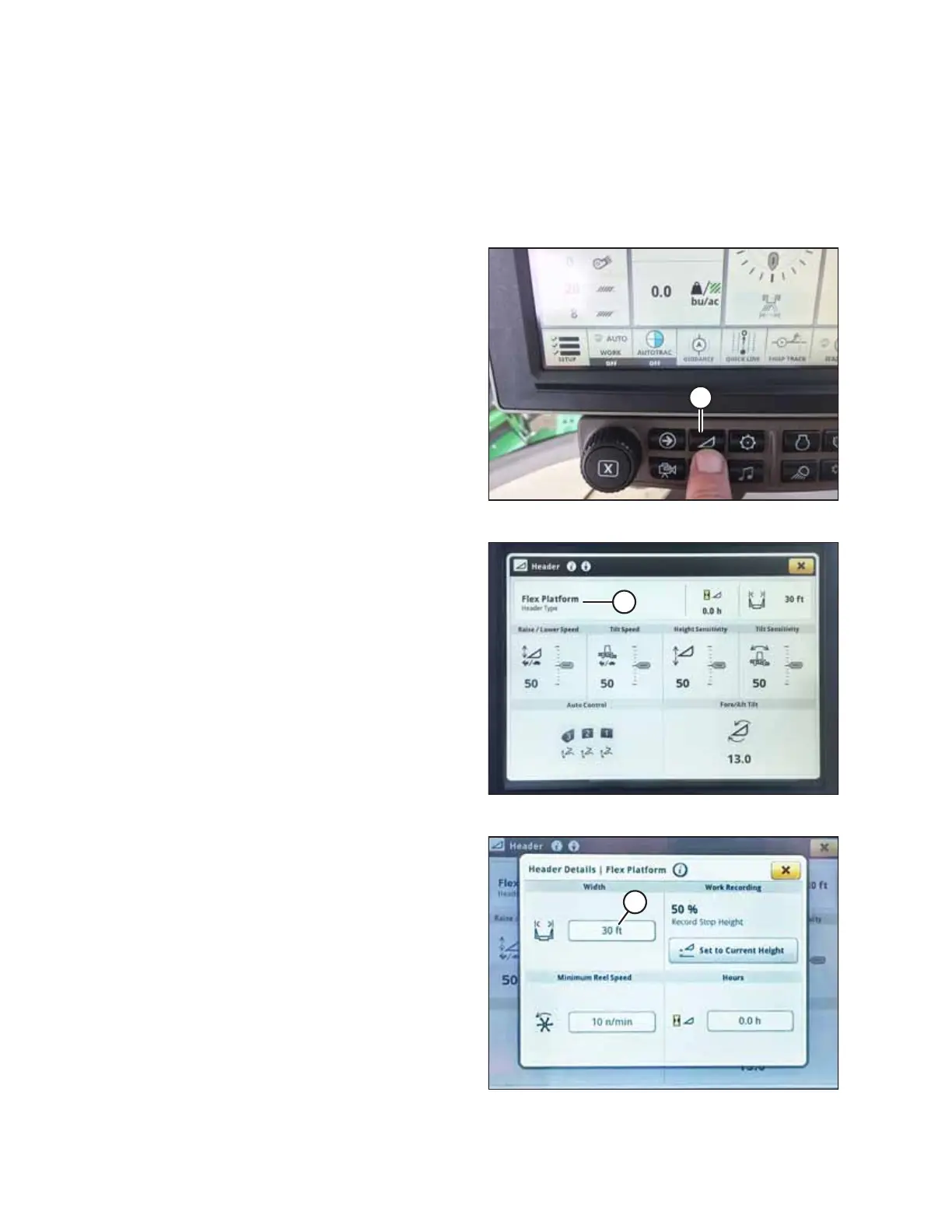

Figure 9.322: John Deere S7 Display
1. Press header button (A) on the panel below the display. The
HEADER page opens.
1022759
A
Figure 9.323: John Deere S7 Display – Header Page
2. Select HEADER TYPE field (A). The HEADER DETAILS
window opens.
1022768
A
Figure 9.324: John Deere S7 Display – Header
Details Window
3. Verify correct header width is displayed under WIDTH.
4. To change header width, select field (A). The WIDTH
window opens.
SETTING UP AUTO HEADER HEIGHT CONTROL
