MacDon D1 Series - 7.6 New Holland Combines; 7.6.1 Attaching Header to New Holland CR;CX Combine

215184 244 Revision A
7.6 New Holland Combines
The D1 Series Draper Header is compatible with the following New Holland combines:
Table 7.3 Header and Combine Compatibility
Series Combine Model
920, 940, 960, 970, 980
CR 9020, 9040, 9060, 9065, 9070, 9080
6090, 7090, 8080, 8090, 9090
6.80, 6.90, 7.90, 8.90, 9.90, 10.90
840, 860, 870, 880
CX
8070, 8080, 8090
8080 Elevation, 8090 Elevation
7.6.1 Attaching Header to New Holland CR/CX Combine
WARNING
To avoid injury or death from unexpected start-up of machine, always stop the engine and remove the key from the
ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from
the ignition.
1004504
A
B

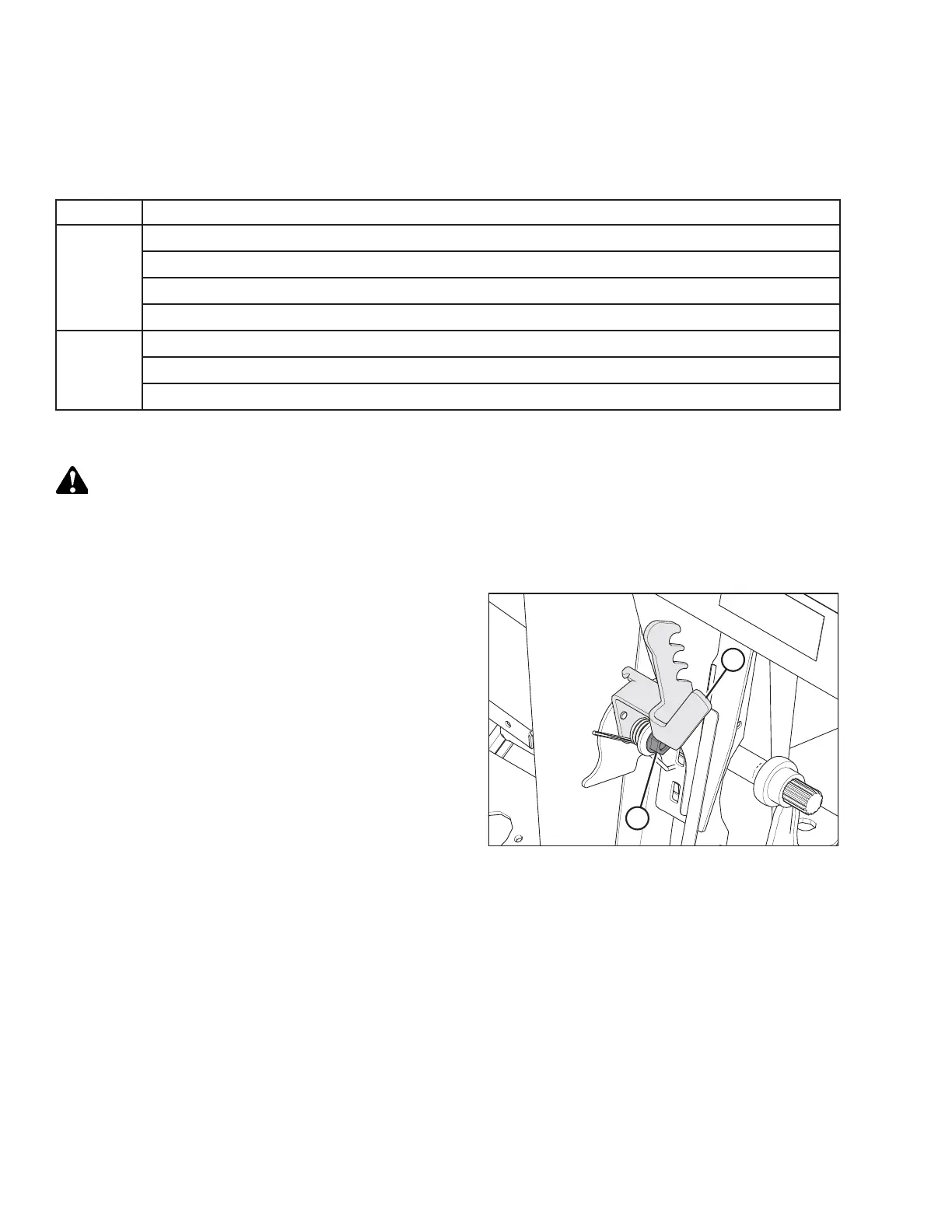

Figure 7.90: Combine Float Module Upper Left Side
2. On the upper left side of the combine float module, remove
nut (A), washer, spring, and lever (B).
ATTACHING HEADER TO COMBINE
