215184 475 Revision A
1016055
A
B

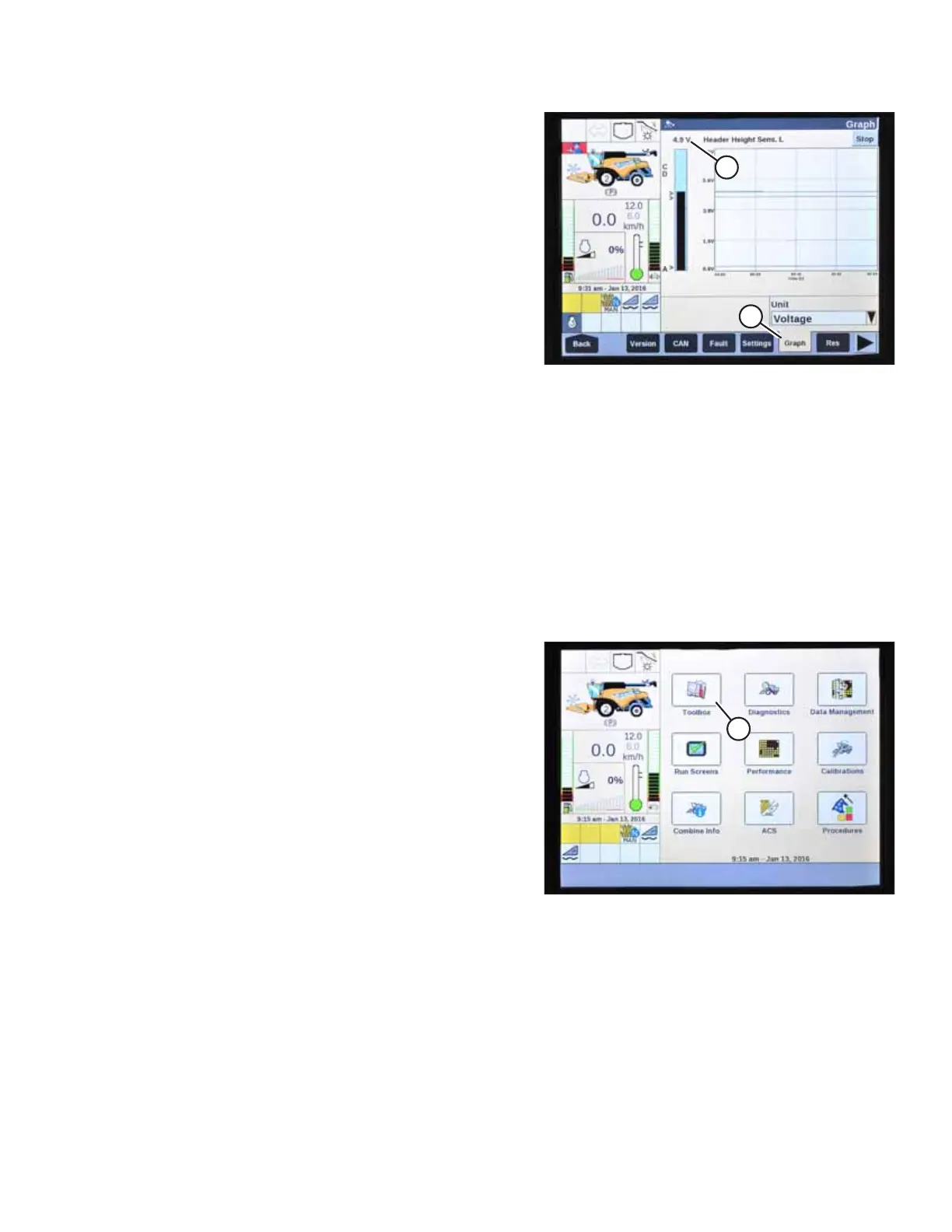

Figure 9.375: New Holland Combine Display
9. Select GRAPH (A). The exact voltage (B) is displayed at the
top of the screen.
10. Raise and lower the header to see the full range of
voltage readings.
11. If the sensor voltage is not within the low and high limits,
or if the range between the low and high limits is
insufficient, adjust the voltage limits. For instructions, refer
to Adjusting Voltage Limits – One-Sensor System, page 314.
Setting up Auto Header Height Control – New Holland CR Series
For best performance of the auto header height control (AHHC), perform these procedures with the center-link set to D.
When setup and calibration are complete, adjust the center-link back to desired header angle.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
NOTE:
This section applies only to 2015 and later CR models (6.80, 6.90, 7.90, 8.90, 9.90, and 10.90). For other pre-2015 New
Holland combine models, refer to 9.1.18 New Holland Combines – CR/CX Series – 2014 and Prior, page 462.
1016056
A
Figure 9.376: New Holland Combine Display
1. Ensure center-link is set to D.
2. Select TOOLBOX (A) on the main screen. The TOOLBOX
screen displays.
SETTING UP AUTO HEADER HEIGHT CONTROL
