MacDon D1 Series - 105136 Screw - Machine; Nut - Flange Lock SM Face DT 0.500-13 UNC GR5

215184 504 Revision A

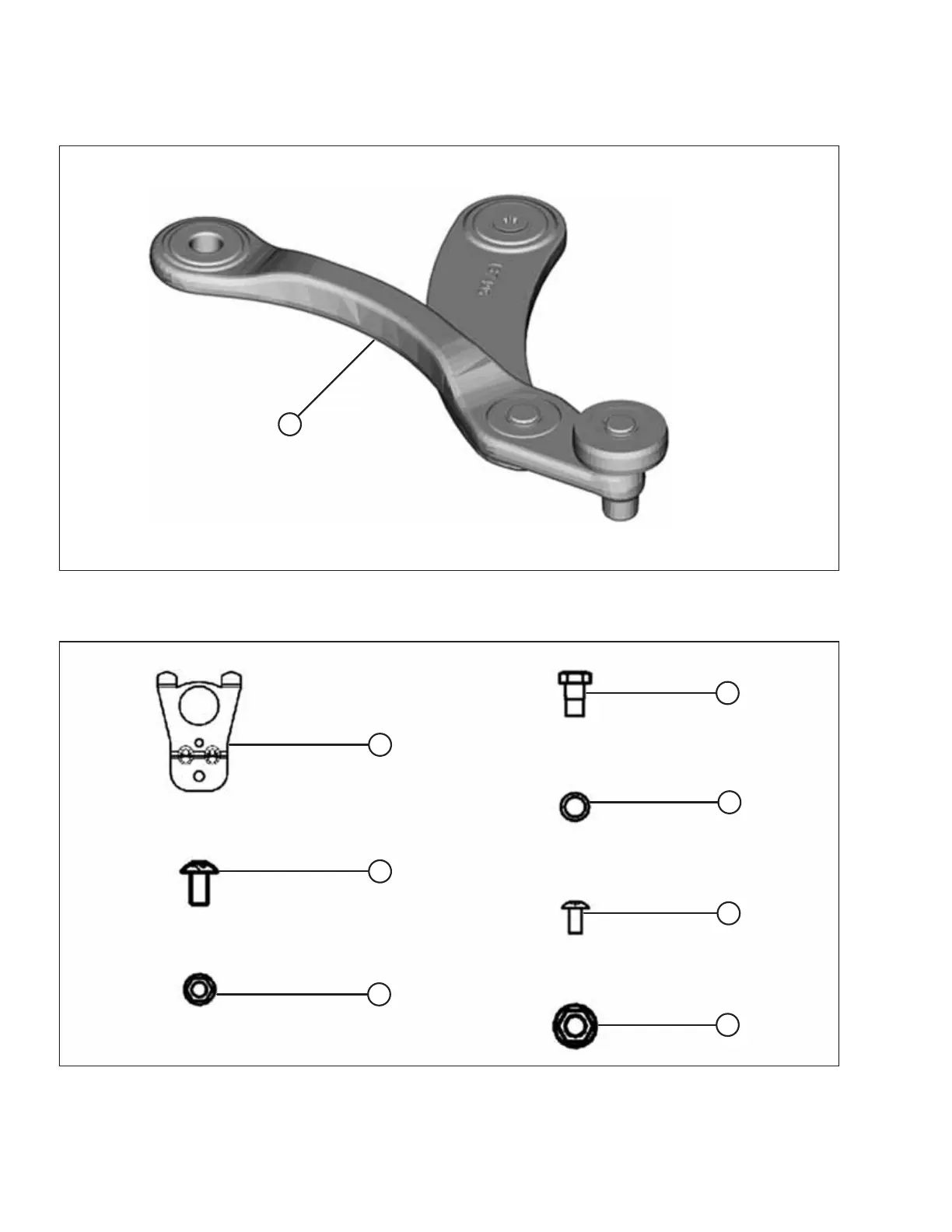

Figure 12.5: Bag D - Linkage Arms
1010301
A
A - 137298 – Arm - Cam Control Linkage Sub-Assy
Figure 12.6: Bag E - Reel Linkage Bolts
1009812
A
B
C
D
E
F
G
A - 164958 – Support - Endshield Reel B - 135157 – Screw - Machine
C - 50186 – Nut - Flange Lock SM Face DT 0.500-13 UNC GR5 D - 105141 – Bolt - Locking Shoulder
E - 137529 – Shim - Crank Bearing F - 105136 – Screw - Machine
G - 50186 – Nut - Flange Lock SM Face DT 0.500-13 UNC GR5
