MacDon D1 Series - Removing Shipping Stands and Supports

215184 23 Revision A
1022073
A
B

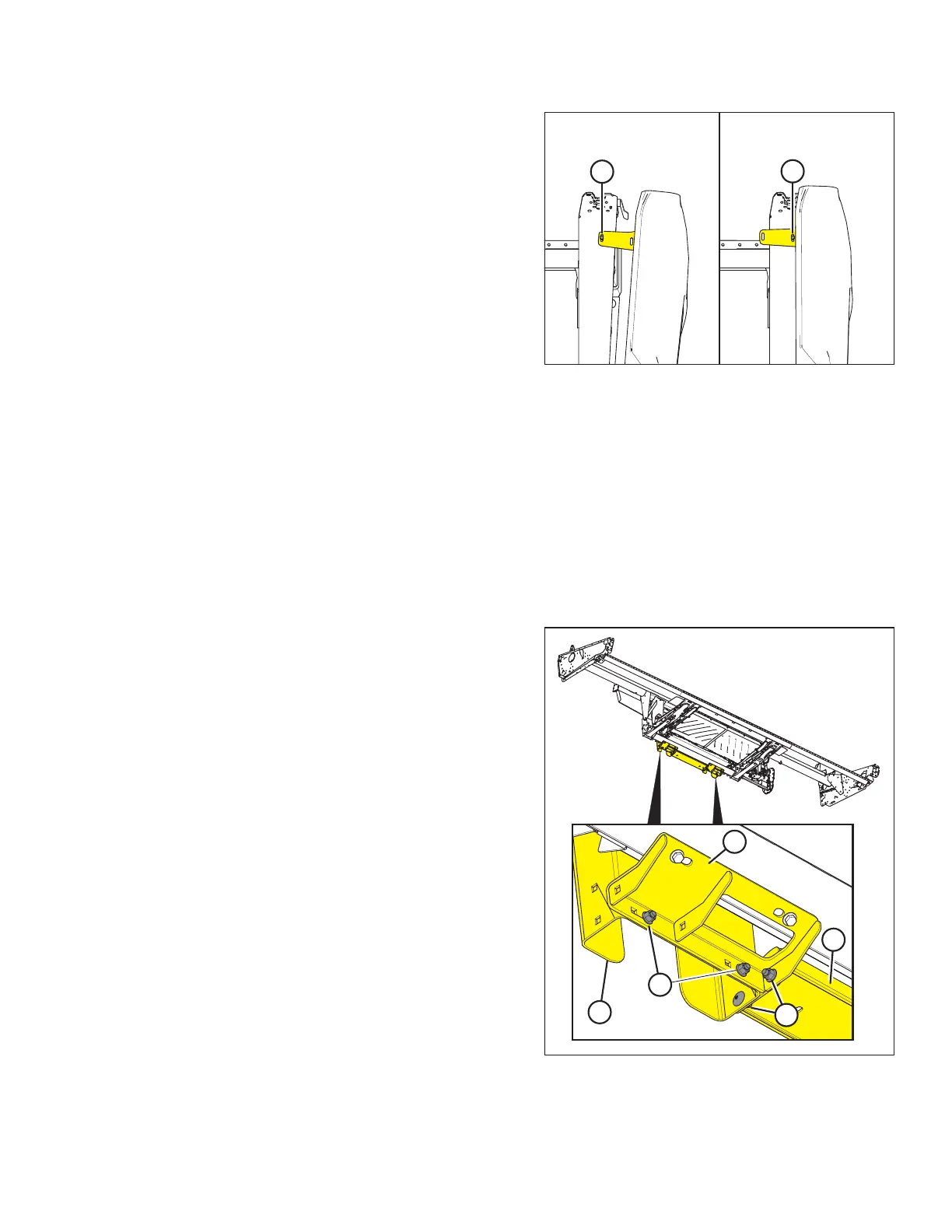

Figure 3.6: Right Endshield Shipping Support – View
from Top
15. Repeat procedure for opposite endshield.
NOTE:
• For single-reel headers, right endshield shipping
support is attached to header at inboard hole (A) with
right endshield in outboard position.
• For double-reel headers, right endshield shipping
support is attached to header at outboard hole (B) with
right endshield in inboard position.
3.1.2 Removing Shipping Stands and Supports
Unless otherwise specified, discard stands, shipping material, and hardware. The removable stands are painted yellow or
unpainted.
IMPORTANT:
If the header is being shipped to a Dealer after assembly, do NOT remove the shipping stands and supports at this time.
Proceed to Step 13, page 26.
Removing shipping stands from the float module
1019679
A
C
D
E
B
Figure 3.7: Shipping Supports
1. Remove two bolts (A) securing right fork channel (B) to
shipping stand (C).
NOTE:
To access the bolts at the lower stand support, the header
must be supported with 150 mm (6 in.) blocks.
2. Remove two bolts (D) securing right fork channel (B) to
lower brace (E).
3. Repeat the steps above for the left side.
ASSEMBLING THE HEADER AND FLOAT MODULE
