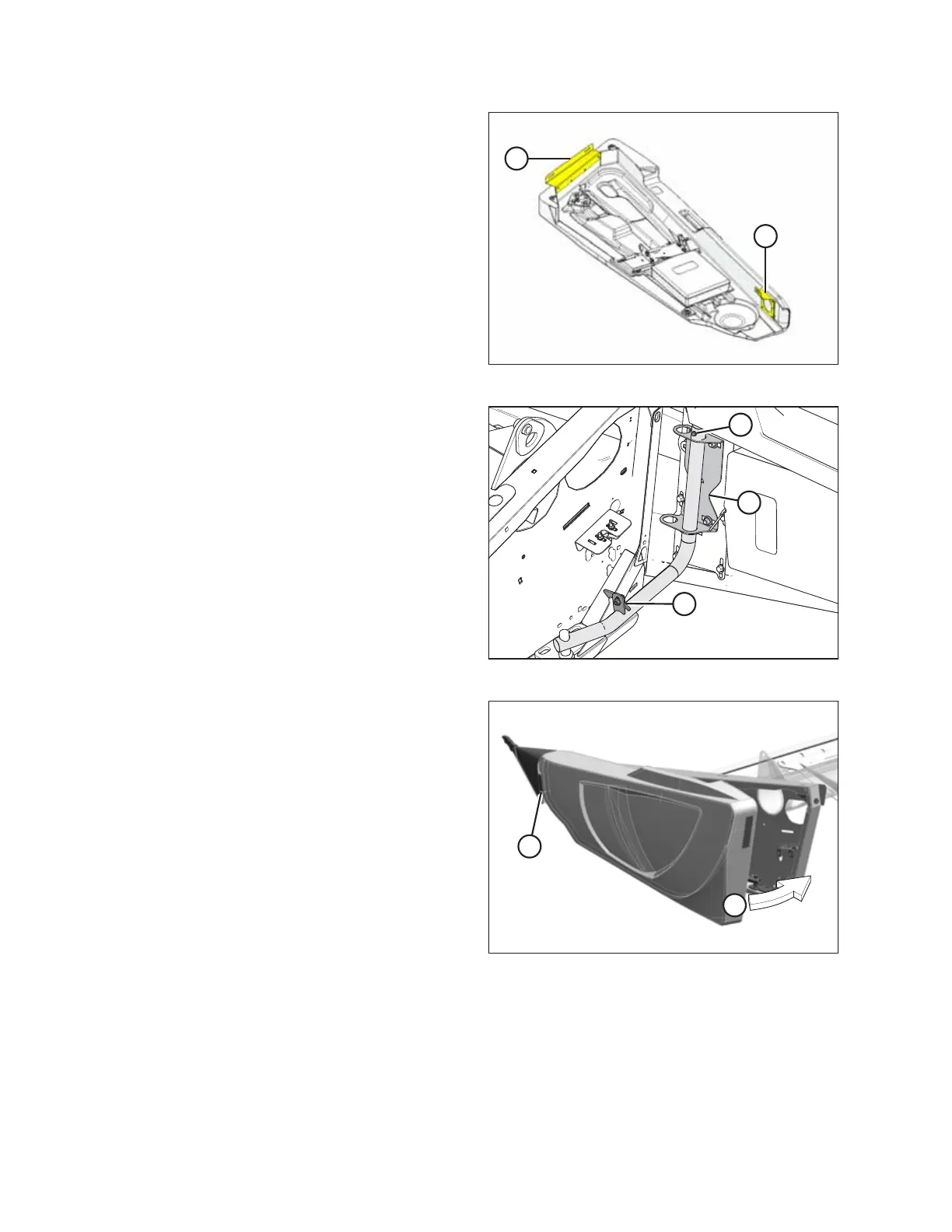

Figure 3.3: Left Endshield
8. Remove fasteners securing shipping brackets (A) to
endshields and remove brackets. Discard fasteners and
brackets.
Figure 3.4: Left Endshield
9. Guide endshield onto hinge arm, using outboard holes
(position 1) on bracket (C). Slowly slide the endshield
downwards.
10. Install self-tapping screw (B).
11. Disengage lock (A) to allow endshield movement.
Figure 3.5: Left Endshield
12. Insert front of endshield behind hinge tab (A).
13. Swing endshield in direction (B) into closed position. Engage
lock with a firm push.
14. Verify that endshield is locked.
