215184 400 Revision A
When SENSITIVITY ADJUSTMENT dial (A) is set to minimum (turned completely counterclockwise), large changes in ground
height are needed to cause the feeder house to raise or lower. In this position, the cutterbar moves up and down
approximately 51 mm (2 in.) before the control module signals the hydraulic control valve to raise or lower the
header frame.
The HEADER SENSE LINE input also changes the range of the sensitivity. When connected to a draper, the counterclockwise
position (least sensitive) allows for approximately 102 mm (4 in.) of vertical travel before correction is made.
Troubleshooting Alarms and Diagnostic Faults – Gleaner R65/R66/R75/R76 and Pre-2016 S Series
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.

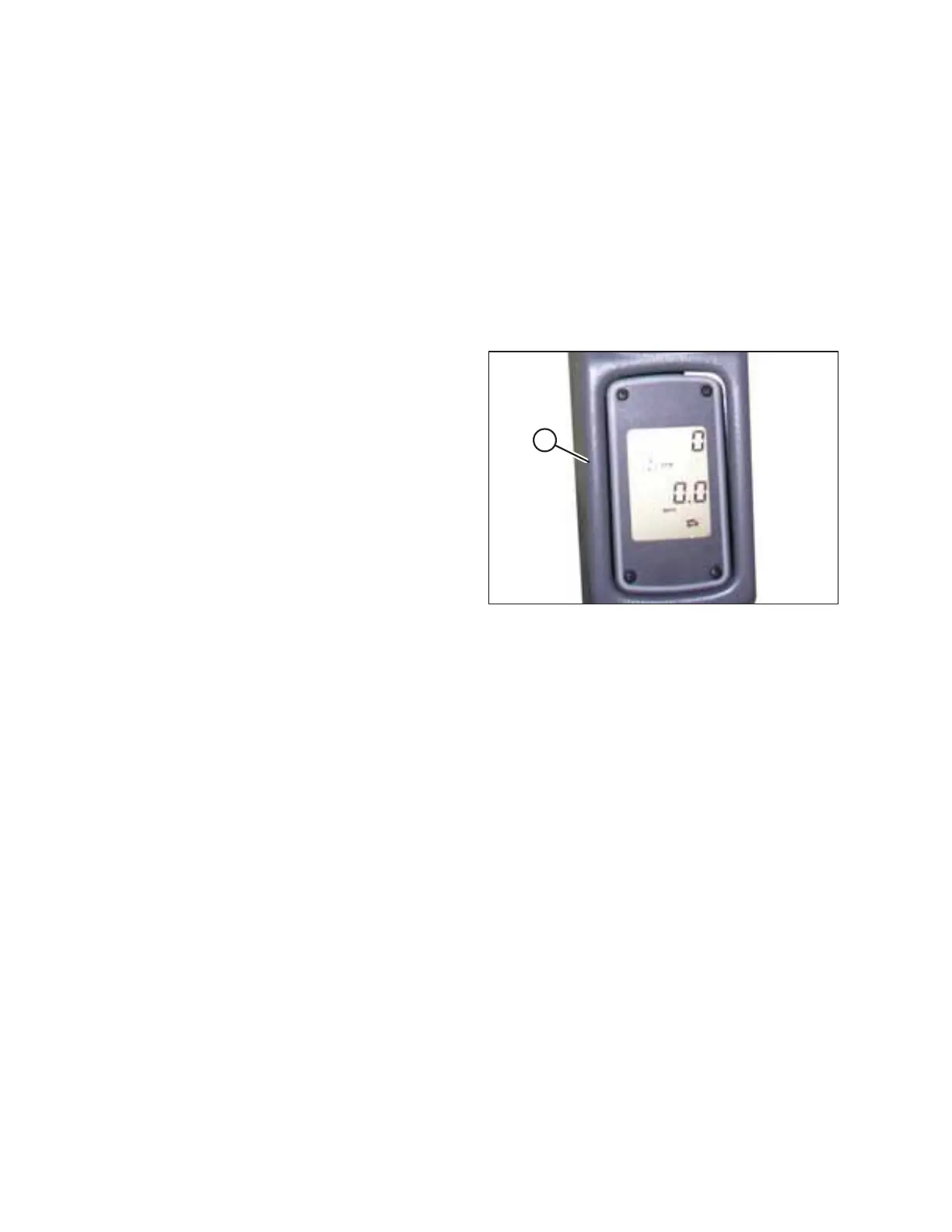

Figure 9.211: Tachometer
Display type:
Displayed on tachometer (A) as XX or XXX.
SETTING UP AUTO HEADER HEIGHT CONTROL
