MacDon D1 Series - Chapter 3: Assembling the Header and Float Module; 3.1 Assembling 6.1-10.7 m (20-35 ft.) Headers

215184 21 Revision A
Chapter 3: Assembling the Header and Float Module
Proceed to the section that matches your header size and complete each step before moving on to the next section:
• 3.1 Assembling 6.1–10.7 m (20–35 ft.) Headers, page 21
• 3.2 Assembling 12.2 m (40 ft) Header (Split Frame), page 40
• 3.3 Assembling 13.7 m (45 ft.) Header (Split Frame), page 86
3.1 Assembling 6.1–10.7 m (20–35 ft.) Headers
3.1.1 Removing Endshields from Shipping Position
1020756
A
C
D
B

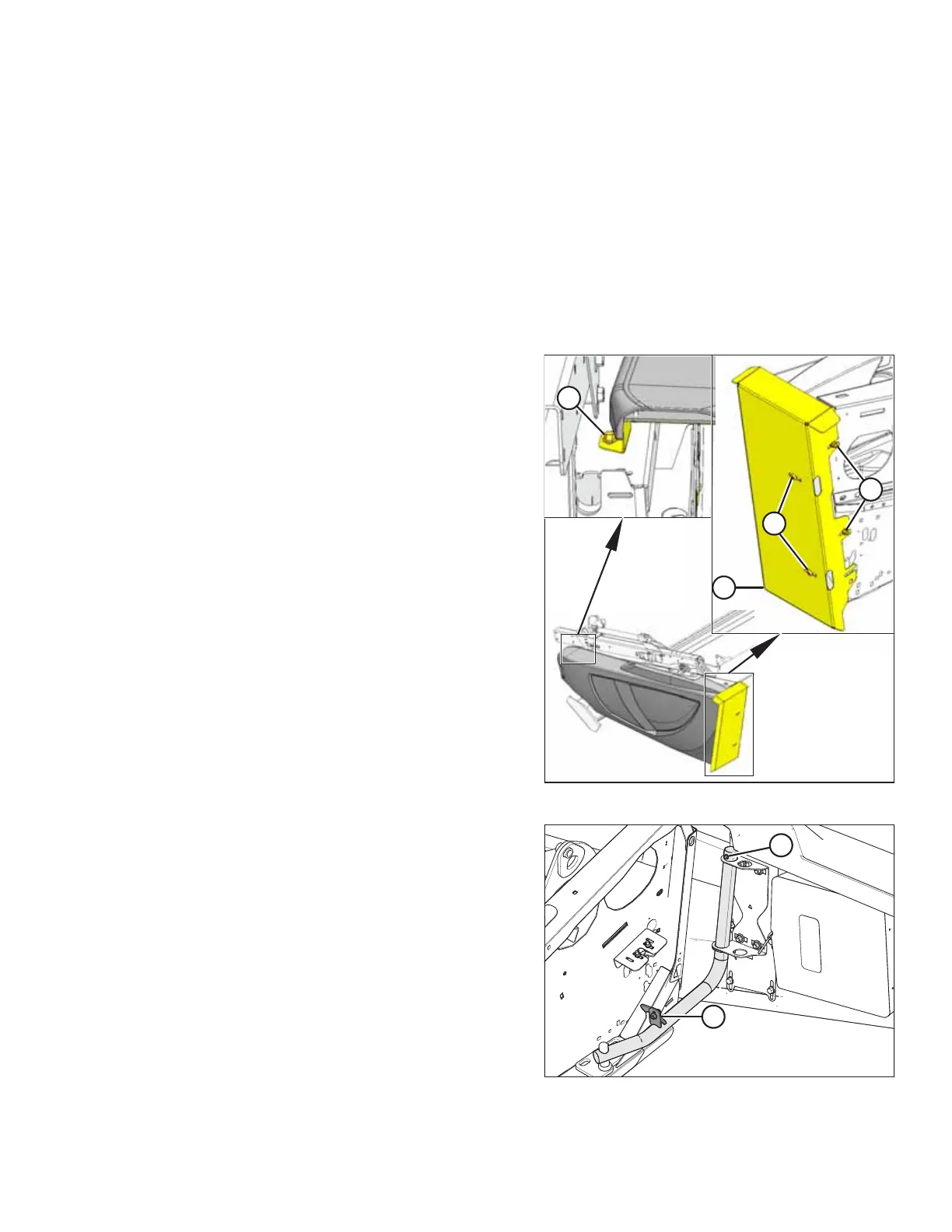

Figure 3.1: Left Endshield
1. Loosen nuts (A) and remove screws (B). Use slots in
shipping channel to access nuts.
2. Remove channel (C).
3. Remove bolt (D) at front of endshield.
1026152
A
B
Figure 3.2: Left Endshield
4. Swivel endshield towards rear of header.
5. Engage lock (A) to prevent endshield movement.
6. Remove self-tapping screw (B).
7. Slide endshield upwards and remove from hinge arm.
NOTE:
The inboard holes (position 2) on the endshield bracket are
used for shipping position.
