MacDon D1 Series - Installing Guards - Single Reel; Installing Formed Hold-Down Clips

215184 140 Revision A
3.6 Installing Guards – Single Reel
Double-Reel Headers: Proceed to 4 Loading Header for Transport to Dealership, page 143.
1014357
A
B

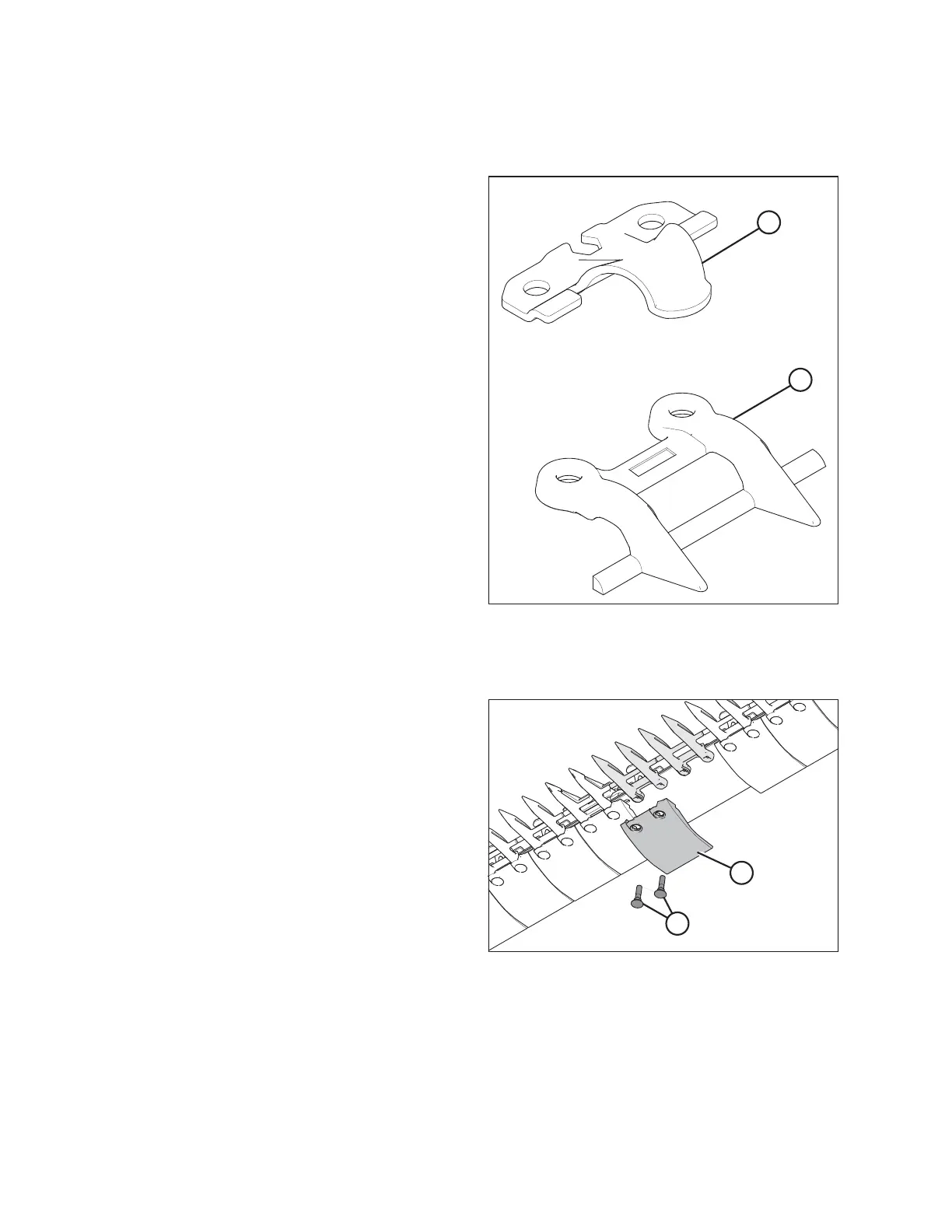

Figure 3.299: Knife Hold-Downs
Single-Reel Headers: Choose between the following procedures
for installing cutterbar components at the center shipping beam
location, depending on whether the header has formed hold-
downs (A) or forged hold-downs (B).
3.6.1 Installing Formed Hold-Down Clips
1014358
A
B
Figure 3.300: Cutterbar Wearplate
1. If equipped, position cutterbar wearplate (A) on the
cutterbar and install with two 7/16 in. x 1-1/2 in. long
carriage bolts (B).
ASSEMBLING THE HEADER AND FLOAT MODULE
