3.4 Attaching Reel Height Sensor
The reel height sensor linkage (located toward the back of the right reel arm) is disconnected to prevent shipping damage.
Reconnect the sensor using the following procedure:
1024752
A

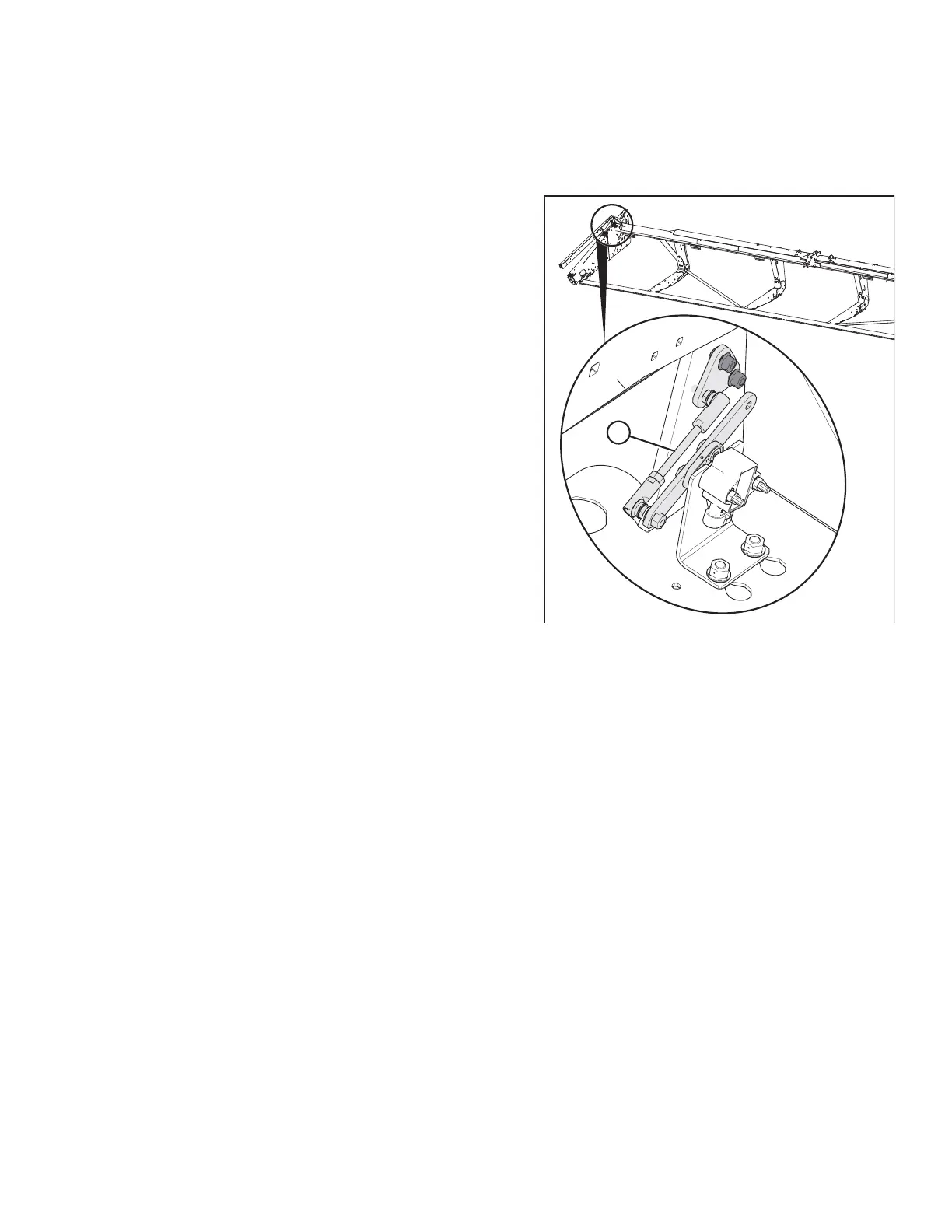

Figure 3.284: Reel Height Sensor – Disconnected
1. Remove the shipping wire from sensor (A).
