9.1.7 Case IH 7010/8010, 120, 230, 240, and 250 Series Combines
Checking Voltage Range from the Combine Cab – Case IH 8010
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
WARNING
Check to be sure all bystanders have cleared the area.
1. Position the header 150 mm (6 in.) above the ground, and unlock the float.
1013274
A

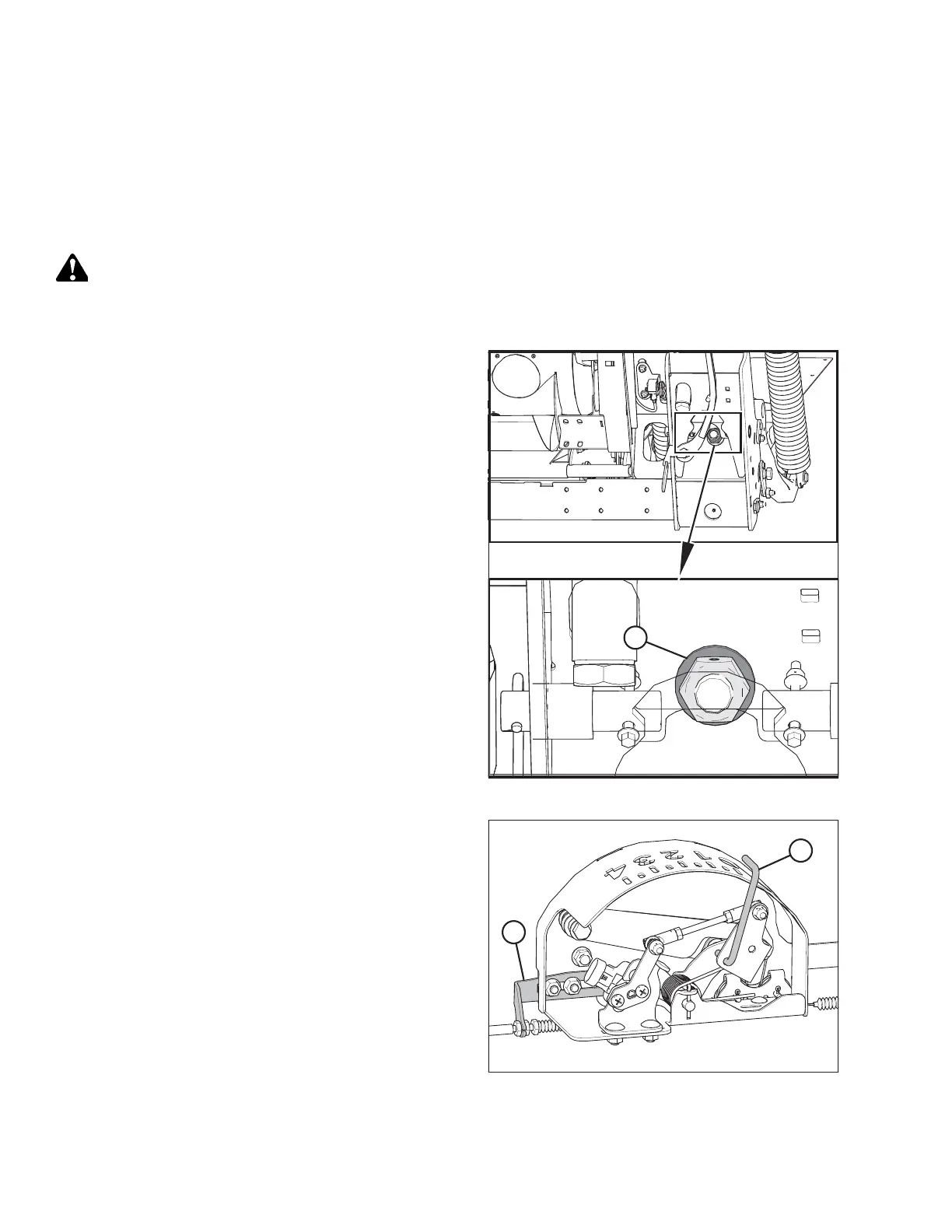

Figure 9.79: Float Lock
2. Check that float lock linkage is on down stops (washer [A]
cannot be moved) at both locations.
NOTE:
If the header is not on down stops during the next two
steps, the voltage may go out of range during operation
causing a malfunction of the AHHC system.
1015833
A
B
Figure 9.80: Float Indicator Box
3. Adjust cable take-up bracket (B) (if necessary) until
pointer (A) on float indicator is on 0.
