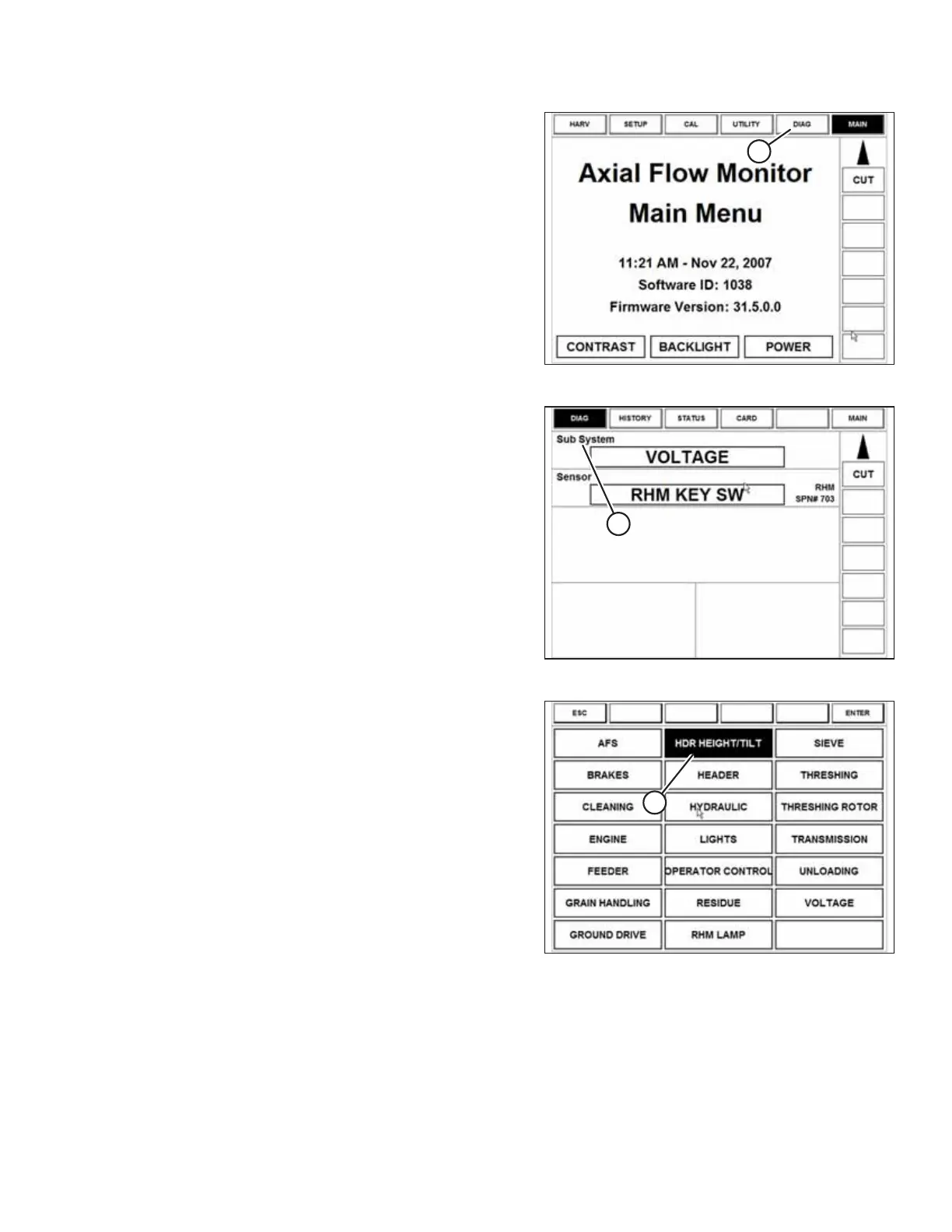

Figure 9.81: Case 8010 Combine Display
4. Ensure header float is unlocked.
5. Select DIAG (A) on the Universal display MAIN screen. The
DIAG screen displays.
1003677
A
Figure 9.82: Case 8010 Combine Display
6. Select SUB SYSTEM (A). The SUB SYSTEM screen displays.
1003678
A
Figure 9.83: Case 8010 Combine Display
7. Select HDR HEIGHT/TILT (A). The SENSOR screen displays.
