MacDon D1 Series - New Holland Combines - CR;CX Series - 2014 and Prior; Checking Voltage Range from the Combine Cab - New Holland CR;CX Series

215184 462 Revision A
9.1.18 New Holland Combines – CR/CX Series – 2014 and Prior
This section applies only to pre-2015 CR/CX models. For New Holland CR models 6.80, 6.90, 7.90, 8.90, 9.90, and 10.90,
refer to 9.1.19 New Holland Combines – CR Series – 2015 and Later, page 472.
Checking Voltage Range from the Combine Cab – New Holland CR/CX Series
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.
NOTE:
For New Holland CR models 6.80, 6.90, 7.90, 8.90, 9.90, and 10.90, refer to 9.1.19 New Holland Combines – CR Series –
2015 and Later, page 472.
WARNING
Check to be sure all bystanders have cleared the area.
1. Position the header 150 mm (6 in.) above the ground, and unlock the float.
1013274
A

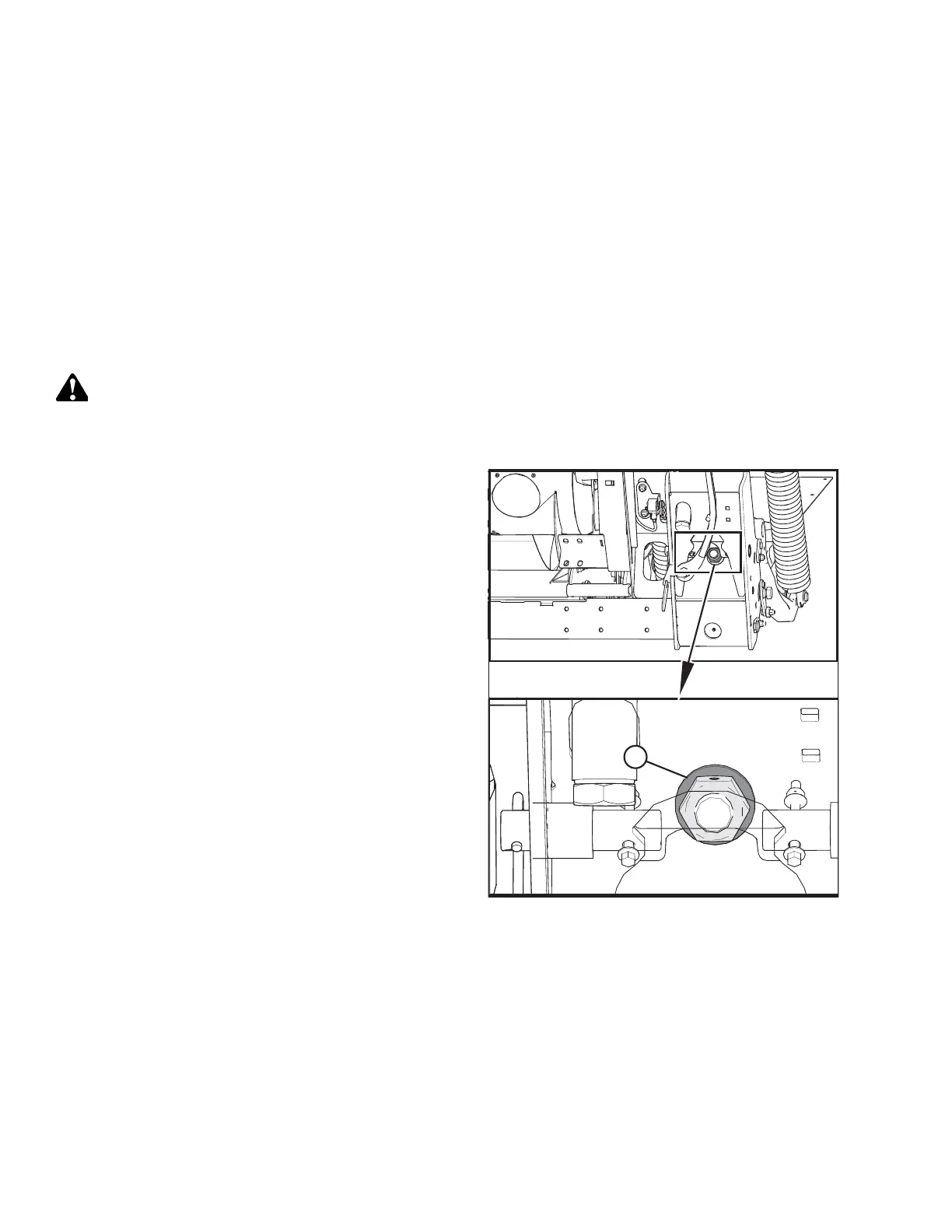

Figure 9.352: Float Lock
2. Check that float lock linkage is on down stops (washer [A]
cannot be moved) at both locations.
NOTE:
If the header is not on down stops during the next two
steps, the voltage may go out of range during operation
causing a malfunction of the AHHC system.
SETTING UP AUTO HEADER HEIGHT CONTROL
