MacDon D1 Series - Completing Header Assembly; Positioning Transport Lights

215184 249 Revision A
7.7 Completing Header Assembly
7.7.1 Positioning Transport Lights
Transport lights are located on each outboard reel arm. They are shipped in an inverted position on the inboard sides of
the reel arms.
1031446
A
B

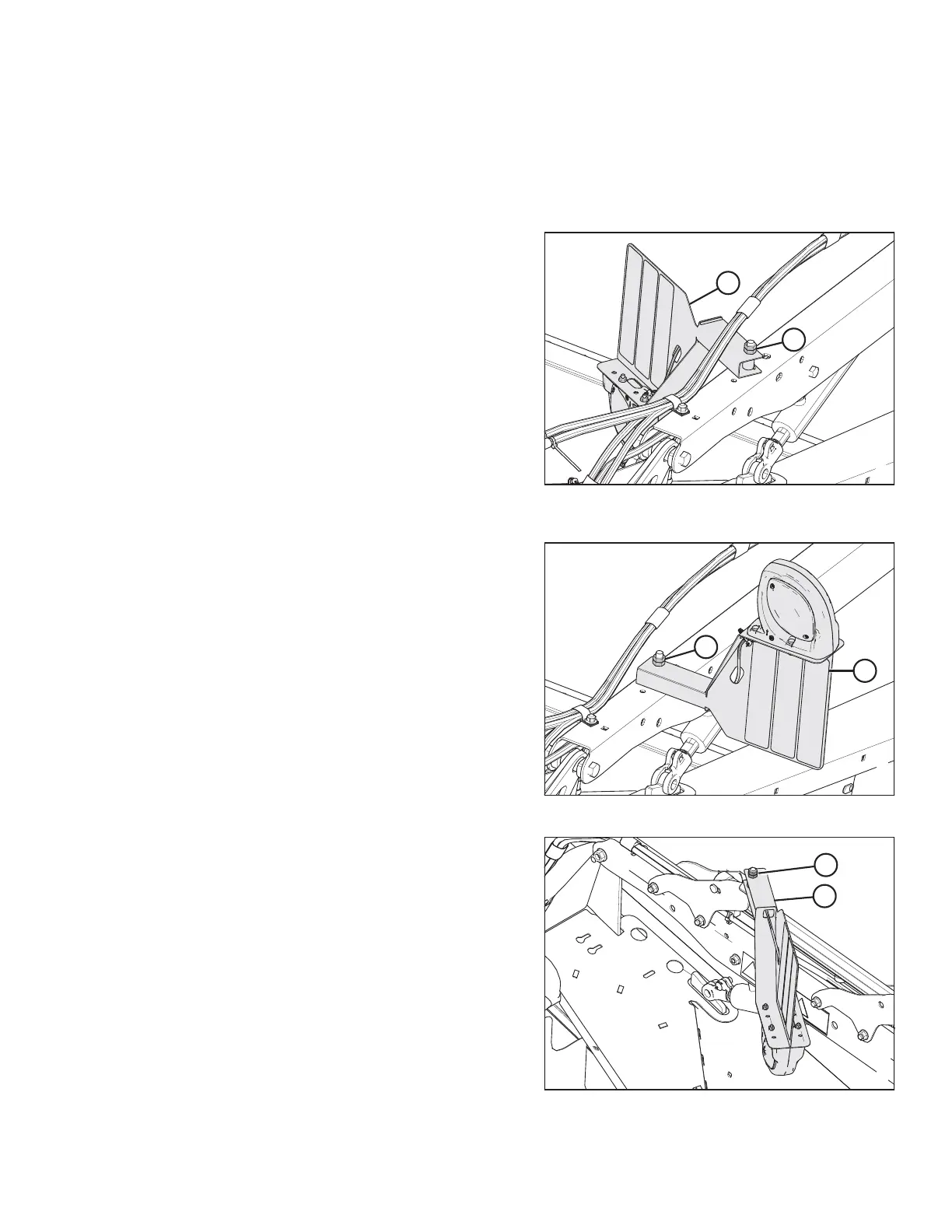

Figure 7.102: Right Light Assembly in Shipping
Position
1. Remove lock nuts (B) holding right light assembly (A) to the
reel arm and remove the light assembly. Retain the
lock nuts.
1031447
A
B
Figure 7.103: Right Transport Light
2. Position right light assembly (A) perpendicular to the right
reel arm and attach it using retained lock nuts (B).
NOTE:
The light assembly should rotate with normal hand force
yet maintain its position.
1031820
A
B
Figure 7.104: Left Light Assembly in Shipping Position
3. Remove lock nuts (A) holding left light assembly (B) to the
reel arm and remove the light assembly. Retain lock nuts.
