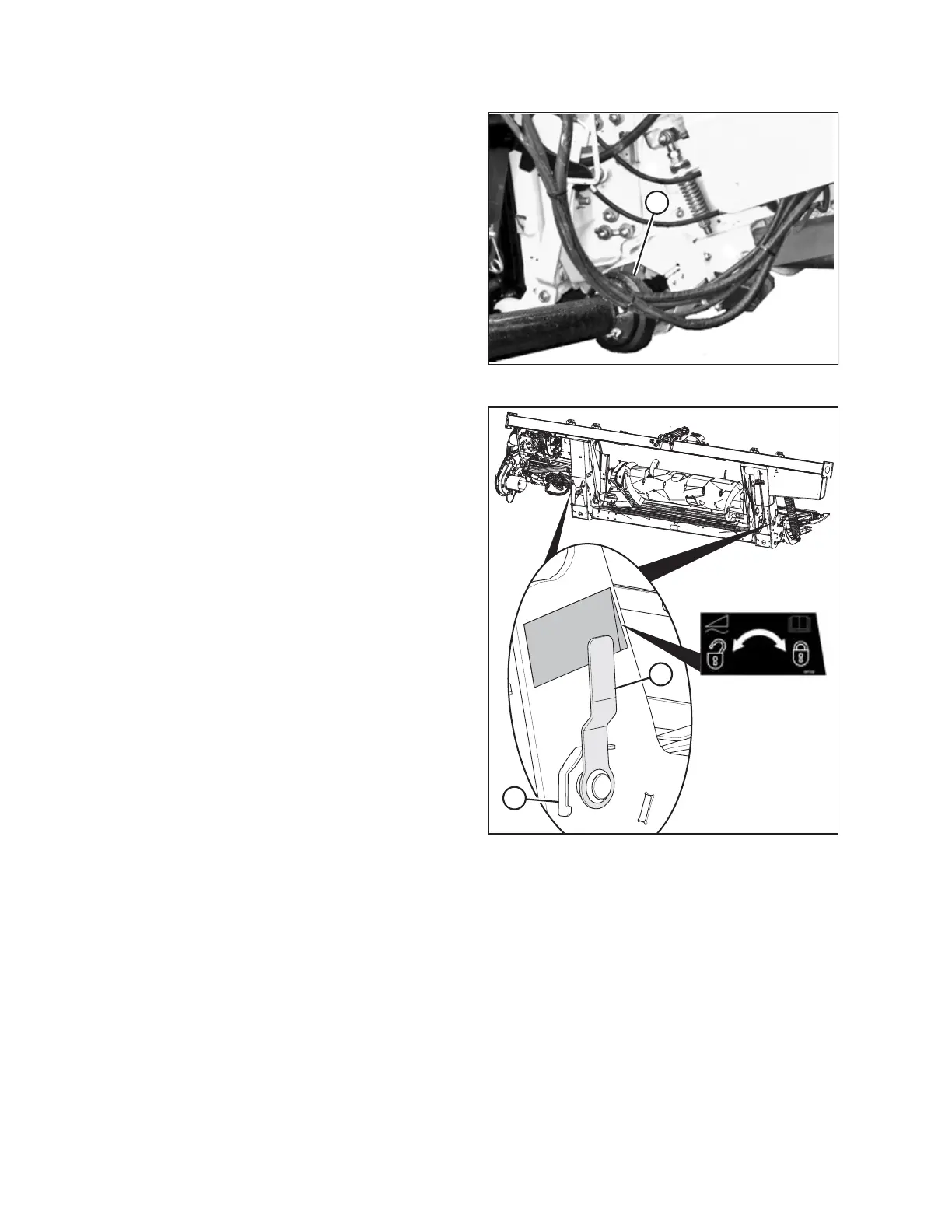

Figure 7.100: Driveline and Output Shaft
23. Pull back the collar on the end of the driveline, and push
the driveline onto combine output shaft (A) until the
collar locks.
Figure 7.101: Float Lock Handle
24. Disengage the float locks by pulling each float lock
handle (A) away from the float module and setting it in
unlocked position (B).
NOTE:
Illustration at right shows the right side of the header. Float
lock on left side of header opposite.
25. Proceed to 7.7 Completing Header Assembly, page 249.
